51 43 080 Removing and installing/replacing deflector for roofliner
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove convertible top compartment base . See 54 31 175 REMOVING AND INSTALLING/REPLACING CONVERTIBLE TOP COMPARTMENT FLOOR .
- Remove Trim Behind Rollover Bar on left and right.

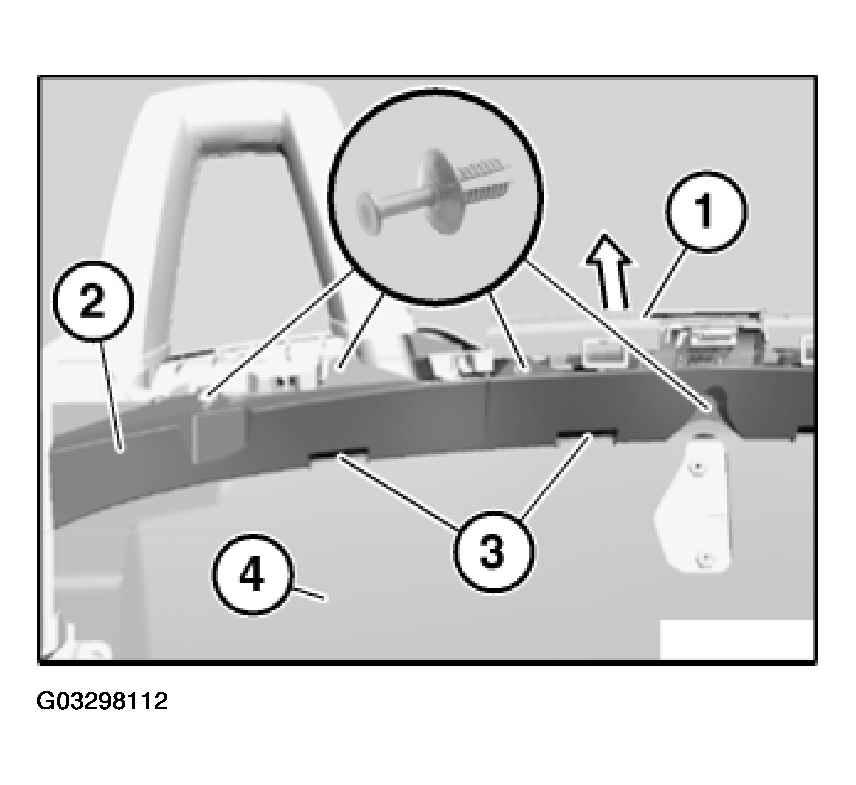

Raise trim (1) for rear storage box slightly.
Release clips from deflector (2).
Lift deflector (2) out of tabs (3) of partition (4).
Installation:
Make sure deflector (2) is correctly seated in tabs (3).
