36 10 300 Removing or installing front or rear wheel
Special Tools Required:
- 36 1 250
- 36 1 300
Observe the following in order to avoid positioning errors and imbalance:
- Loosen wheel bolts.

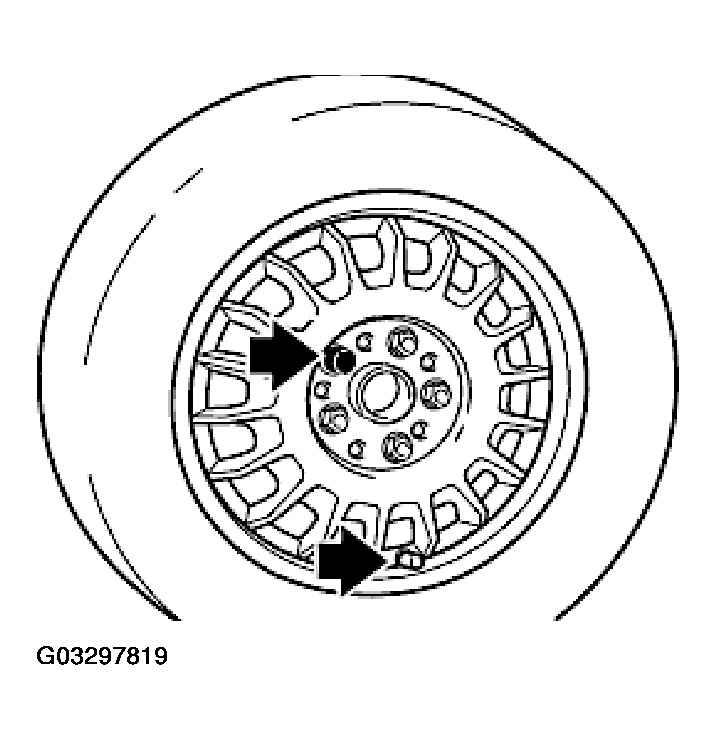

- Wheel positioned with valve facing down.
- If several wheels are removed at the same time, mark the installation location of the wheels on the tires (e.g. with chalk).
- Mark out wheel to wheel hub.
- Mark out lockable wheel bolt in relation to wheel.
- Release wheel bolts and remove wheel.
Follow instructions on initializing Run Flat Indicator (RPA). See owner's manual.

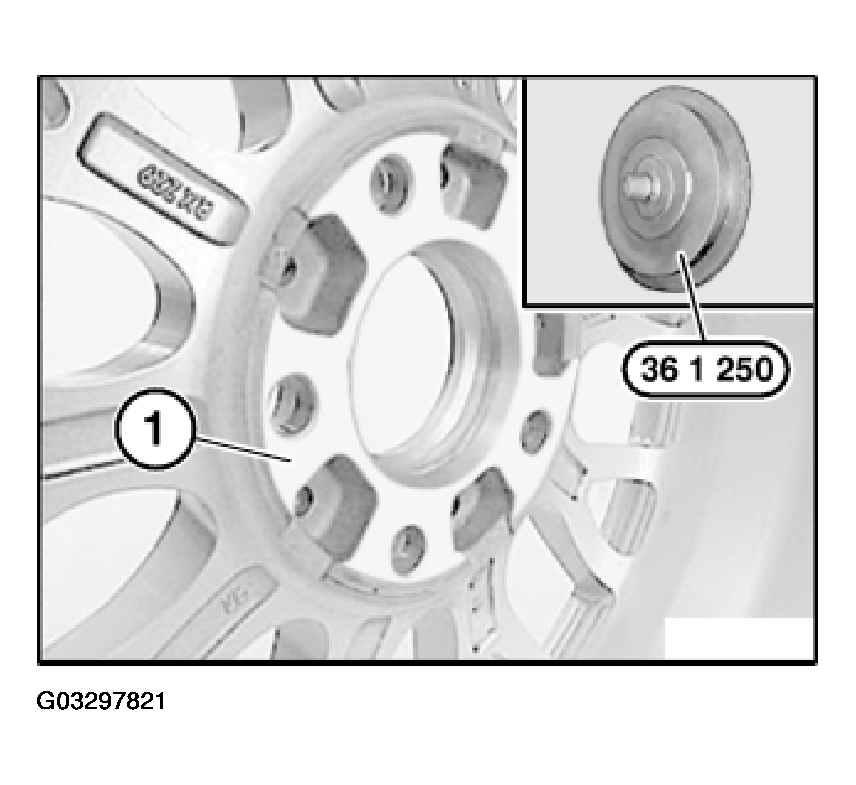

Remove dirt, grease residues and corrosion from contact face (1) with a drill and special tool 36 1 250.

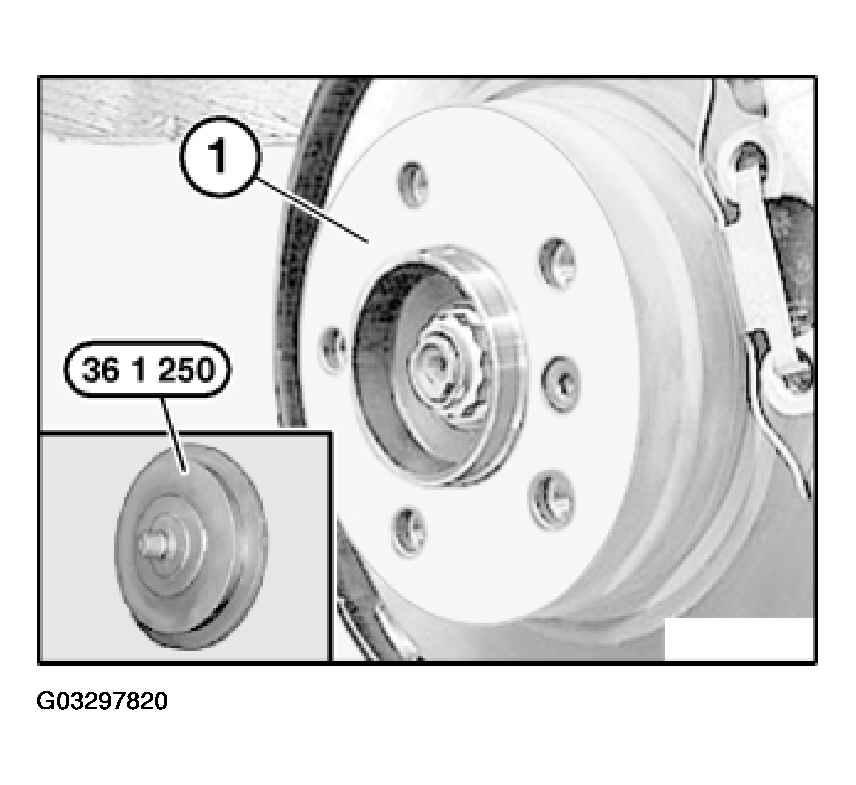

Remove dirt, grease residues and corrosion from contact face (1) with a drill and special tool 36 1 250.

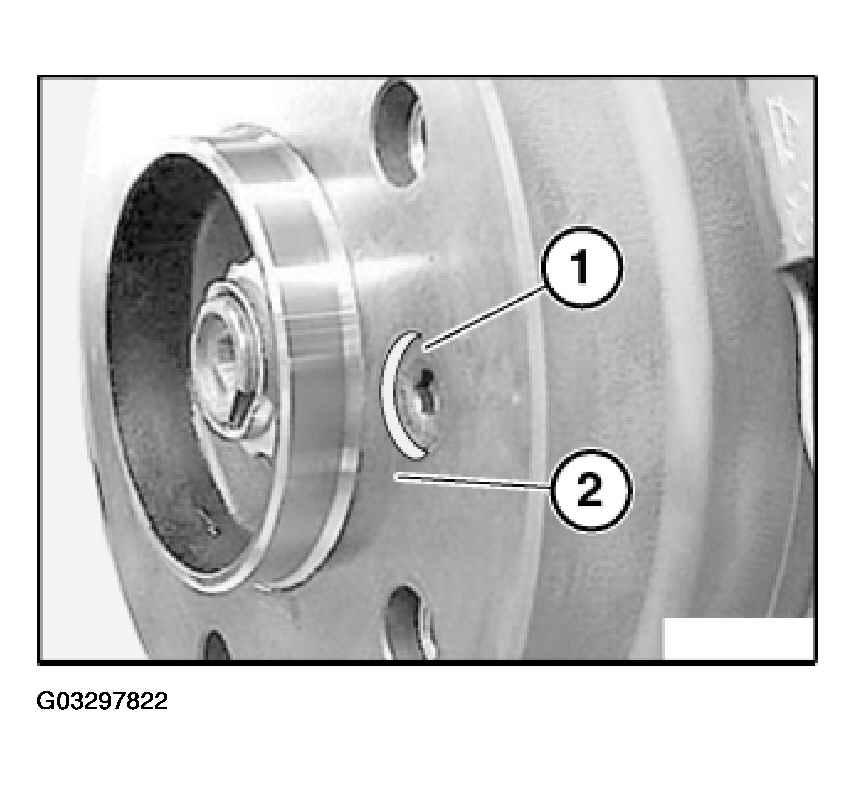

Check brake disk retaining bolt (1) for secure seating.
Tightening torque for brake disk retaining screw, see 34 11 1AZ (front axle), or 34 21 1AZ (rear axle) in BRAKES - TIGHTENING TORQUES .

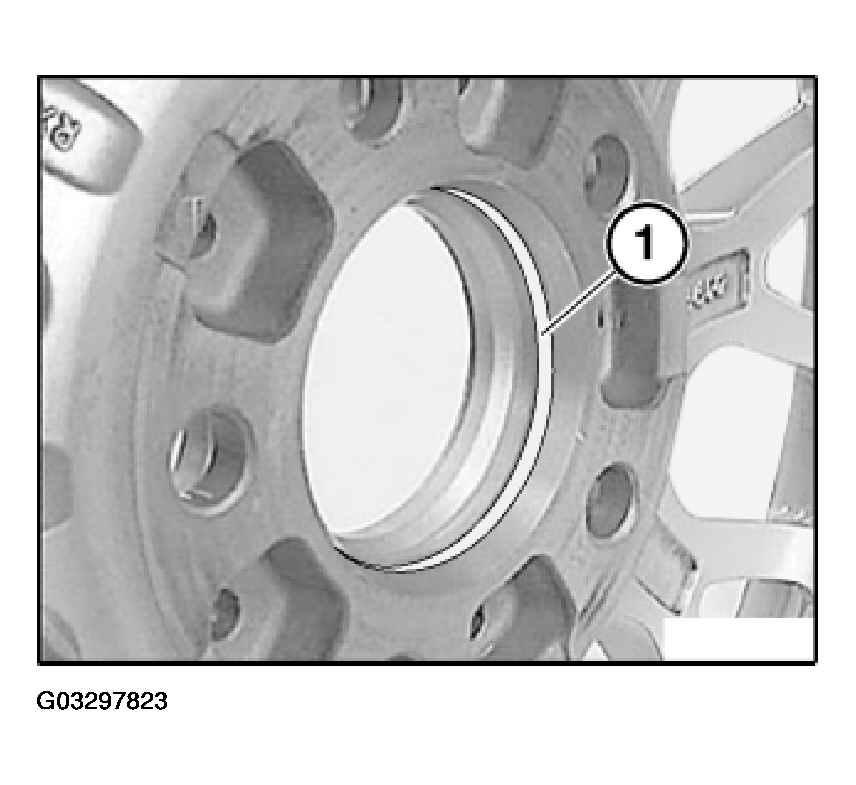

Apply a thin coat of grease to wheel centering (1) in disk wheel.

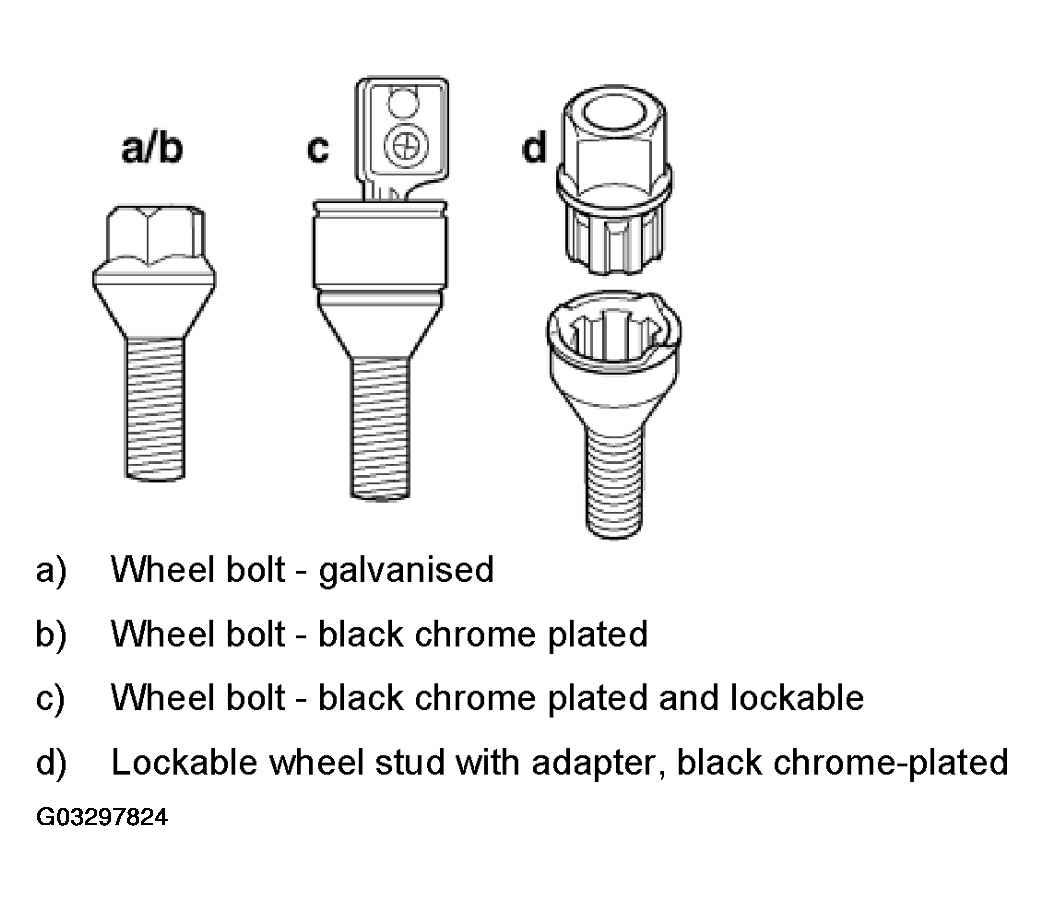

Wheel studs with taper:
- Wheel bolt - galvanized
- Wheel bolt - black chrome plated
- Wheel bolt - black chrome plated and lockable
- Lockable wheel stud with adapter, black chrome-plated
Clean wheel bolts and check threads for damage, replace, if necessary.
Replace rusty wheel bolts.
In the case of used wheel bolts, apply an extremely thin coating of engine oil to the threads and tapers before reinstalling them.
Screw in wheel studs and, to center disk wheel, tighten down by hand diagonally and evenly.

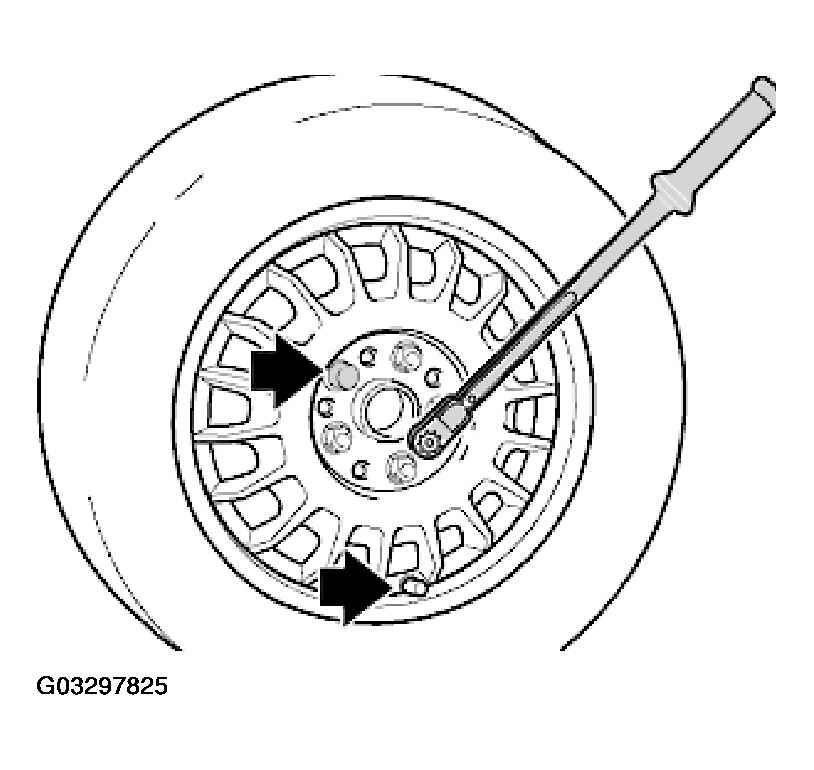

Using torque wrench, firmly tighten wheel studs in diagonal and even sequence.
Tightening torque, see 36 10 1AZ in WHEEL AND TIRES - TIGHTENING TORQUES
