11 53 000 Removing and installing/replacing coolant thermostat (M54)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove radiator cover . See RADIATOR COVER .
Remove fan cowl . See FAN COWL .
Drain off and top up coolant . See 17 00 005 DRAINING OFF AND TOPPING UP COOLANT .

Illustrations show E46.

Pull locks and disconnect water hoses.

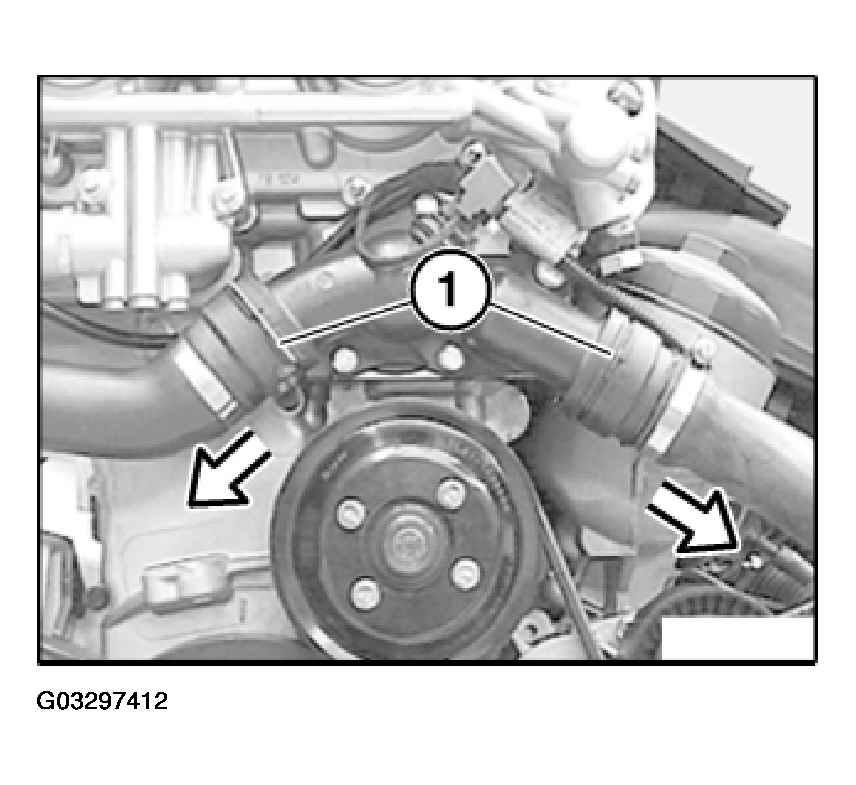

Fig 1: Disconnecting Water Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (1).

Release screws on thermostat housing, remove thermostat housing.

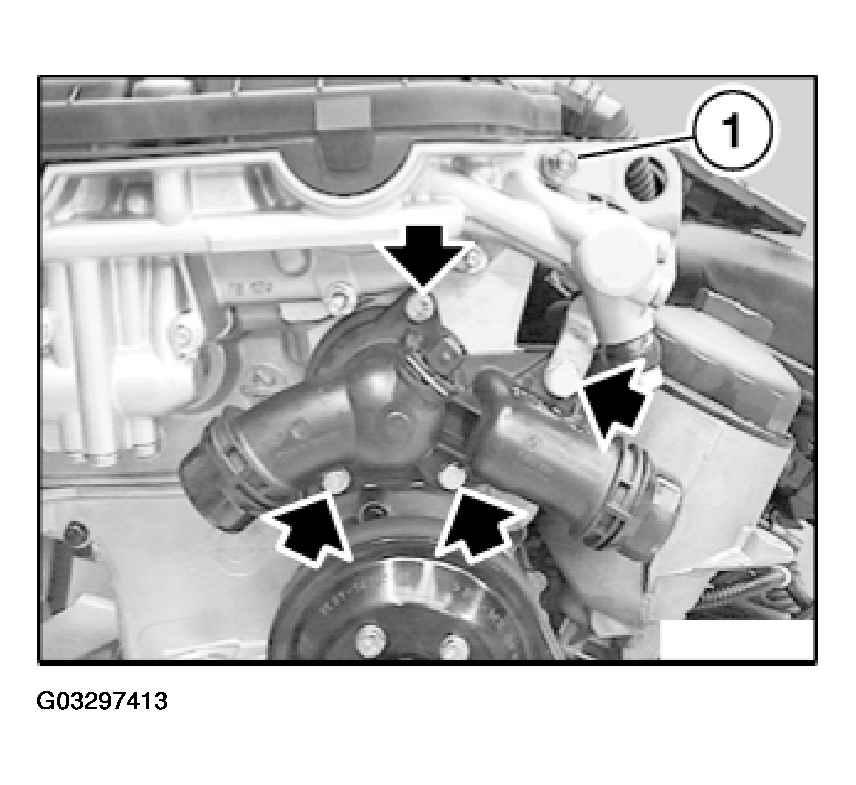

Fig 2: Removing Thermostat Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep sealing faces clean and free of oil.

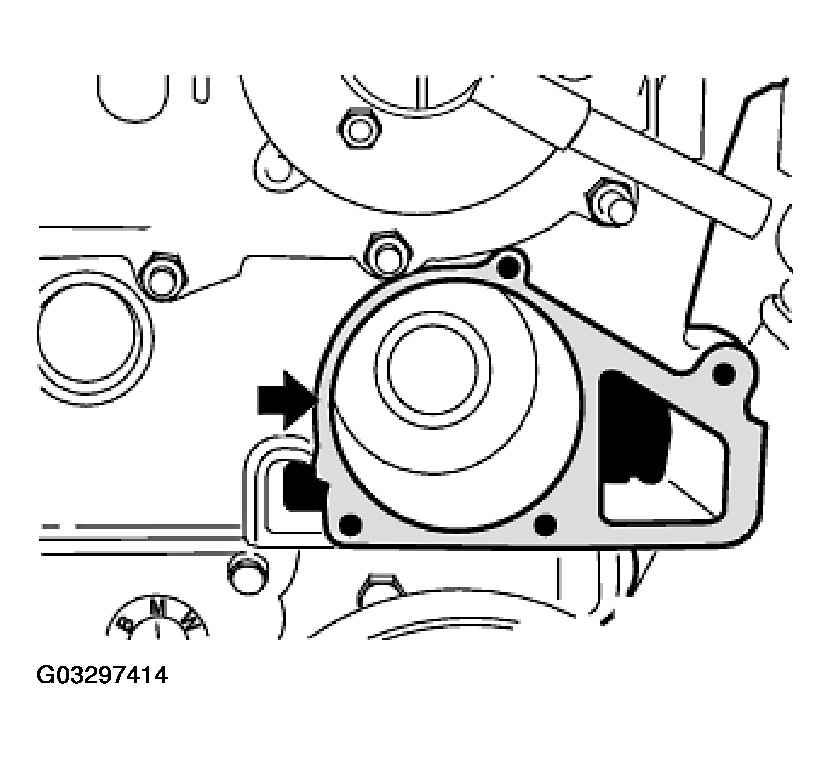

Fig 3: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The coolant thermostat is integrated in the coolant thermostat housing and can only be replaced as a complete unit.

Installation:

Replace gasket (1).

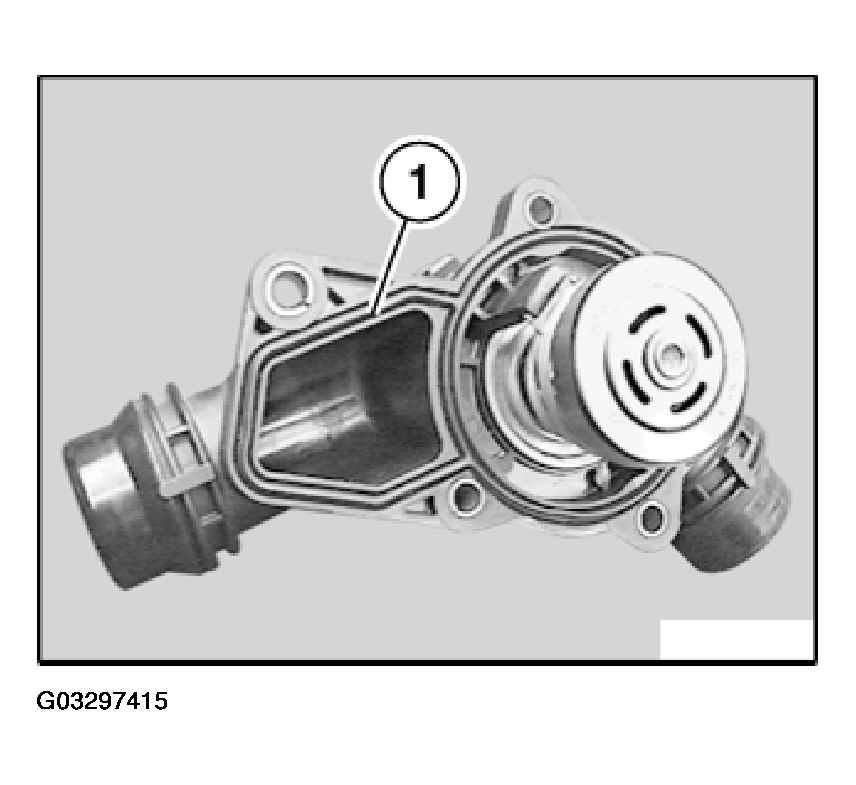

Fig 4: Replacing Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
