11 13 000 Removing and installing, sealing or replacing oil sump (M54)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove intake filter housing .

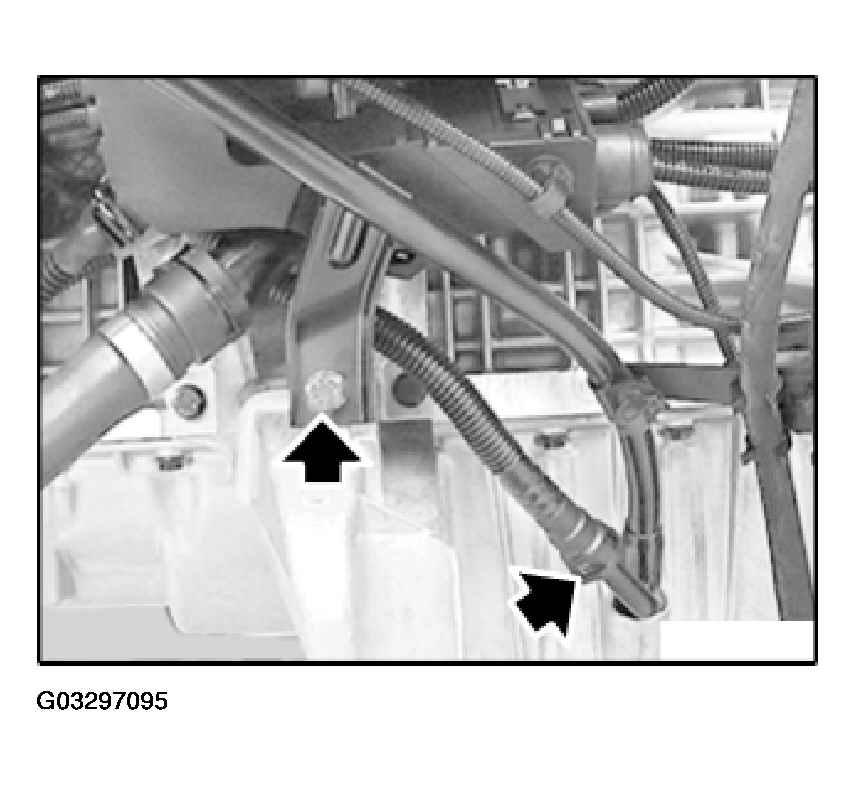

Remove guide tube for oil dipstick . See Figure.
Lowering front axle support .
Drain off engine oil .
Disconnect plug connection to oil level sensor.

On vehicles with automatic transmission:

Detach oil lines from automatic transmission and from oil pan.

Unfasten oil pan screws at transmission and engine ends.

Lower and remove oil pan.

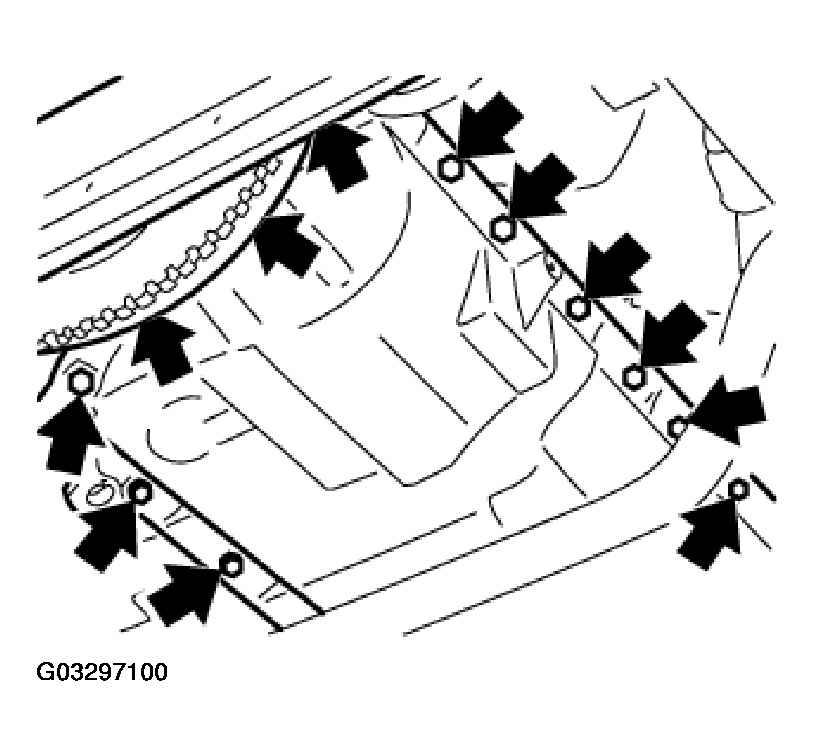

Fig 1: Removing Oil Pan Screws At Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing faces clean and free of seal debris.

Apply approx. 3 mm wide, 2 mm high coat of Drei Bond to the area around seams.

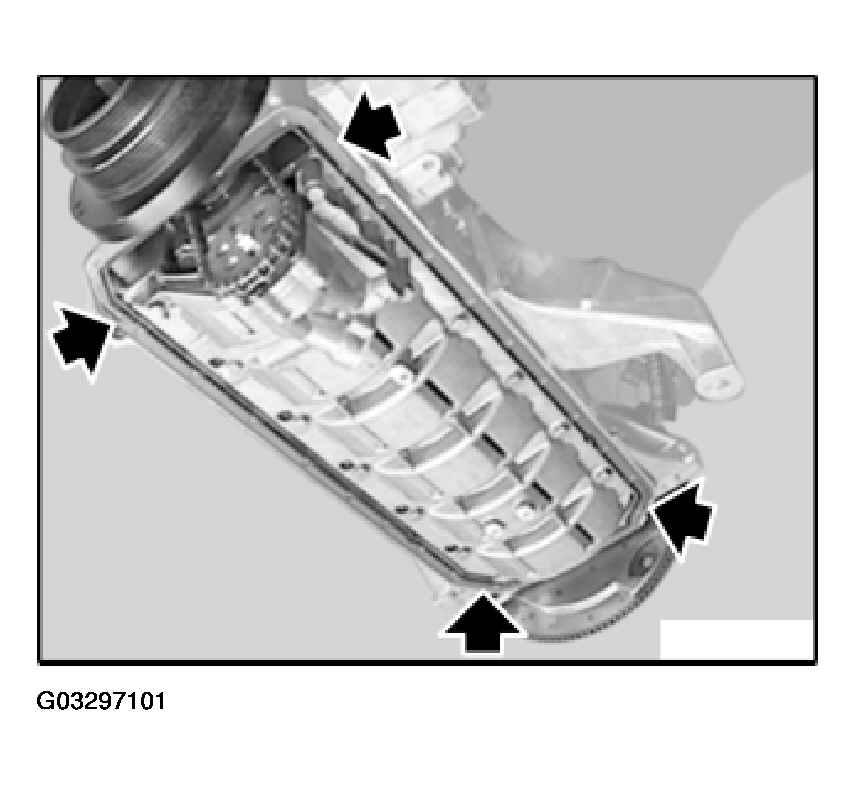

Fig 2: Applying High Coat Of Drei Bond

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal.
Install oil sump.
Insert all screws on transmission end,
without preload at this stage.
Tighten down screws on engine end.
Tighten screws on transmission end.
