11 13 000 Removing and installing, sealing or replacing oil sump (M52TU / M54 / M56)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200
00 0 201
00 0 202
00 0 204
00 0 208

NOTE: To remove the oil sump, you must lower the front axle support.
There is no need to perform a front axle alignment check.

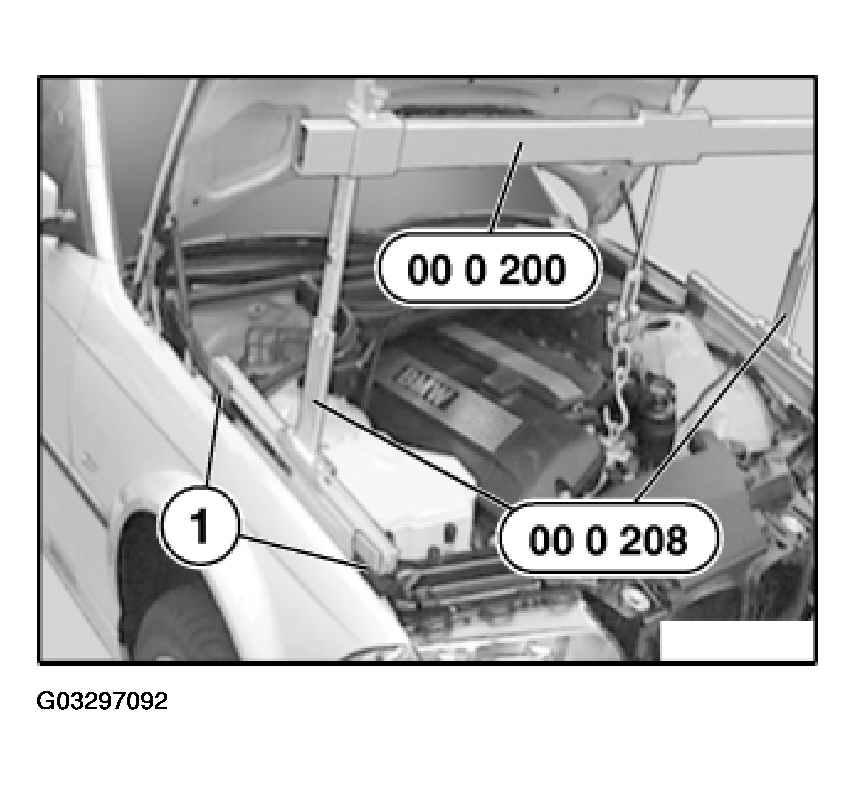

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 204 / 00 0 208 and fit.

Secure special tool 00 0 200 to front suspension eye on engine.

NOTE: The supports (1) of special tool 00 0 208 must rest on the bolt connection of both side walls.

Fig 1: Securing Special Tool To Front Suspension Eye On Engine

Courtesy of BMW OF NORTH AMERICA, INC.

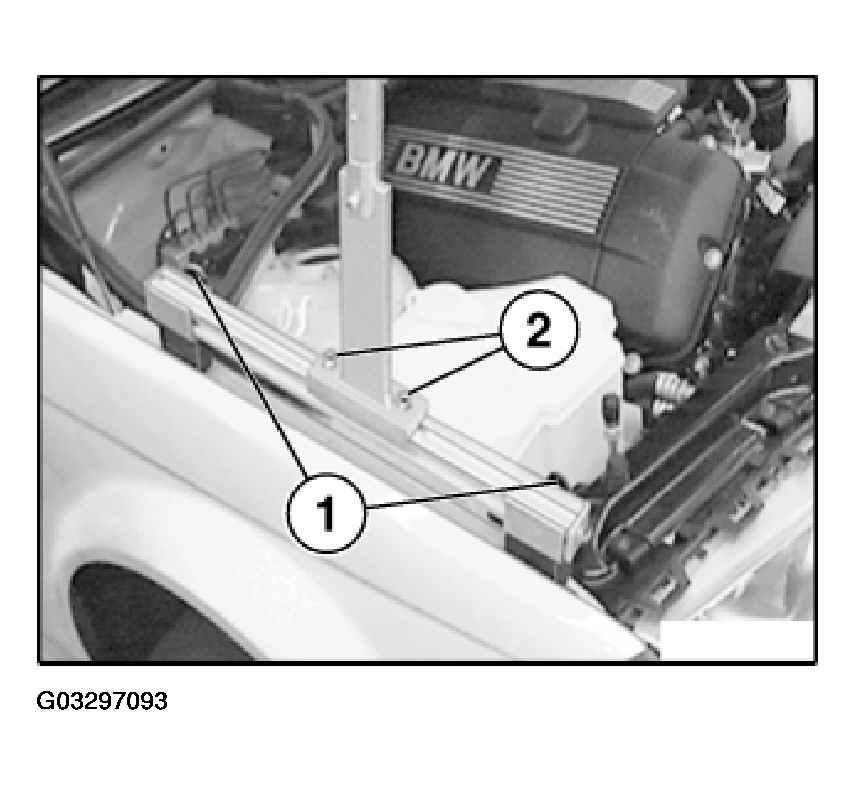

Tighten the screws (1 and 2).

Fig 2: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

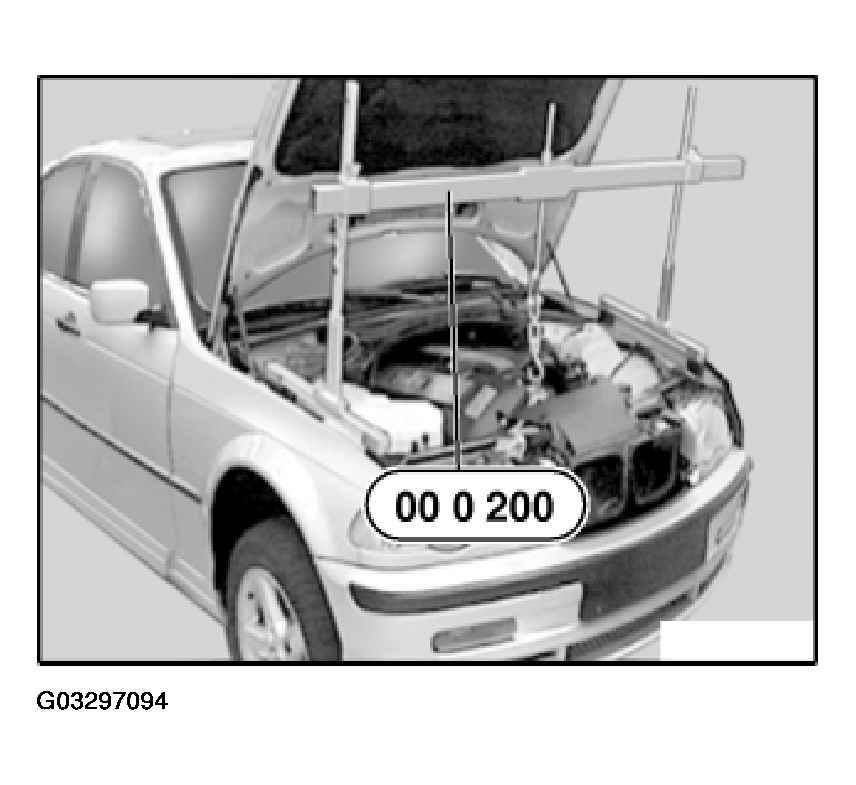

Raise engine with special tool 00 0 200 approx. 5 mm.

Fig 3: Removing Engine With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove suction filter housing .

Remove engine splash guard.

Drain engine oil .

On vehicles with automatic transmission:

Disconnect oil lines from automatic transmission and from oil pan.

Release guide tube for dipstick.

NOTE: M52 TU and M54 only.

Detach return hose from cyclone oil separator on oil dipstick guide tube.

Remove oil dipstick guide tube upwards.

Fig 4: Releasing Guide Tube For Dipstick

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

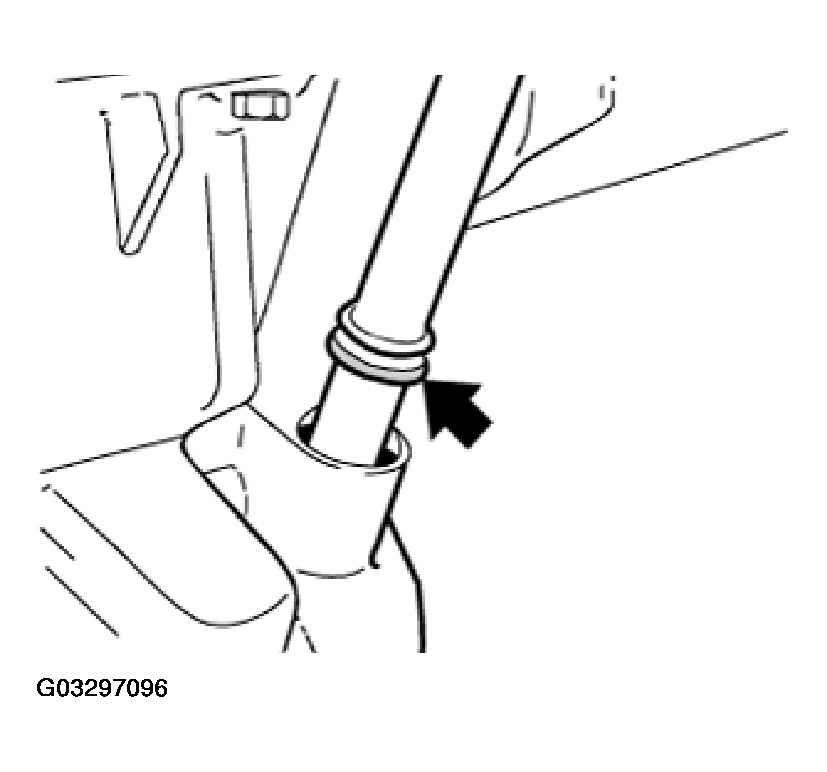

Replace O-ring.

Fig 5: Replacing O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front end reinforcement.

Detach steering spindle from steering gear . See STEERING GEAR .

Remove vane pump for power steering unit (lines remain connected).

Disconnect plug connection to oil level sensor.

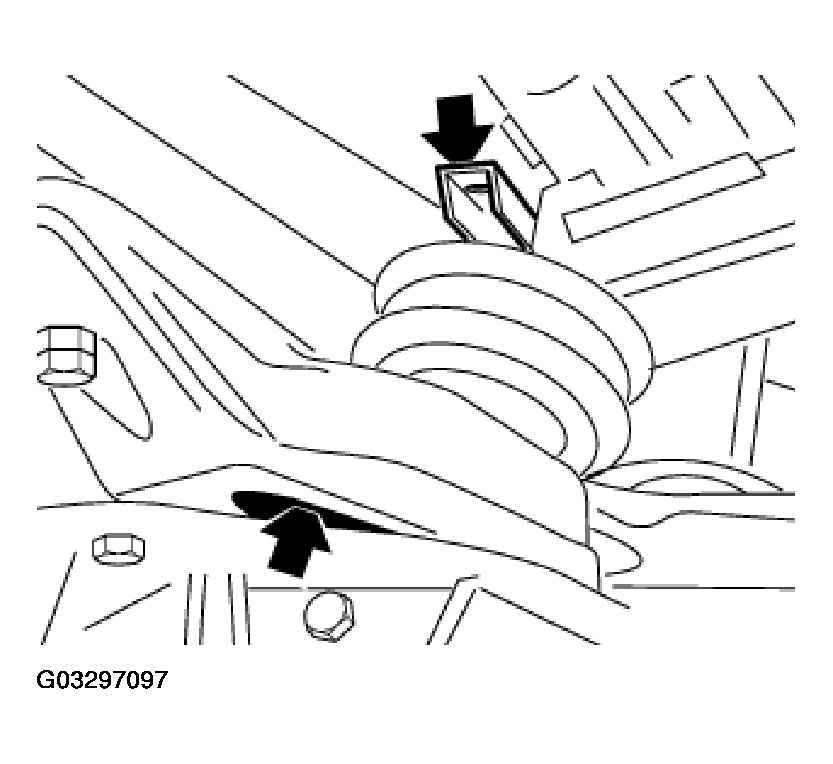

Loosen top and unfasten bottom of left and right engine mounts.

Fig 6: Removing Right Engine Mounts Nut

Courtesy of BMW OF NORTH AMERICA, INC.
