11 21 571 Replacing grooved ball bearing in crankshaft (M52 / S52 / M52TU / M54 / S50 / S54)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 500
11 2 340
11 2 350

(clutch removed)

IMPORTANT: In version with needle bearing (1) in dual-mass flywheel (2), no grooved ball bearing may be fitted in the crankshaft.

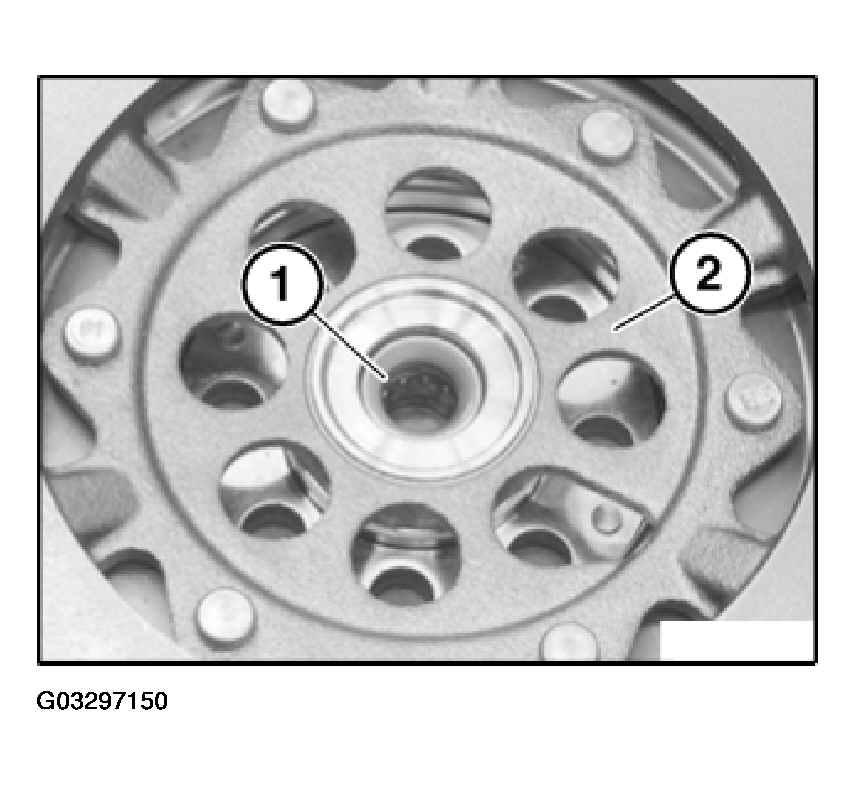

Fig 1: Identifying Needle Bearing In Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Version with grooved ball bearing:

Remove guide bearing with special tool 11 2 340.

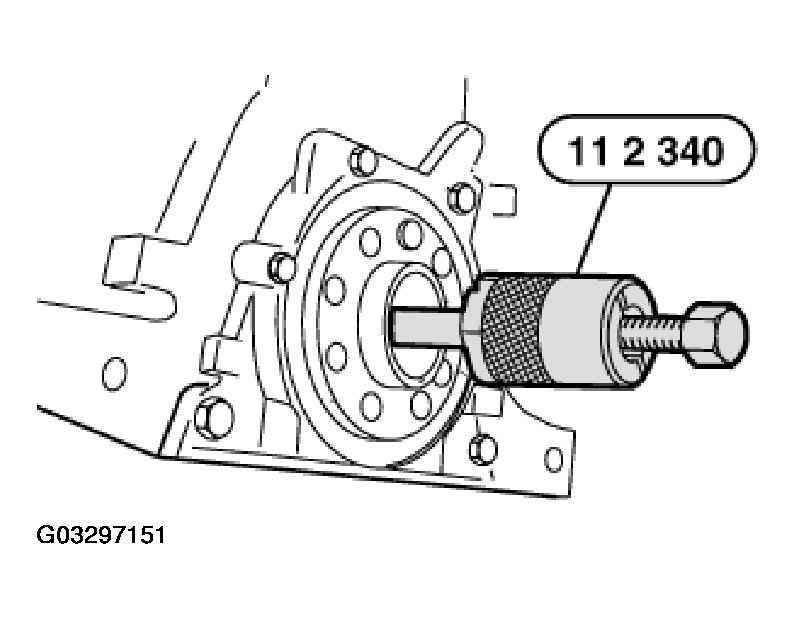

Fig 2: Removing Guide Bearing With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

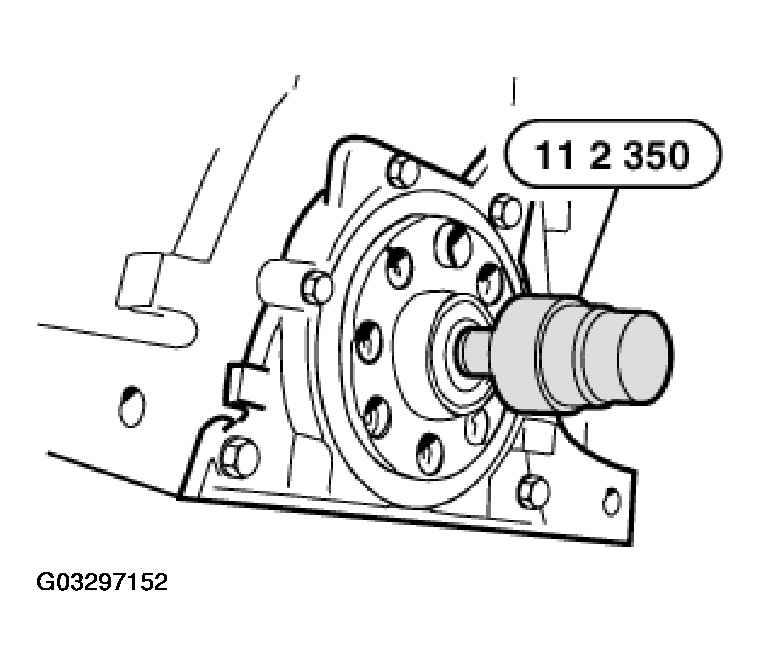

Fig 3: Installing Thrust Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
