Removal & Installation

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column upwards to maximum possible position.
Release screws (1) and expansion rivets (2). Unlock rotary clip (3) by turning through 90°. See Fig 1.
Unlock left and right retaining clips (1) and fold trim (2) down. See Fig 2.
Remove and feed out footwell light (1). Disconnect plug connection (2) from gong. Release lock (3) and press out plug (4) through opened On-Board Diagnosis (OBD) socket. See Fig 3.
If replacing, release locks (5) and remove OBD socket (6). See Fig 3.
If replacing, unlock gong (1) and remove from trim (2). See Fig 4.
To install, reverse removal procedure.

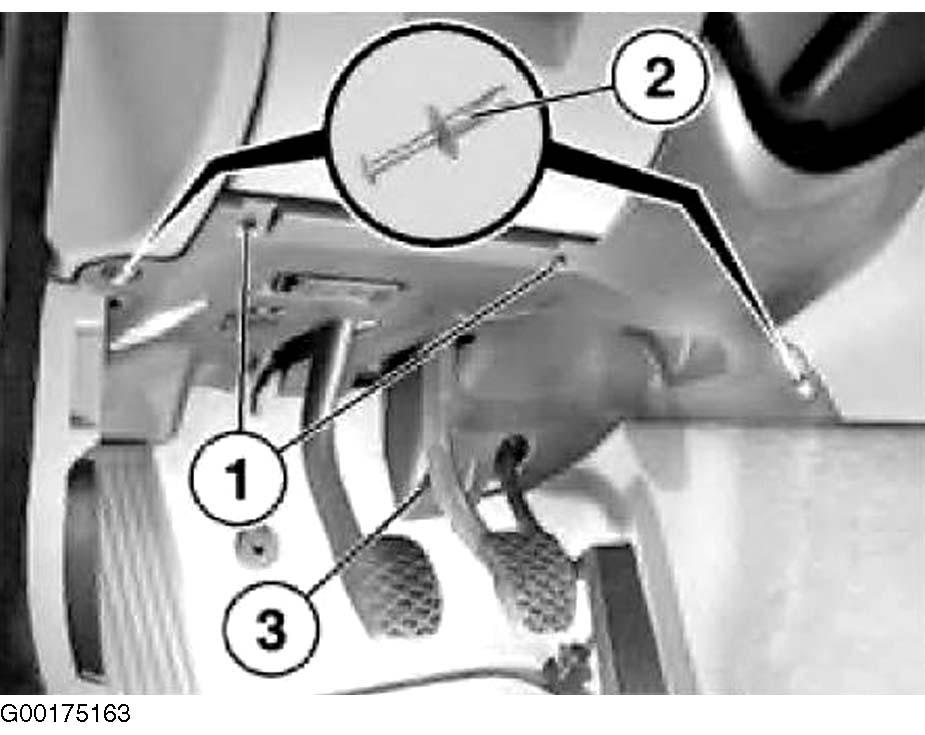

Fig 1: Identifying Pedal Assembly Trim Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

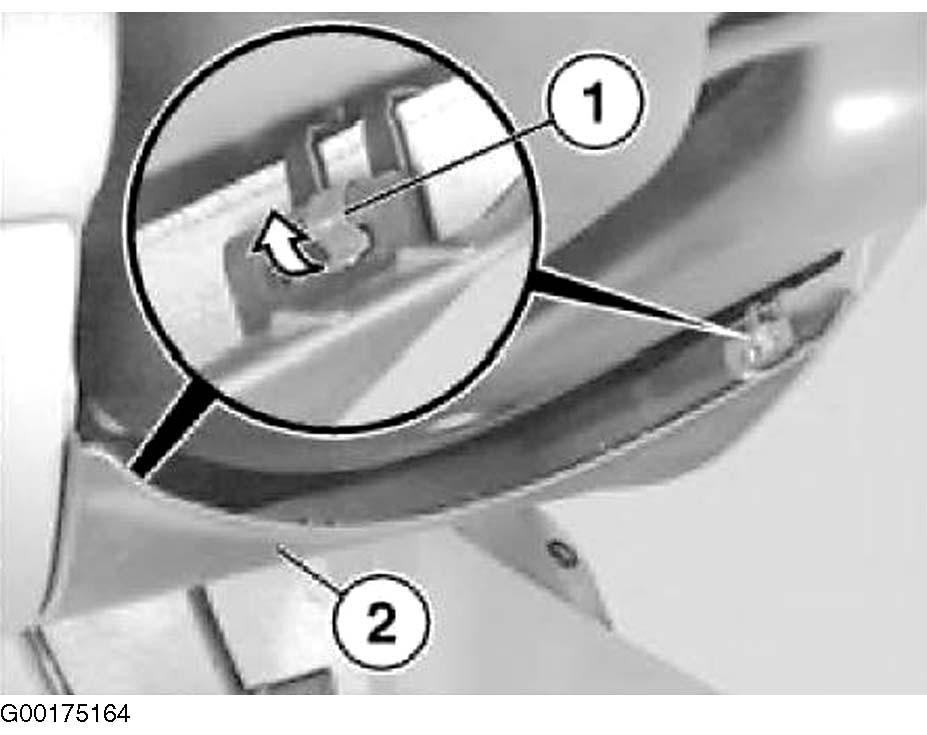

Fig 2: Unlocking Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

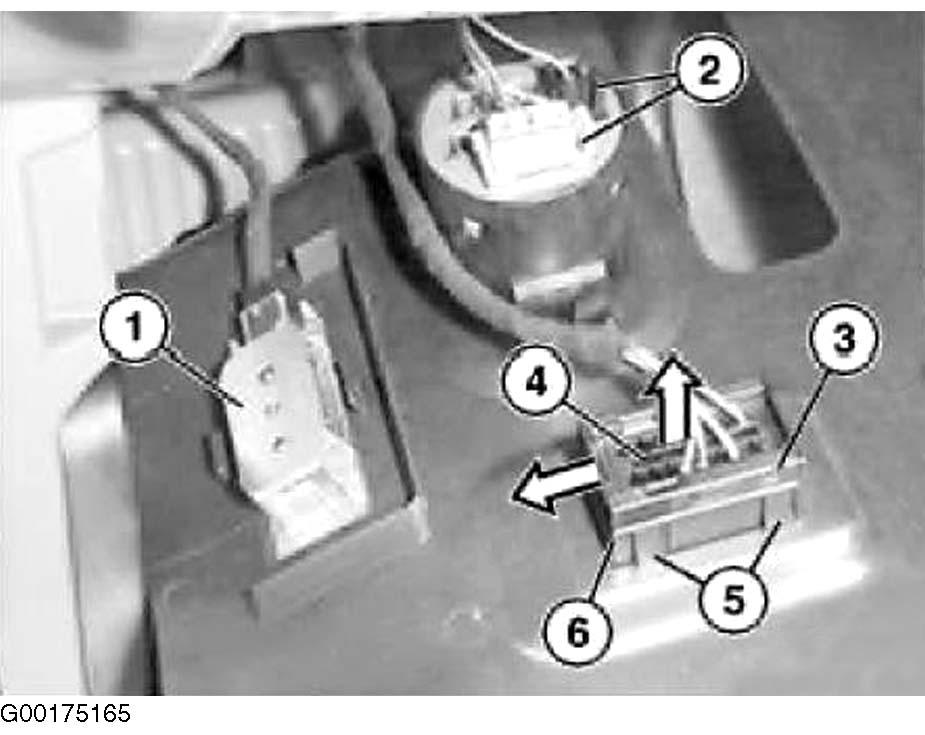

Fig 3: Locating Pedal Assembly Trim Components

Courtesy of BMW OF NORTH AMERICA, INC.

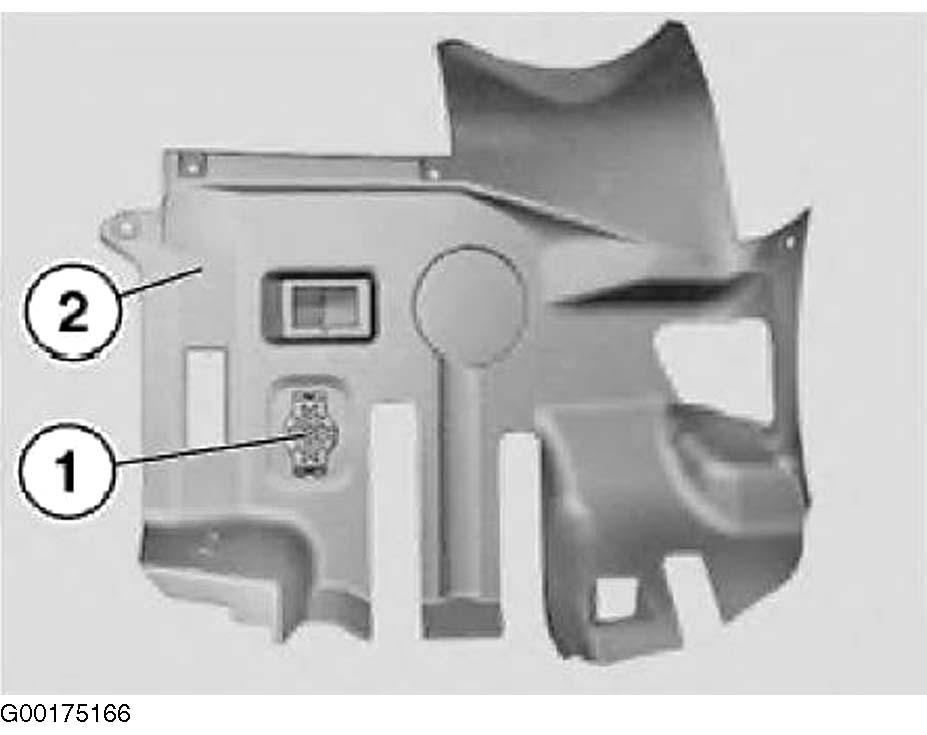

Fig 4: Removing Gong From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
