Removal & Installation

WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: AIRBAG unit must be placed with padded cushion facing upward.

Remove AIRBAG unit. See REMOVAL STEERING WHEEL WITH AIR BAG) .
Move steering wheel/wheels to straight ahead position. Release screw and remove steering wheel. See Fig 1.
If replacing steering wheel, transfer switch unit.
To install, reverse removal procedure. Ensure wheels are in straight ahead position. Fit steering wheel. Markings on steering wheel and steering spindle must match up. See Fig 2.
Tighten screw to specification. See TORQUE SPECIFICATIONS .

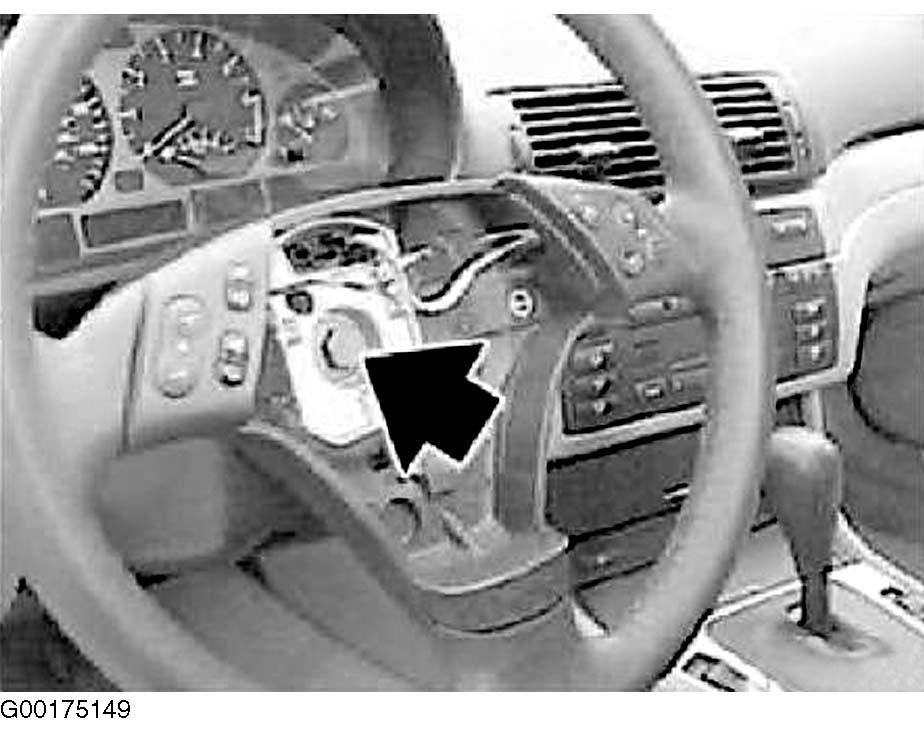

Fig 1: Removing Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

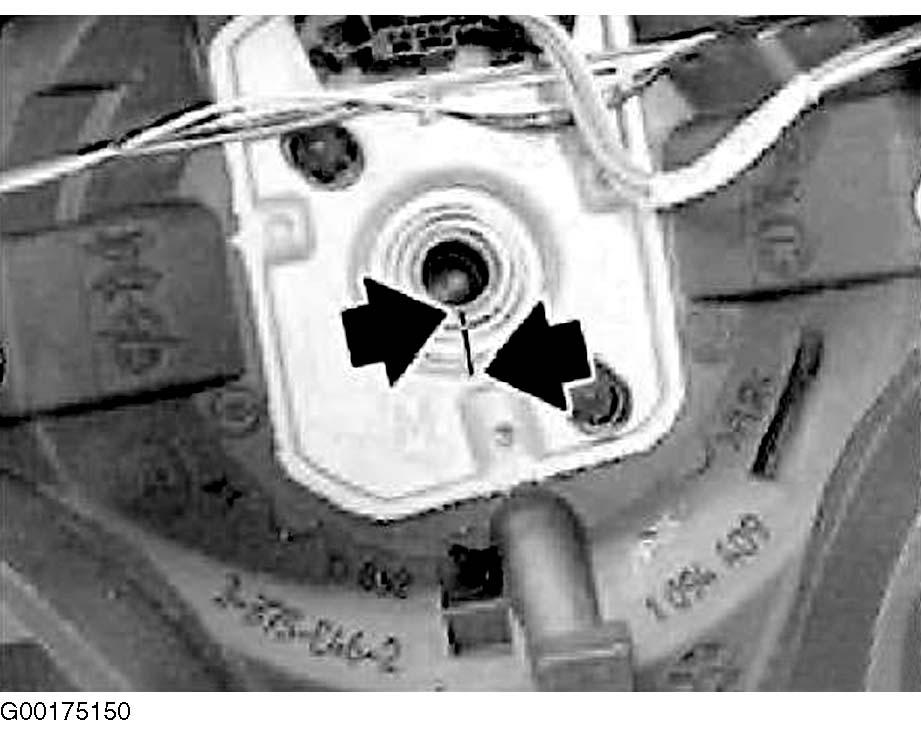

Fig 2: Installing Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.
