51 3 010 Suction lift (2 x)
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
MECHANICAL TOOLS DESCRIPTION
| Note: | For removing and installing window glass |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1 |
| SI number: | 1 05 86(604) |
| Order number: | 51 3 010 |

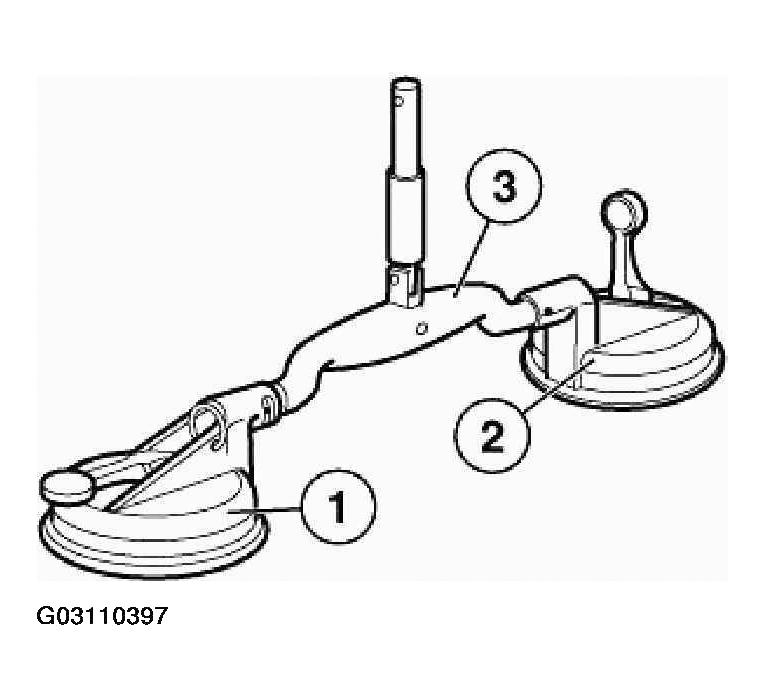

| Suction lift (2 x) | |
| Consisting of: | |
| 1 = 51 3 011 | Suction cup |
| Note: | With elongated hole, suspension moveable about all axes |
| 2 =513012 | Suction cup |
| Note: | With bore, suspension only moveable in longitudinal direction |
| 3 = 51 3 013 | Grab handle |
