21 2 140 Clutch centering mandrel (2 x)
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
CLUTCH CENTERING MANDREL (2 X)
| Note: | For centering clutch disc on flywheel while installing self-adjusting clutch (SAC) - Phase-in of SAC in E46, 09/97 |
| Transmission: | S5D 200G, S5D 250G, S5D 260Z, S5D 310Z, S6S 420G, S6S 560G |
| Storage location: | C5 |
| SI number: | 1 13 96(104) |
| Order number: | 21 2 140 Clutch centering mandrel (2 x) |

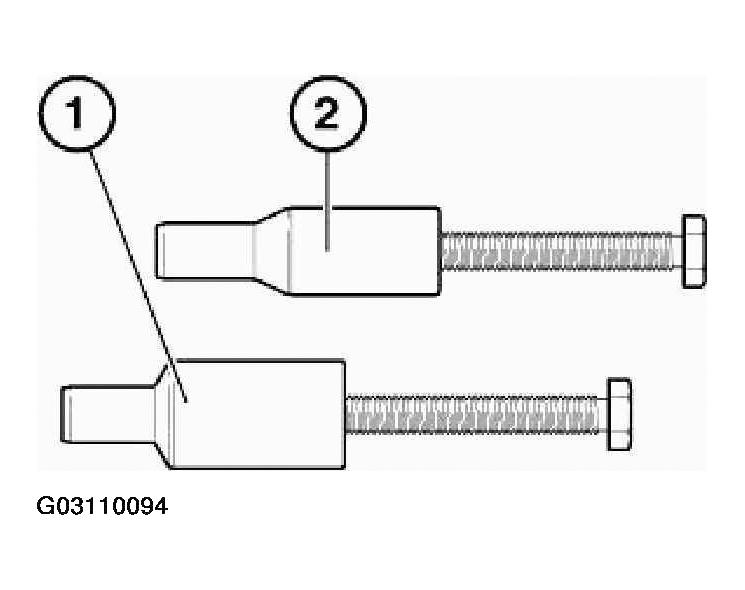

| Consisting of: 1 = 21 2 141 |
Clutch centering tool |
| Note: With M10 screw - Transmission: S6S 420G, S6S 560G | |
| 2 = 21 2 142 | Clutch centering tool |
| Note: With M10 screw - Transmission: S5D 200G, S5D 250G, S5D 260Z, S5D 310Z |
