67 61 510 Removing and installing or replacing drive with gear for actuating slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ceiling light. See 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT

Remove panel and disconnect plug connection.

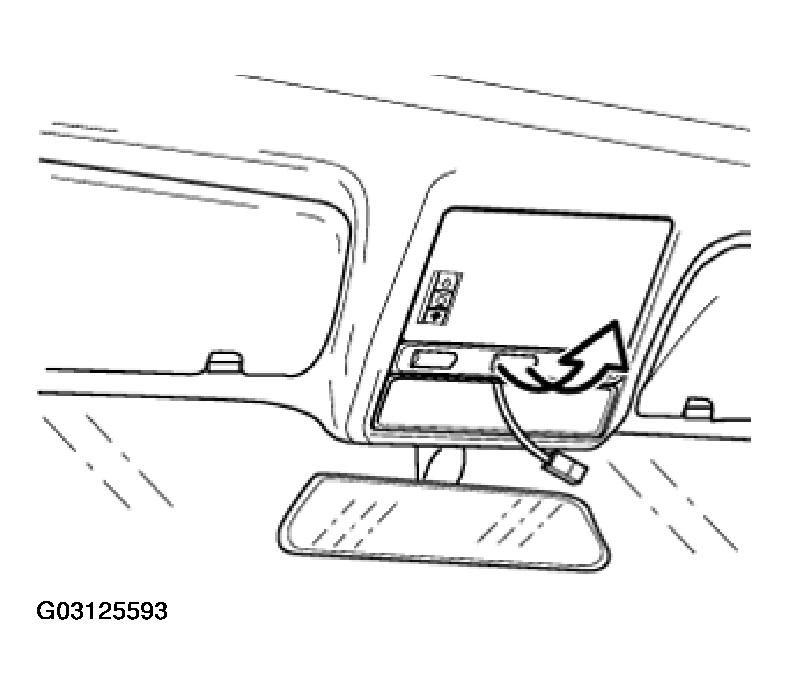

Fig 1: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

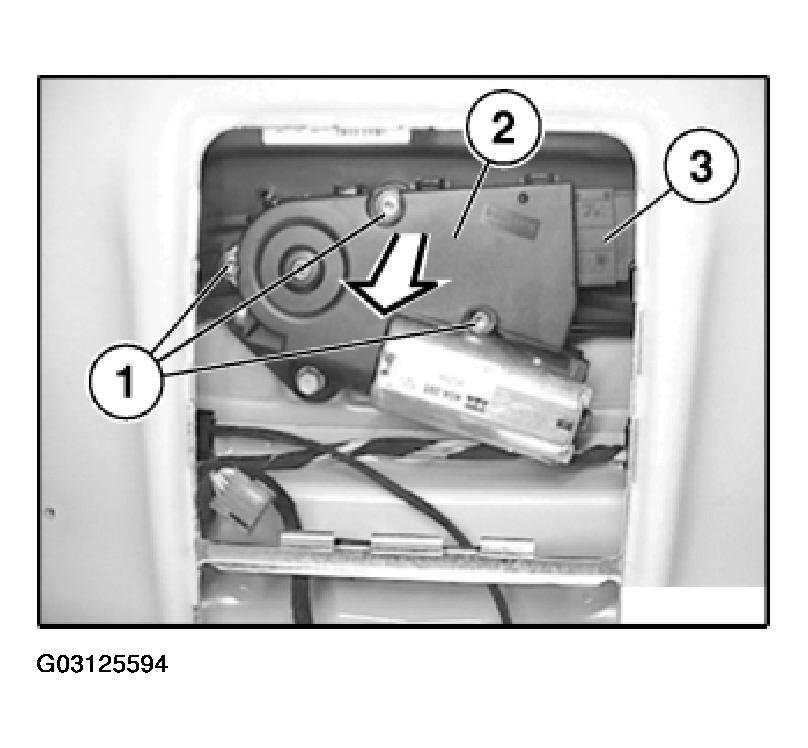

Release screws (1).

NOTE: Screws (1) are microencapsulated.

Fig 2: Identifying Microencapsulated Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lower drive with gear for actuating slide/tilt sunroof (2).

Unlock plug connection (3), disconnect and remove drive with gear for actuating slide/tilt sunroof (2).

Installation:

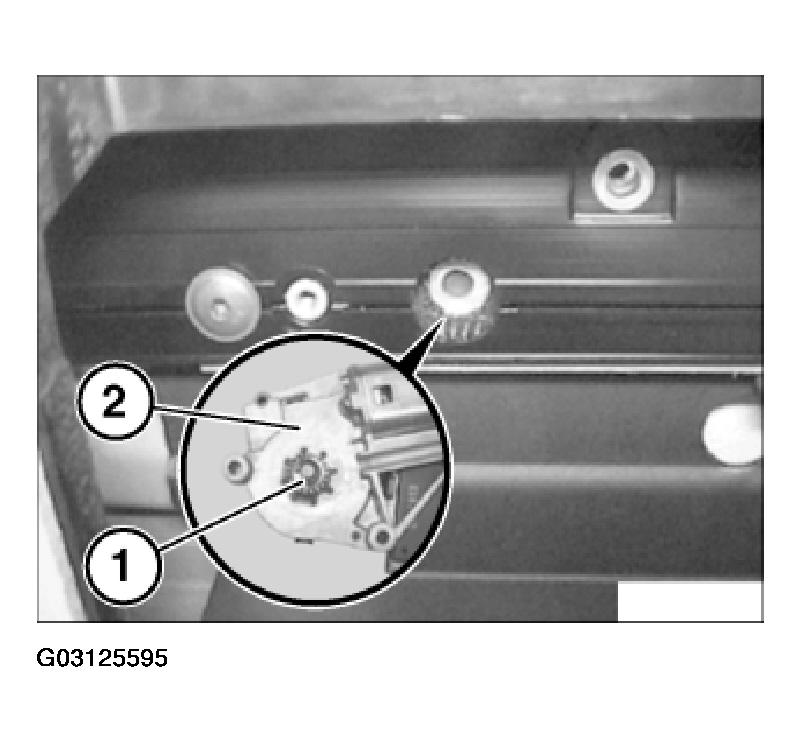

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) in gear teeth.

Fig 3: Identifying Lower Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

E38 from 9/98 for replacement only:

Carry out programming/coding. See DIAGNOSIS PROGRAMMING/CODING

IMPORTANT: There is a risk of permanent battery discharge if programming/coding is not carried out!

NOTE: After installing/coding drive for actuating slide/tilt sunroof:

Initialize slide/tilt sunroof. See 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE)
