67 31 511 Removing and installing/replacing drive for seat tilt adjustment (front seat removed)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

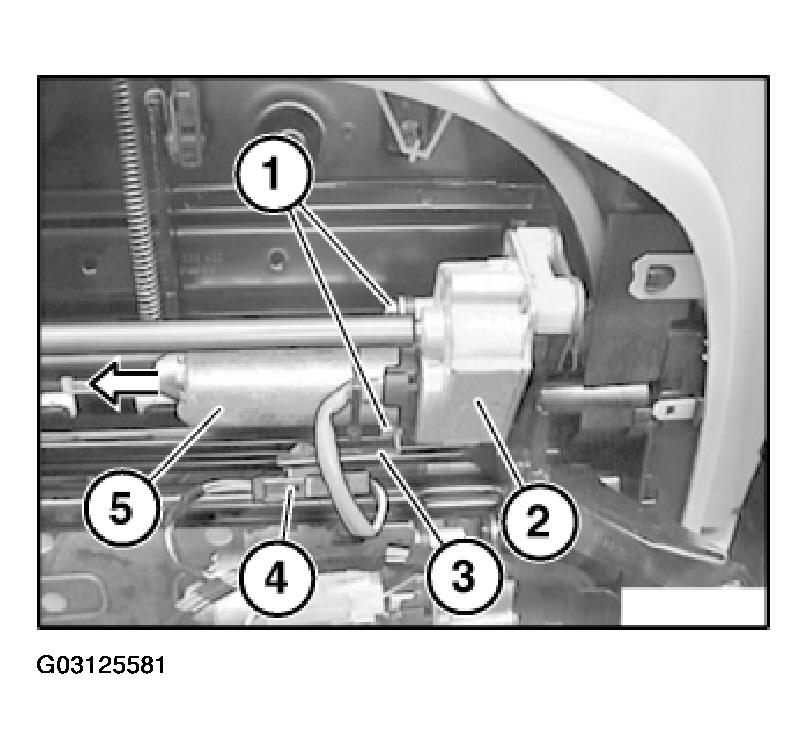

Disconnect plug connection (4).

NOTE: Secure drive for seat tilt adjustment (5) against falling out.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove drive for seat tilt adjustment (5) with fixture for plug connection (3) in direction of arrow from flange (2).

If necessary, remove inner drive shaft from drive for seat tilt adjustment (5).

Installation:

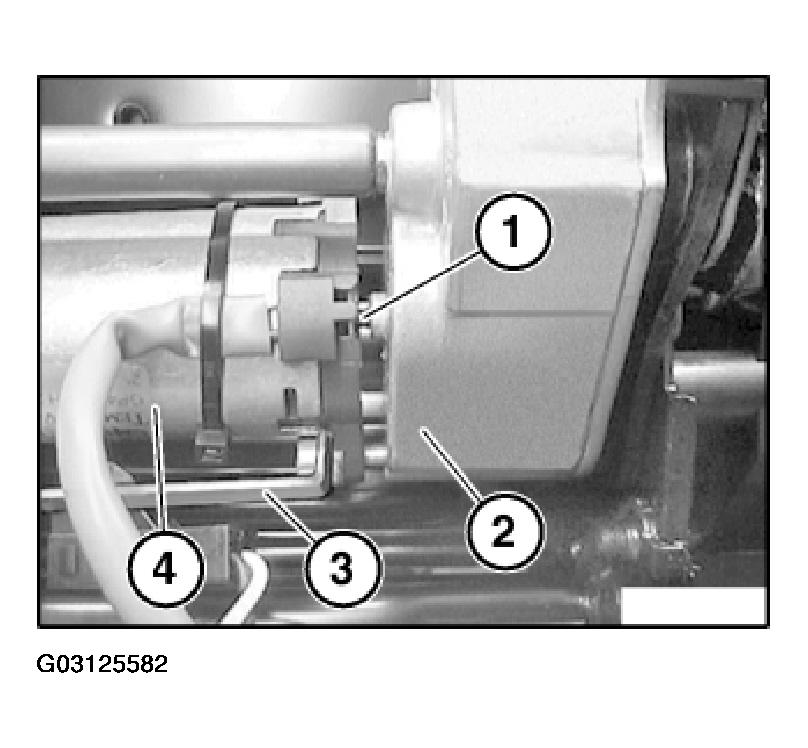

Make sure drive shaft (1) is correctly seated.

Ensure fixture for plug connection (3) and drive for seat tilt adjustment (4) on flange (2) are correctly seated.

Fig 2: Identifying Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
