64 22 162 Removing and installing/replacing center fresh air grille (air conditioning)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove decorative strip above radio, refer to 51 16... REPLACING A CLIPPED-IN TRIM .

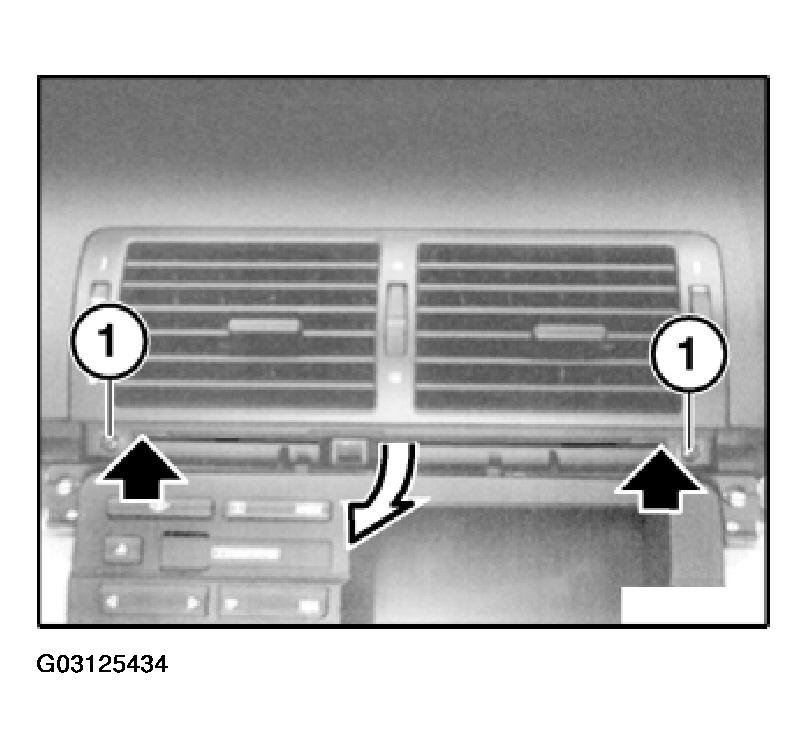

Release screws (1). Press fresh air grill from bottom to top and twist out backwards.

Fig 1: Releasing Screws (64 22 162)

Courtesy of BMW OF NORTH AMERICA, INC.

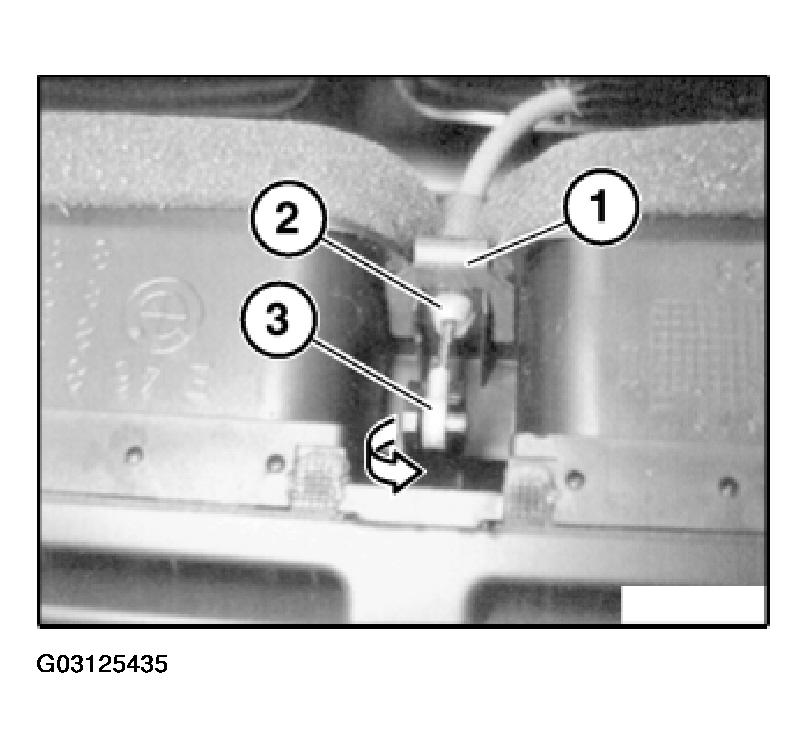

Pull off clip (1) upwards. Release Bowden cable (2) with pliers and pull out. Turn eye (3) upwards and slide to right.

Fig 2: Releasing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
