Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

64 1 451
64 1 456
64 1 457
64 1 458

WARNING: When handling cleaning agent, observe following protection measures:
Wear protective rubber gloves and protective goggles.
If cleaning agent comes into contact with eyes or skin, wash immediately with lots of water.

CAUTION: To avoid dirtying vehicle interior:

Close all air vents.
Switch air conditioner to recirculated air mode.
Cover carpet in work area.

Recycling:

Carry out the cleaning operation in a suitable washing bay as the emerging cleaning agent escapes through the drain openings in the transmission tunnel.

NOTE: Make sure the cleaning agent can escape freely from the drain openings. If necessary, remove rear underbody protection. See 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (FROM 10/01)

Remove limit switch for heater - A/C fan. See 64 11 228 Replacing output stage/switch for heater - A/C system blower

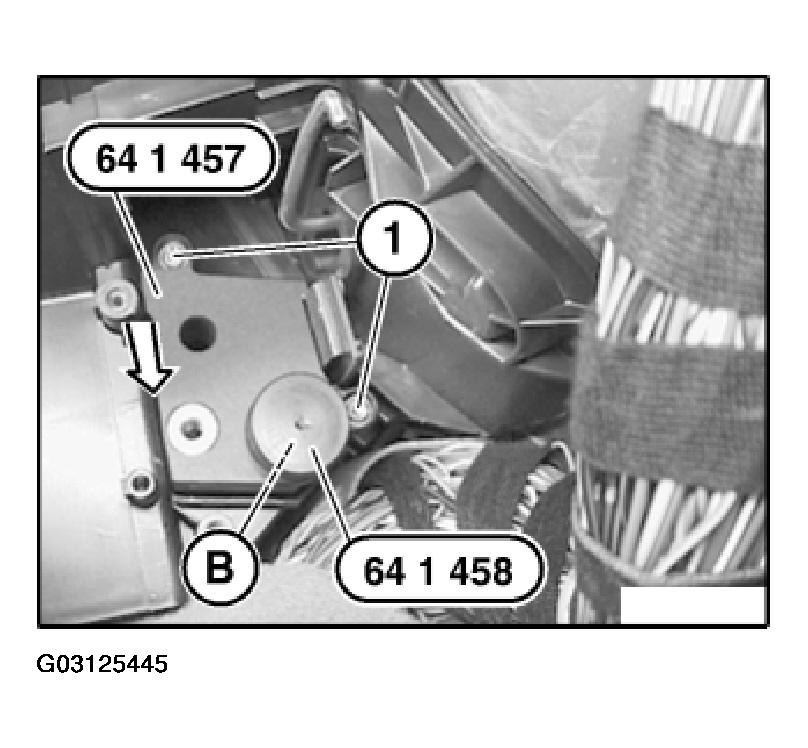

Secure adapter for spray lance 64 1 457 with screws (1) of limit switch for heater - A/C fan.

Seal opening (B) with plug for adapter 64 1 458.

Fig 1: Removing Limit Switch For Heater - A/C Fan

Courtesy of BMW OF NORTH AMERICA, INC.

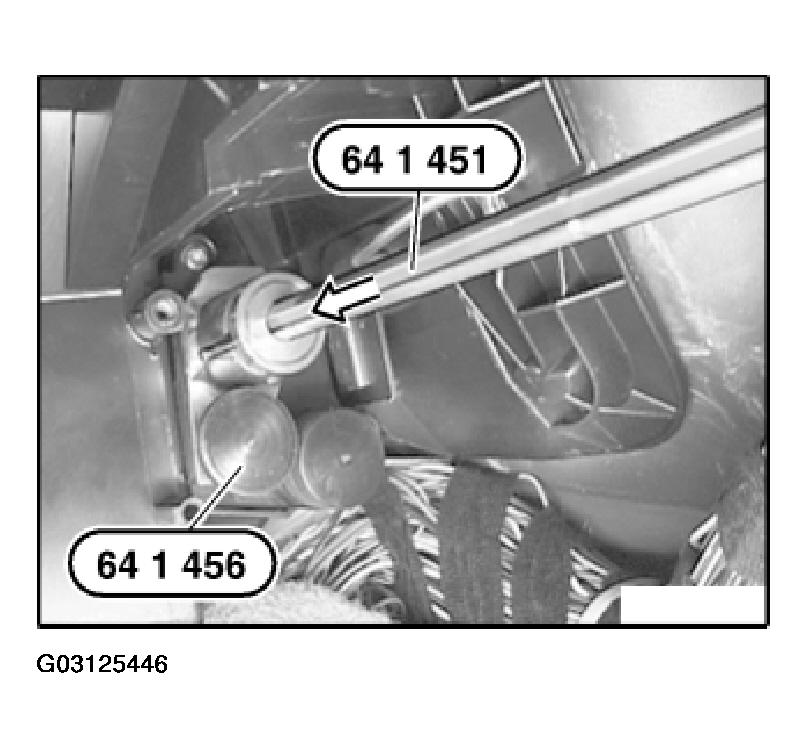

Insert spray lance 64 1 451 in direction of arrow and secure with fixture for spray lance 64 1 456.

Fig 2: Inserting Spray Lance In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

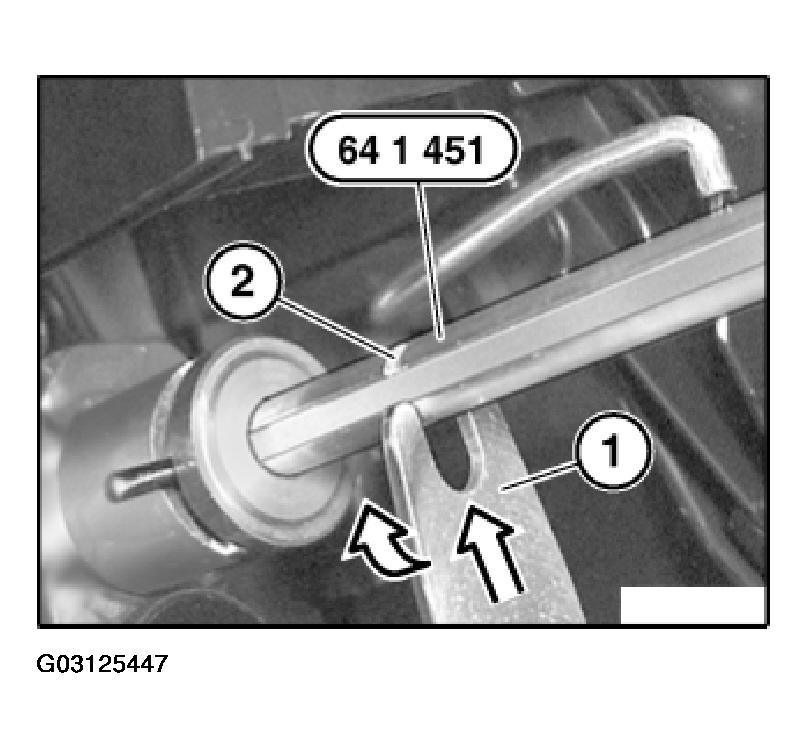

Insert travel limiter (1) into notch (2) of spray lance 64 1 451 and turn approx. 45°.

Fig 3: Inserting Travel Limiter Into Notch Of Spray Lance

Courtesy of BMW OF NORTH AMERICA, INC.

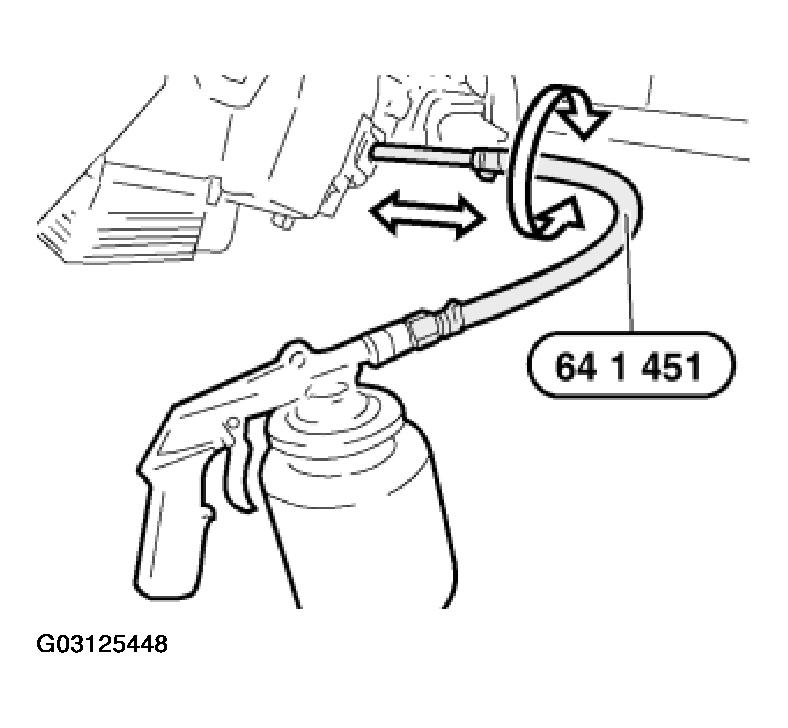

Connect spray lance 64 1 451 to spray apparatus.

By moving spray lance 64 1 451 back and forth, spray a uniform amount of cleaning agent onto evaporator.

NOTE: After completing cleaning, allow car to drip-dry for approx. 5 minutes.

Fig 4: Connecting Spray Lance To Spray Apparatus

Courtesy of BMW OF NORTH AMERICA, INC.

Set heater - A/C to footwell ventilation and fresh air operation. Open windows/doors.

Start car and run heater - A/C at max. fan power for approx. 5 minutes in order to dry evaporator.

NOTE: In order to eliminate the last remnants of cleaning agent, repeat this procedure shortly before handover to the customer.
