Special tools required:

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

64 1 020

Up to 09/2001:

Lever out additional front turn signal lamp (1) with special tool 64 1 020 in direction of arrow.

Pull out additional front turn signal lamp (1) up to bulb holder, turn through approx. 90° and feed out.

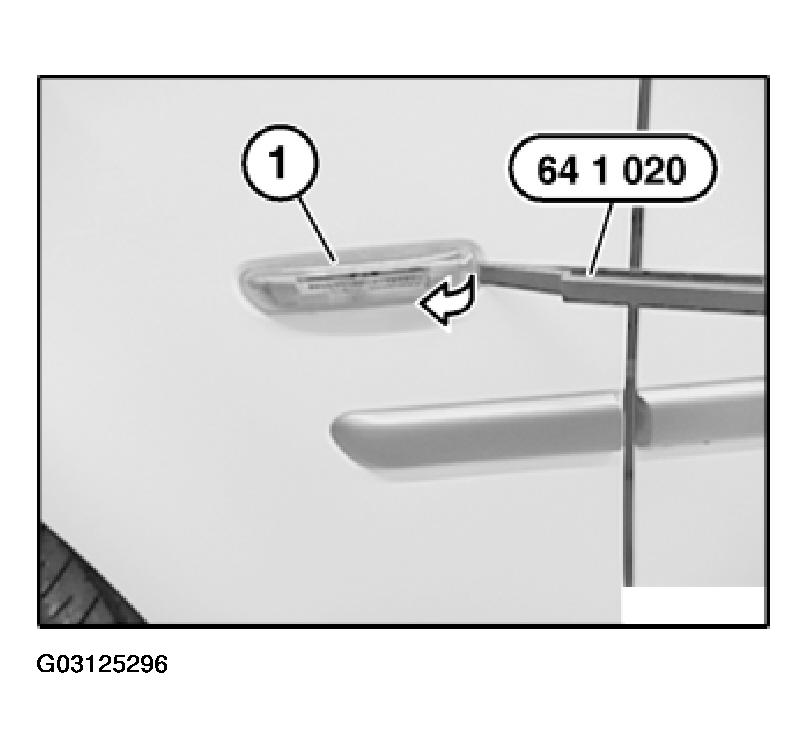

Fig 1: Removing Additional Front Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Unclip additional front turn signal lamp (1) in direction of arrow and remove.

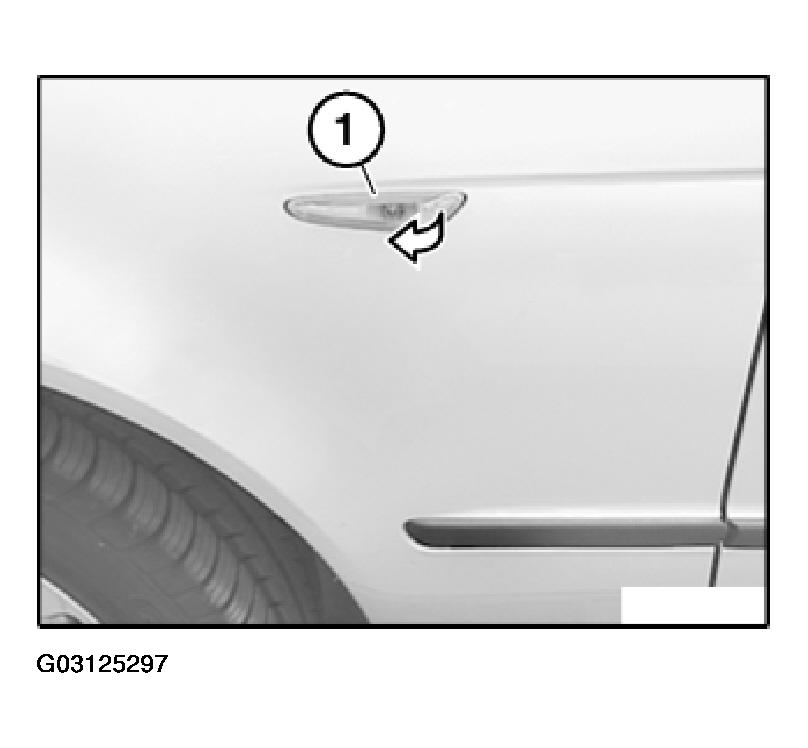

Fig 2: Unclipping Additional Front Turn Signal Lamp In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Disconnect plug connection (1) and remove additional front turn signal lamp (2).

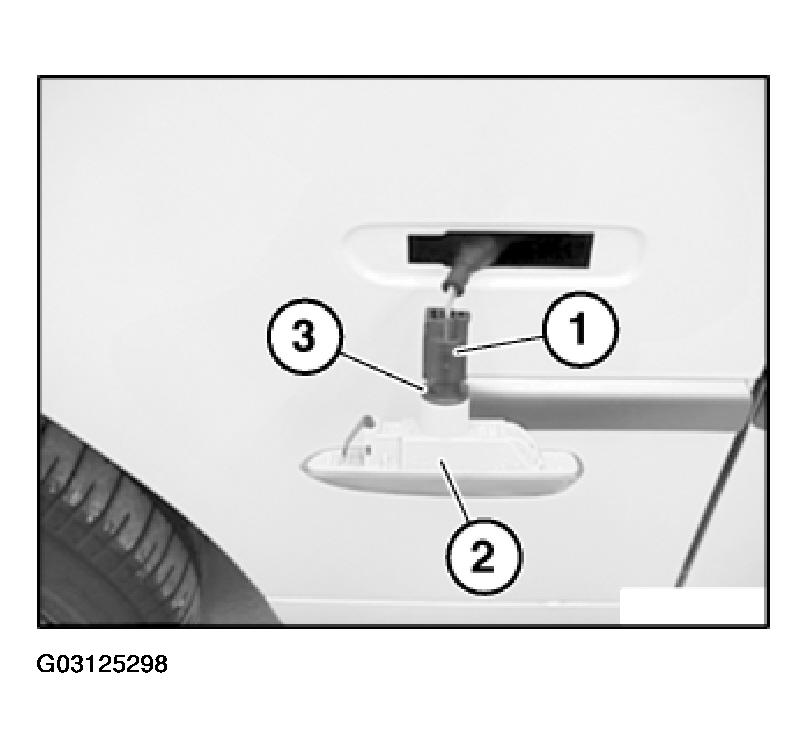

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
