63 21 055 Replacing a socket housing for left or right rear light (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Saloon/sedan, in side panel:

Up to 09/2001:

Unlock catch (1) and remove socket housing for rear light (2).

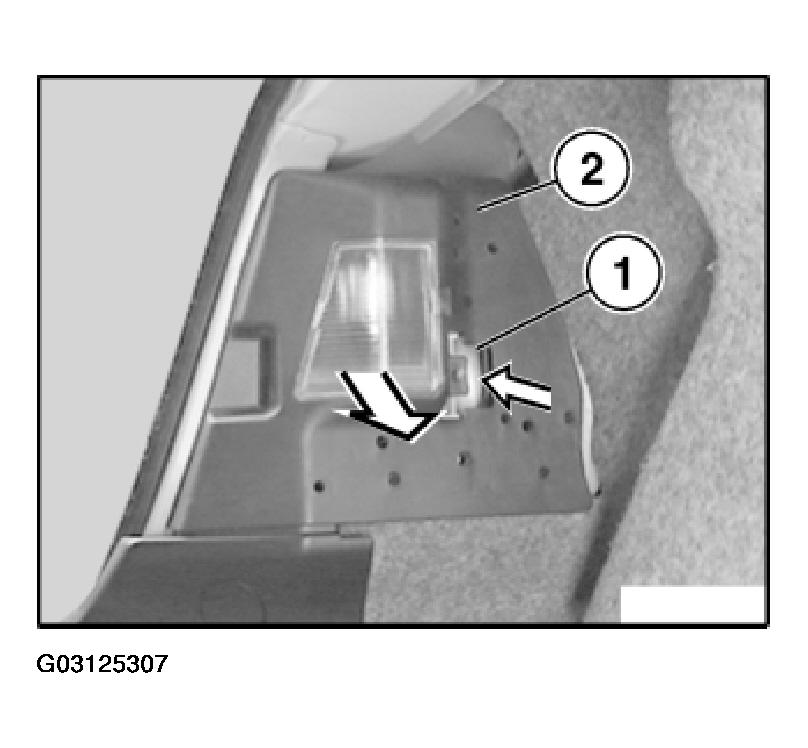

Fig 1: Removing Socket Housing For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Turn fastener (1) in direction of arrow and remove socket housing for rear light (2).

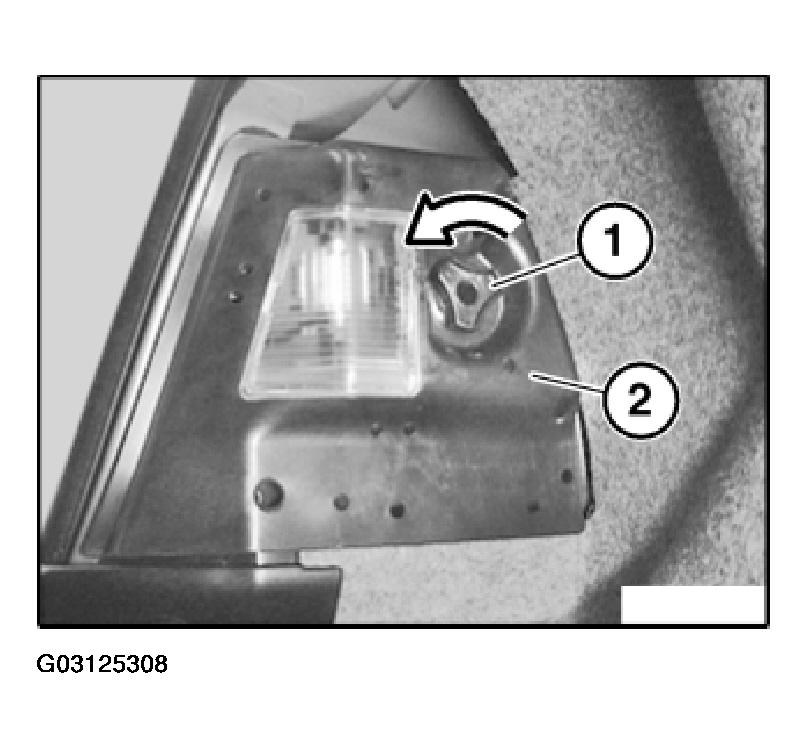

Fig 2: Removing Socket Housing For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Both:

Disconnect plug connection and remove socket housing for rear light.

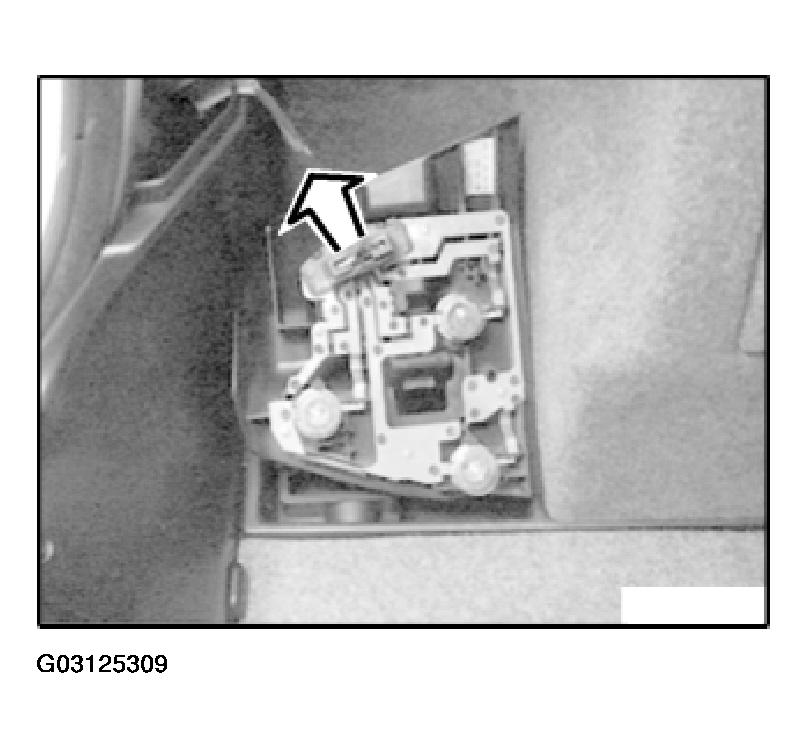

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Touring, in side panel:

Remove flap in luggage compartment trim panel.

Fig 4: Removing Flap In Luggage Compartment Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove warning triangle before removing left socket housing for rear light.

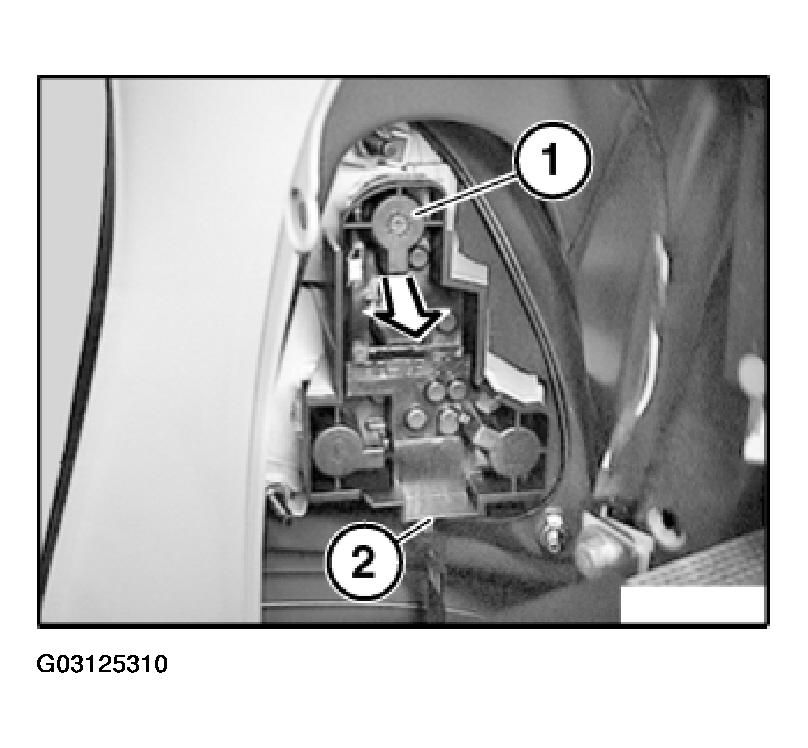

Unlock socket housing for rear light (1) and lift off slightly. Disconnect plug connection (2) and remove socket housing for rear light (1).

Saloon/sedan, touring, in rear lid:

Saloon/sedan:

Partially release panel for rear lid.

touring:

Release insert in rear lid trim.

Both:

Disconnect plug.

Unlock socket housing for rear light and remove.

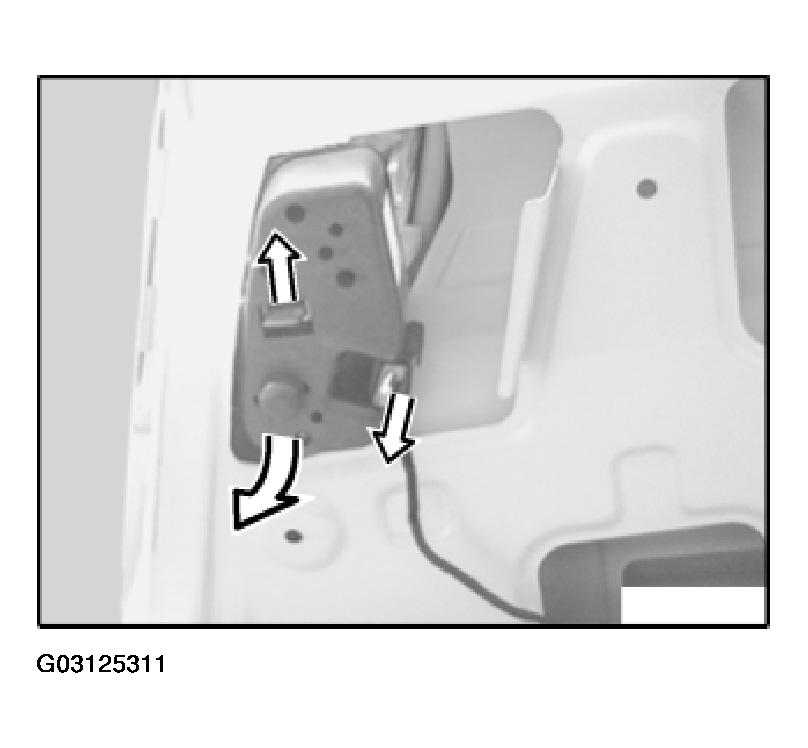

Fig 5: Unlocking Socket Housing For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
