Windshield wiper arm with new sleeve (2):

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Return windshield wiper system to rest position. Push wiper arm (1) with sleeve (2) onto shaft and tighten until hand-tight.

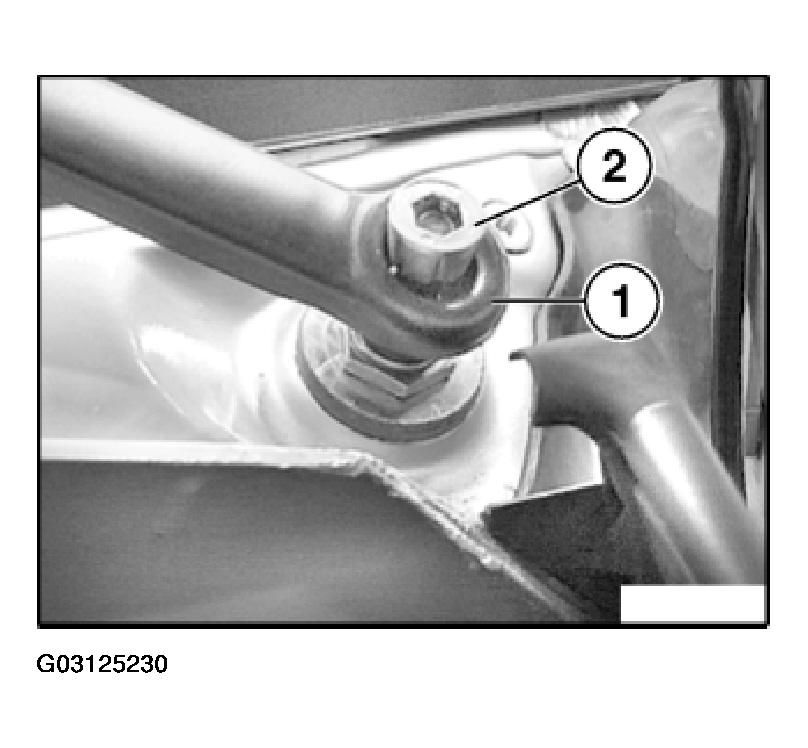

Fig 1: Pushing Wiper Arm With Sleeve Onto Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Set position of relevant wiper arm to rest position and then tighten down wiper arm.

Adjustment dimensions:

WIPER ARM ADJUSTING DIMENSIONS

Measurement 1 [mm]	Measurement 2 [mm]
24	44

Observe tightening torque. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

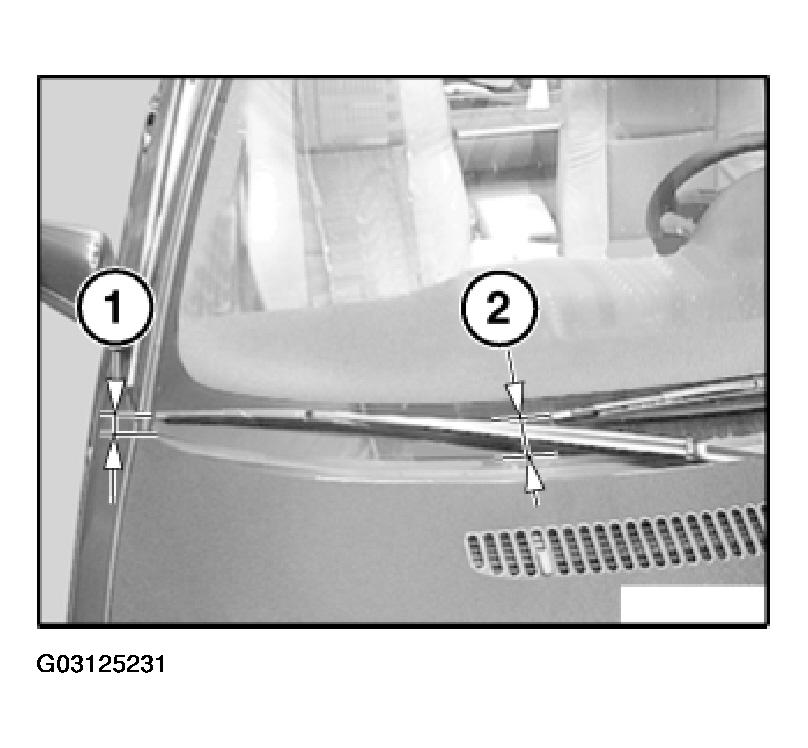

Fig 2: Identifying Wiper Arm Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.
