Illustration shows removal of switch on impact cushion for airbag on left

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

Loosen screws (2).

Remove switch on impact cushion for airbag (3) in direction of arrow.

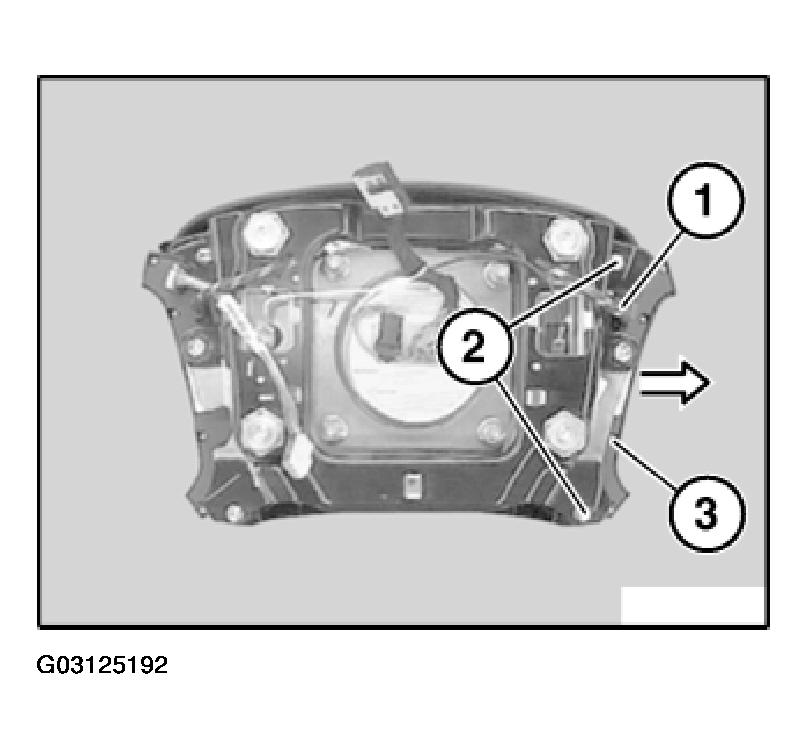

Fig 1: Replacing Switch On Impact Cushion For Left Or Right Airbag

Courtesy of BMW OF NORTH AMERICA, INC.
