61 62 130 Removing and installing/replacing water reservoir for rear window washing system

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap in trunk trim panel on right, refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN TRUNK TRIM PANEL, LEFT OR RIGHT (TOURING) .

Remove sound insulation. See 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN REAR DOOR, LEFT OR RIGHT

NOTE: Empty water reservoir for rear window washing system.

Unfasten plug connection (1). Detach filling channel (2) and hose (3) with angle section. Release nuts (4) slightly. Release nut (5) and remove reservoir.

Installation:

Make sure hose (3) is laid without kinks after installation.

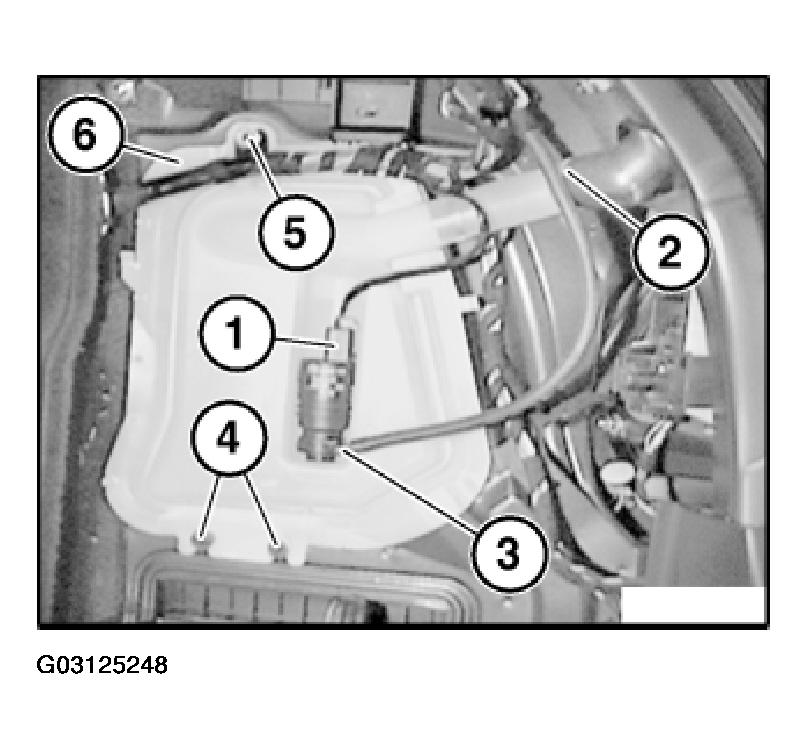

Fig 1: Removing Rear Window Washer System Water Reservoir
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Fold down windshield washer pump (1) and pull out.

Installation:

Coat sealing ring with anti-friction agent.
If necessary, replace sealing ring.

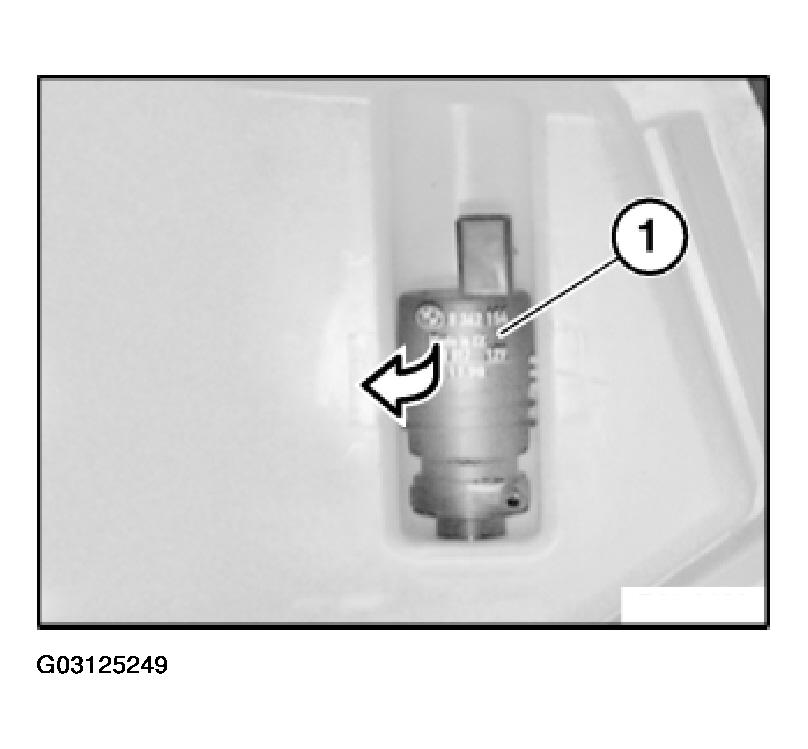

Fig 2: Removing Windshield Wiper Pump
Courtesy of BMW OF NORTH AMERICA, INC.
