51 71 080 Removing and installing/replacing heater bulkhead

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove microfilter for passenger compartment ventilation. See 64 31 010 REPLACING MICROFILTER FOR INTERIOR VENTILATION

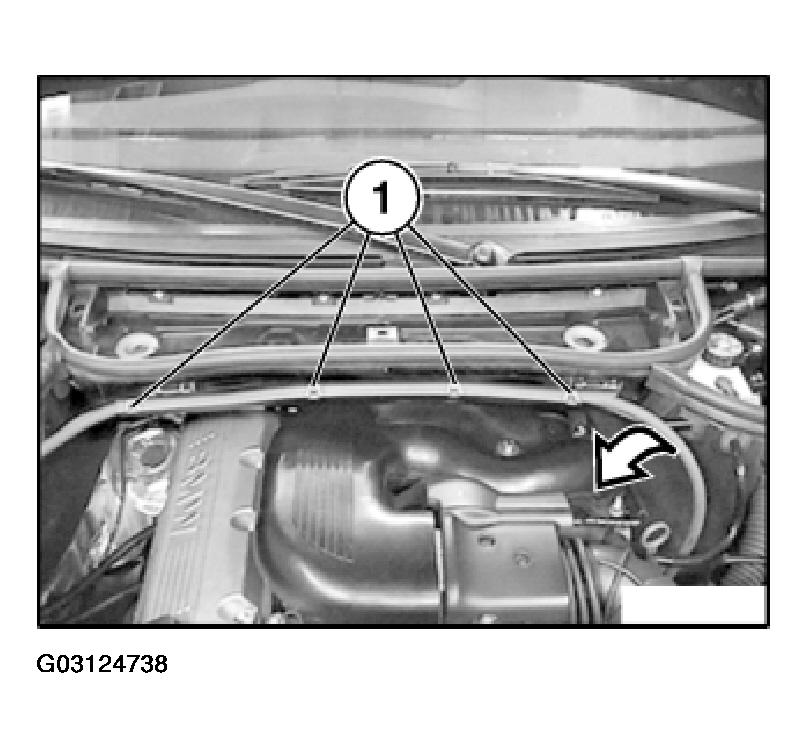

Unclip retainers (1) and feed cable out of cable duct.

Fig 1: Removing Cable Out Of Cable Duct

G03124738

Courtesy of BMW OF NORTH AMERICA, INC.

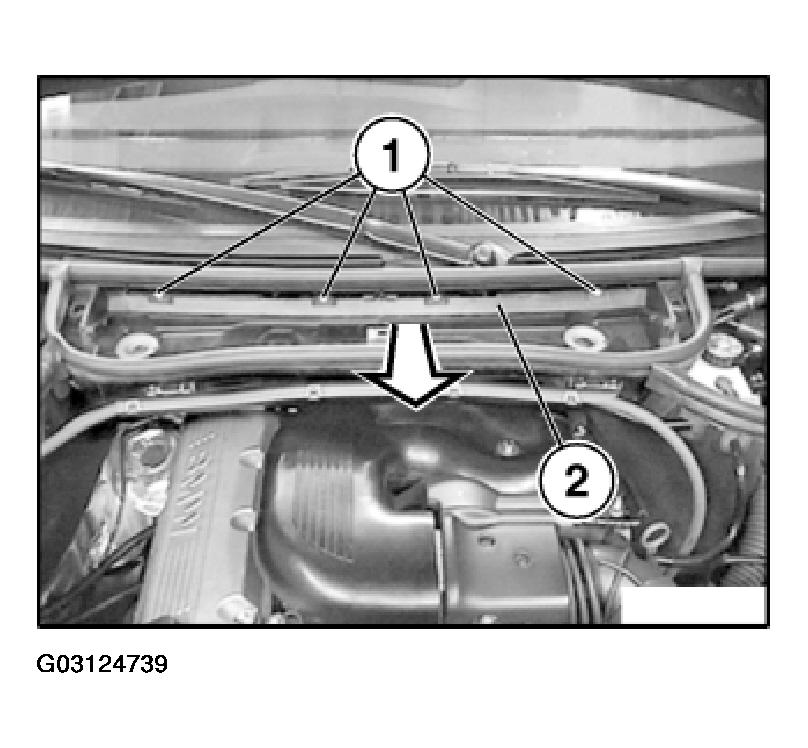

Release screws (1) and remove microfilter housing towards front.

Installation:

Seals on microfilter housing must not be damaged or missing.

Fig 2: Removing Microfilter Housing

G03124739

Courtesy of BMW OF NORTH AMERICA, INC.

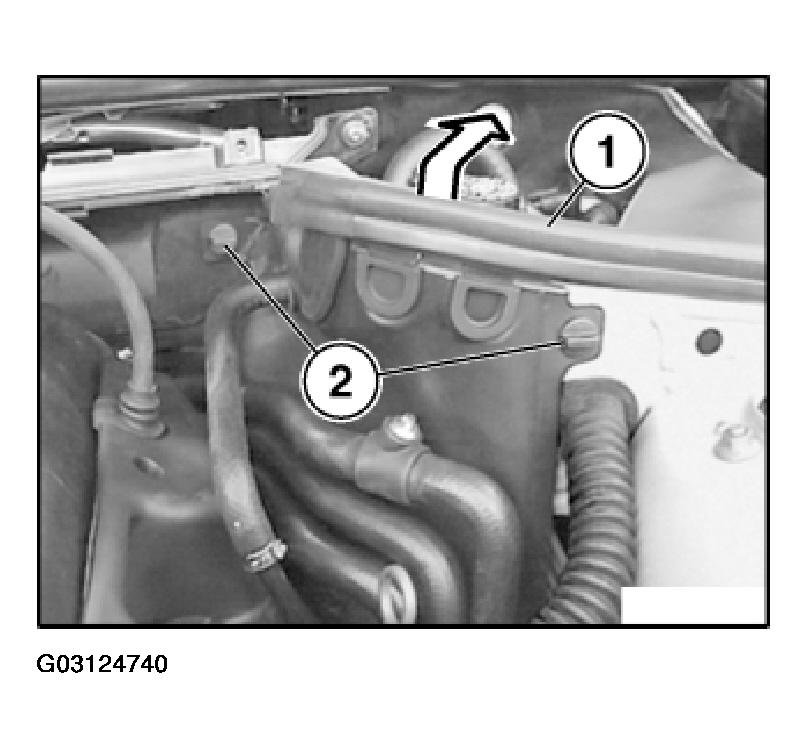

Detach rubber strip (1).

Release locks (2) and pull side trim forwards a little.

Fig 3: Removing Side Trim

G03124740

Courtesy of BMW OF NORTH AMERICA, INC.

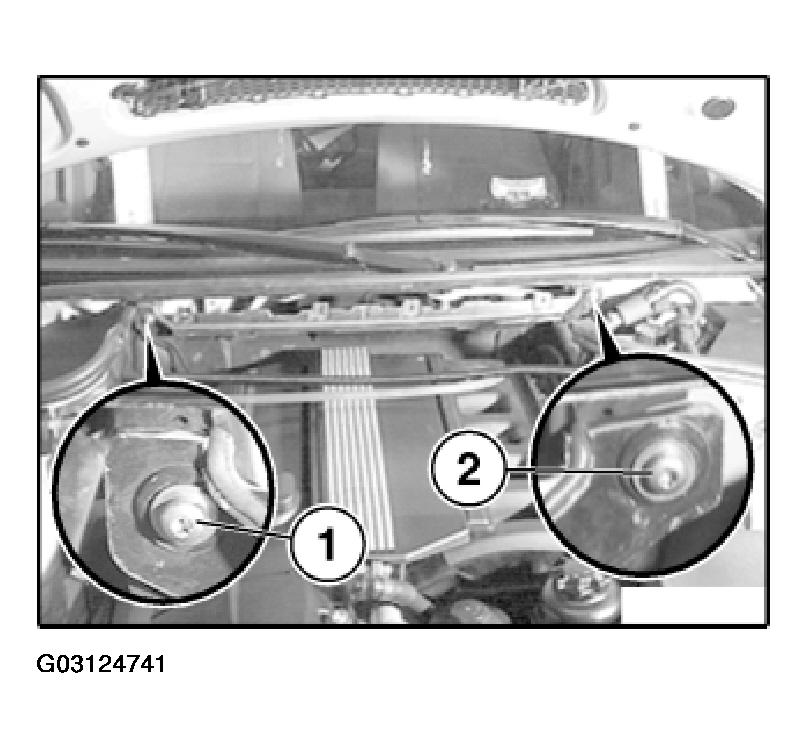

Remove screws (1) and (2).

Lift out heater bulkhead.

Fig 4: Removing Heater Bulkhead

G03124741

Courtesy of BMW OF NORTH AMERICA, INC.
