51 21 170 Removing and installing/replacing outside handle on left or right front door (up to 09/00): Removal:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Pull outside handle (1) max. outwards and approx. 2 mm towards rear.

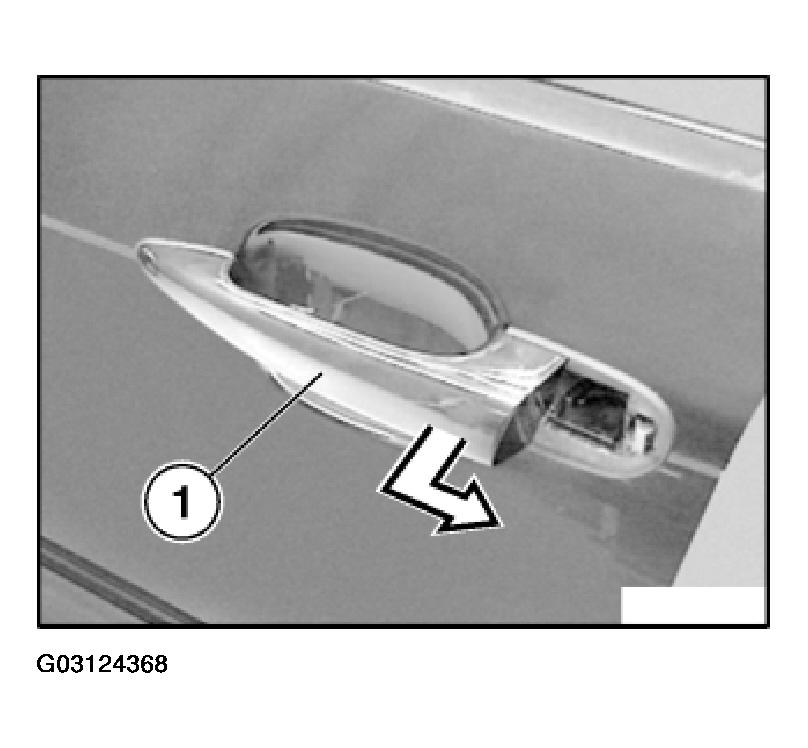

Fig 1: Pulling Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The lock mechanism is now engaged.

(A):

Press outside handle (1) approx. 4 mm towards inside.

(B):

Remove outside handle (1) towards rear/outside.

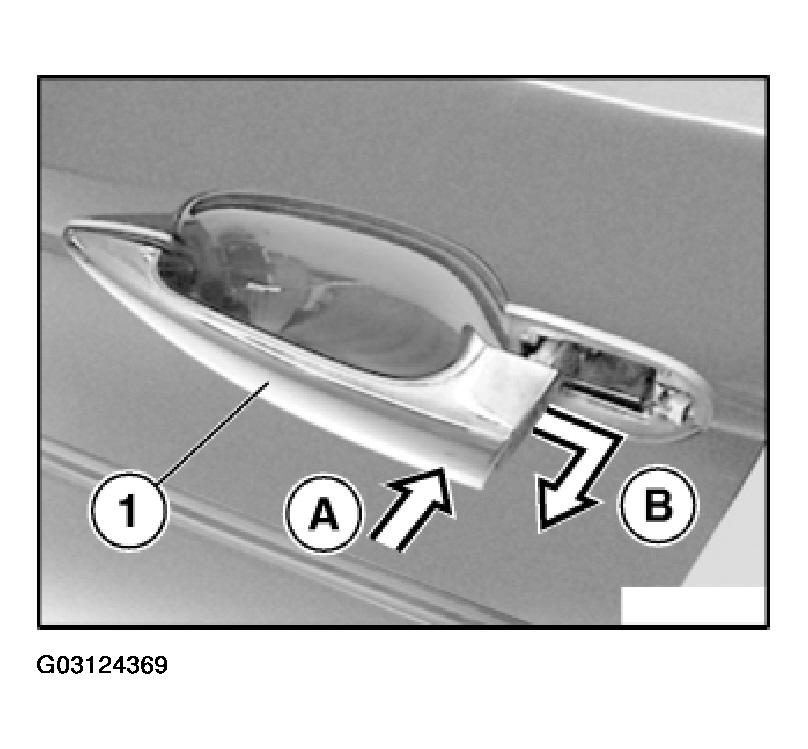

Fig 2: Pressing Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) and support (2) on outside handle (3) must not be damaged.

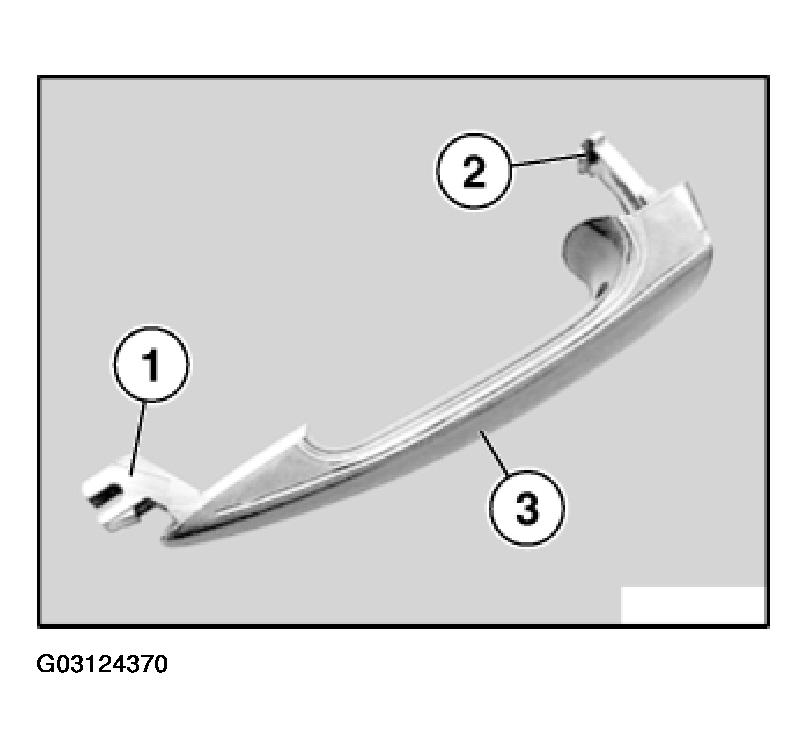

Fig 3: Installing Guide & Support On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.
