Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

00 7 500
24 0 090
24 1 050
33 1 307

Remove propeller shaft. See 26 11 000 Removing and installing propeller shaft - version with rear constant-velocity joint -

IMPORTANT: Propeller shaft is balanced as a unit.

Mark front propeller shaft relative to rear propeller shaft with paint stick.

Marking by means of engraving which causes surface damage (e.g. center mark) is not permitted.

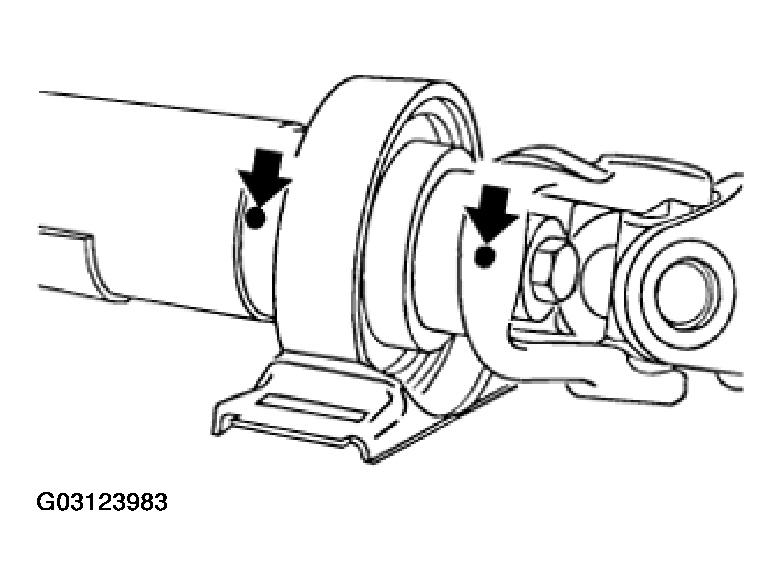

Fig 1: Marking Front Propeller Shaft Relative To Rear

G03123983

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Pull propeller shaft apart.

Installation:

Thread free from grease.

When pushing shaft together, make sure that markings match up.

Insert bolt (1) with thread-locking liquid. Tightening torque. Refer to PROPELLER SHAFT - TECHNICAL DATA - 330I, 330CI, 330XI .

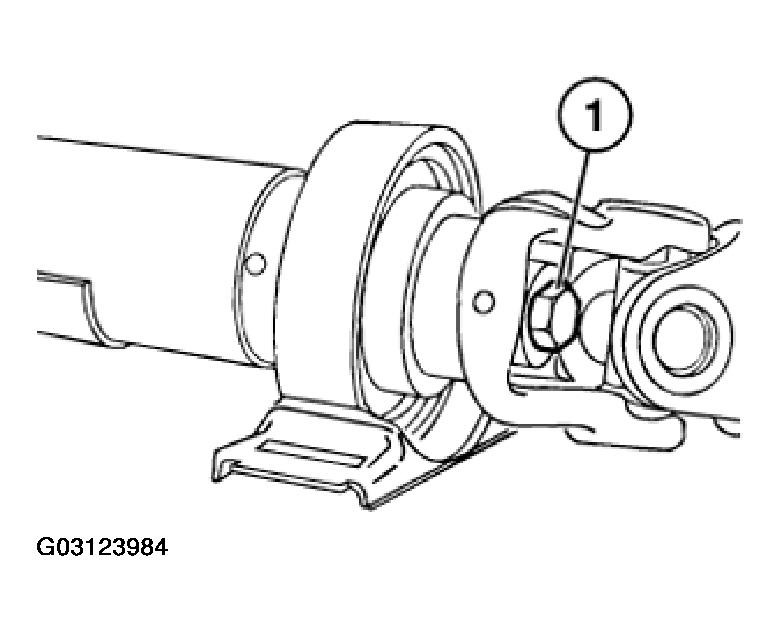

Fig 2: Identifying Propeller Shaft Releasing Screw

G03123984

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shim and dust gaiter.

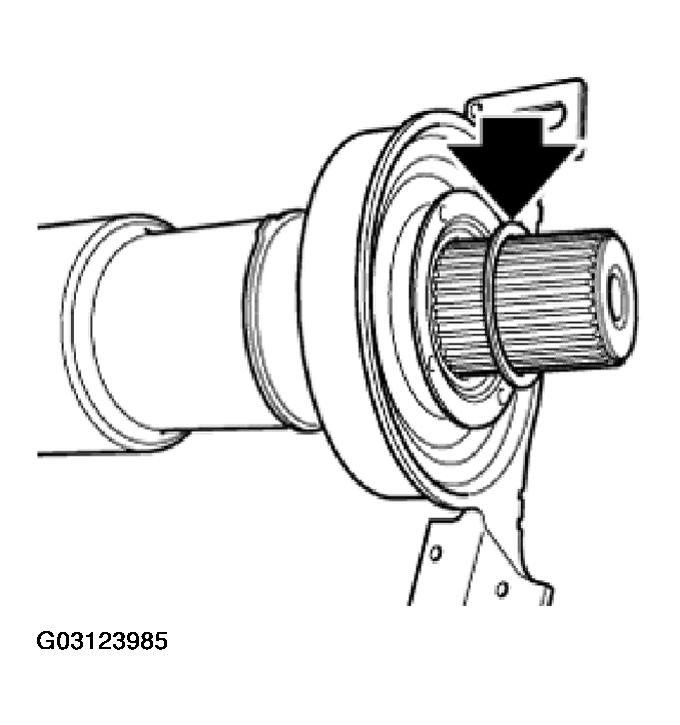

Fig 3: Removing Shim

G03123985

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off center bearing with special tool 00 7 500 / 33 1 307 and commercially available puller.

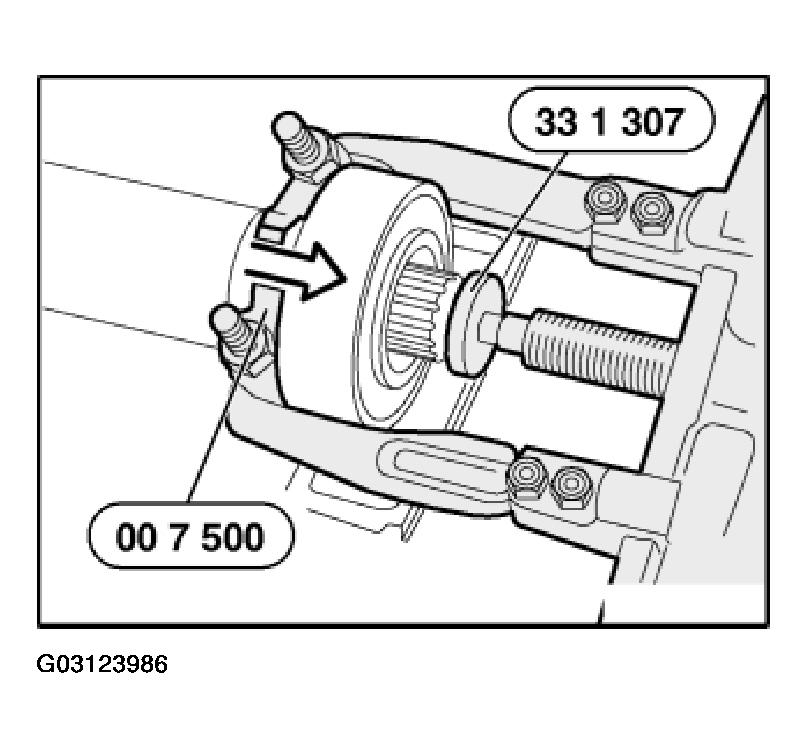

Fig 4: Pulling Center Bearing Using Special Tool 00 7 500 / 33 1 307 & Puller

G03123986

Courtesy of BMW OF NORTH AMERICA, INC.

Drive new center bearing firmly home with special tool 24 0 090 or 24 1 050.

NOTE: Bearing inside diameter 30 mm, use special tool 24 0 090.
Bearing inside diameter 35 mm, use special tool 24 1 050.

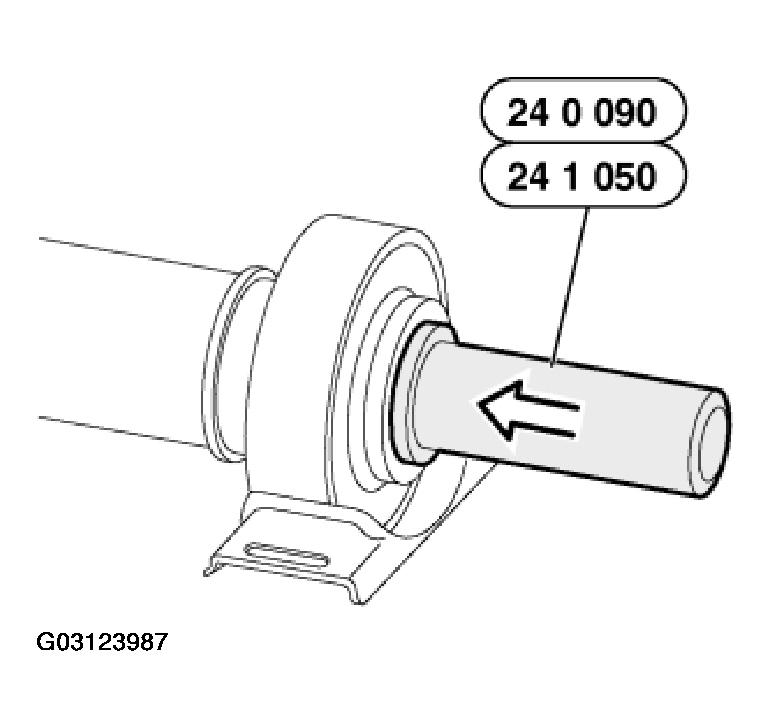

Fig 5: Driving New Center Bearing Using Special Tool 24 0 090 Or 24 1 050

G03123987

Courtesy of BMW OF NORTH AMERICA, INC.
