17 11 031 Replacing fan cowl (N42 / N40 / N45 / N46) (M54 manual gearbox)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

M54 only:

Lift out expansion rivets.

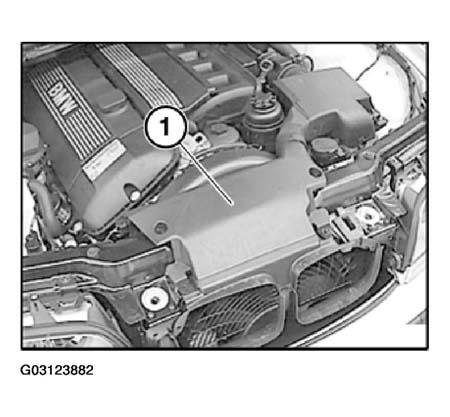

Remove intake hood (1).

Fig 1: Removing Intake Hood

G03123882

Courtesy of BMW OF NORTH AMERICA, INC.

N42 / N40 / N45 / N46 only:

Remove intake hood.

Remove front splash guard.

N42 / N40 / N45 / N46 only:

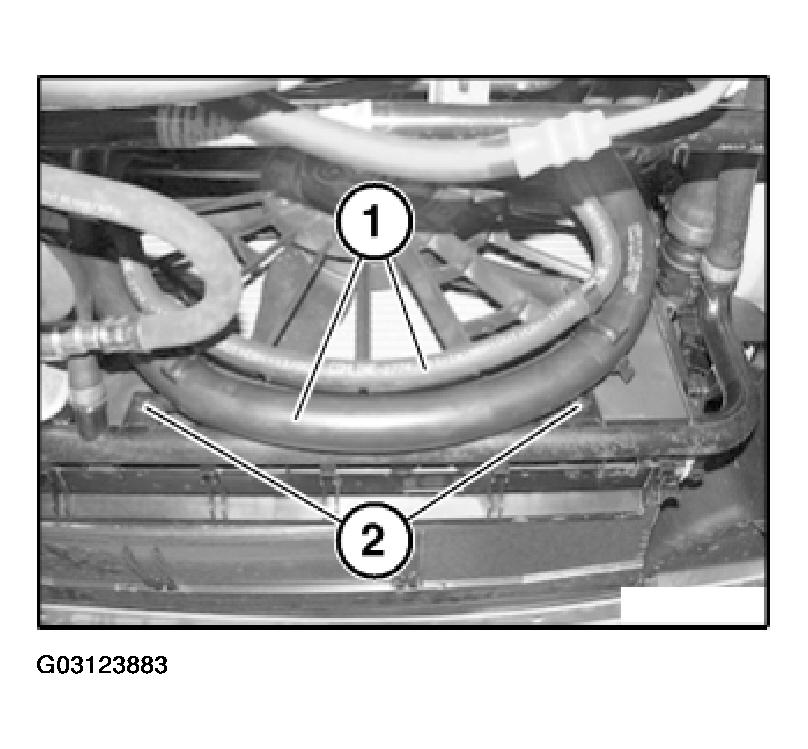

Remove both hoses (1) from holders.

Lever out expansion rivets (2).

Fig 2: Removing Both Hoses From Holders

G03123883

Courtesy of BMW OF NORTH AMERICA, INC.

N42 / N40 / N45 / N46 only:

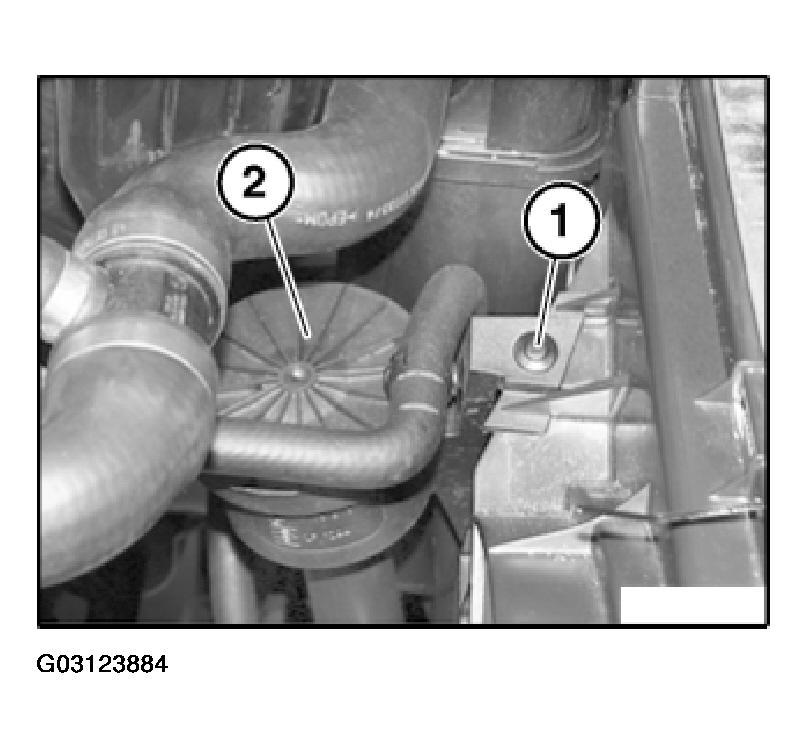

Lift out expansion rivet (1).

Remove secondary air filter housing (2) from fan cowl.

Fig 3: Removing Secondary Air Filter Housing From Fan Cowl

G03123884

Courtesy of BMW OF NORTH AMERICA, INC.

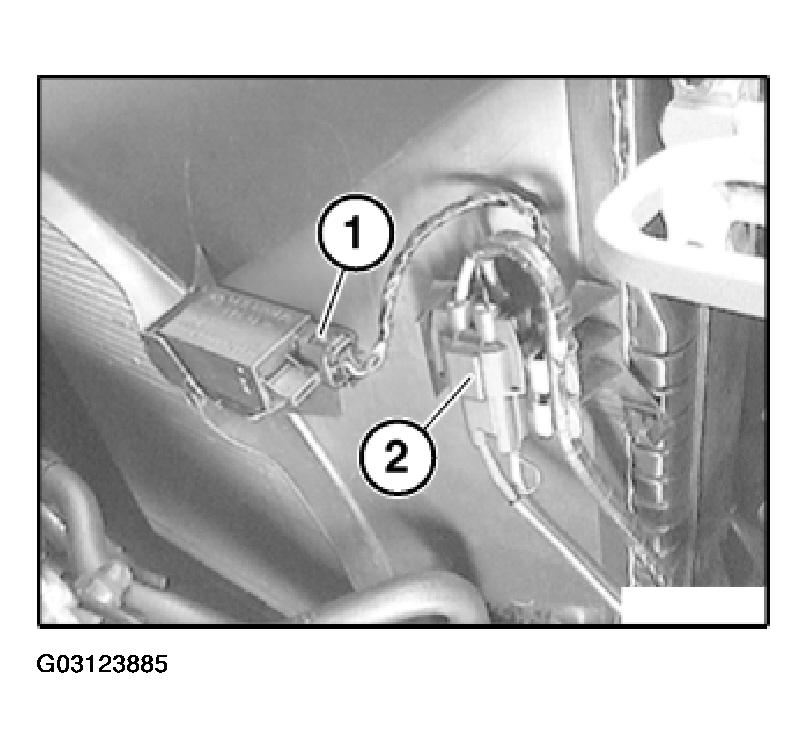

Detach plug (1) from AUC sensor.

Unfasten plug connection (2) and disconnect.

Fig 4: Detaching Plug From AUC Sensor

G03123885

Courtesy of BMW OF NORTH AMERICA, INC.

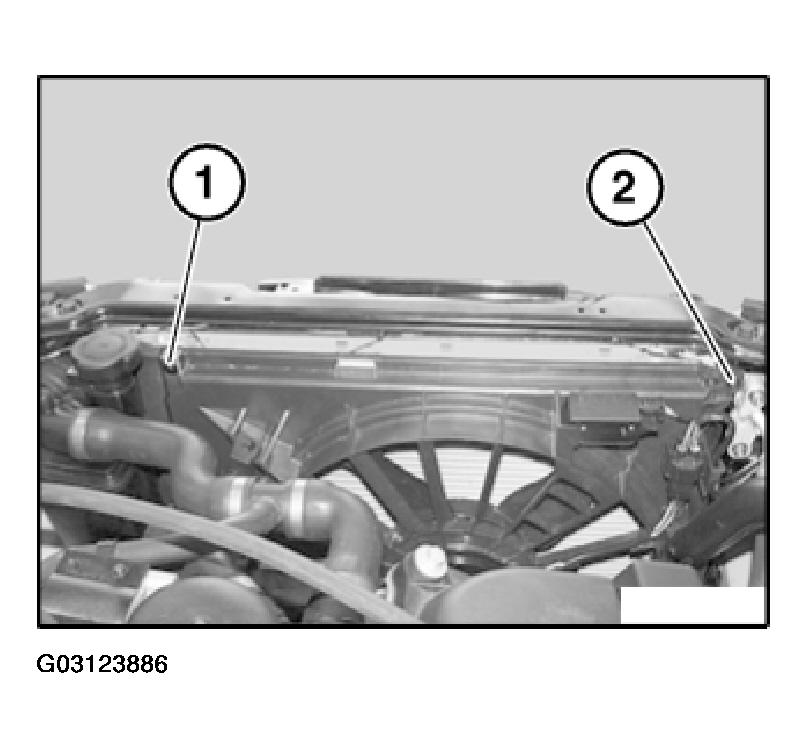

Lift out expansion rivet (1).

Release screw (2).

Lift out fan cowl.

Fig 5: Lifting Out Expansion Rivet

G03123886

Courtesy of BMW OF NORTH AMERICA, INC.
