11 22 500 Removing and installing or replacing flywheel (M52 / S52 / M52TU / M54 / S54)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 2 170

(clutch removed)

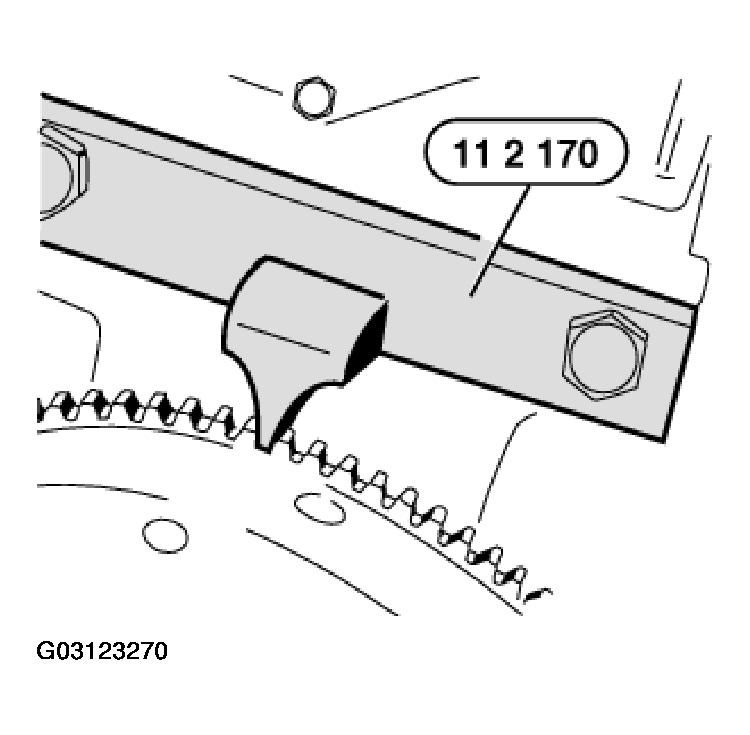

Lock flywheel with special tool 11 2 170.

Fig 1: Locking Flywheel With Special Tool

G03123270

Courtesy of BMW OF NORTH AMERICA, INC.

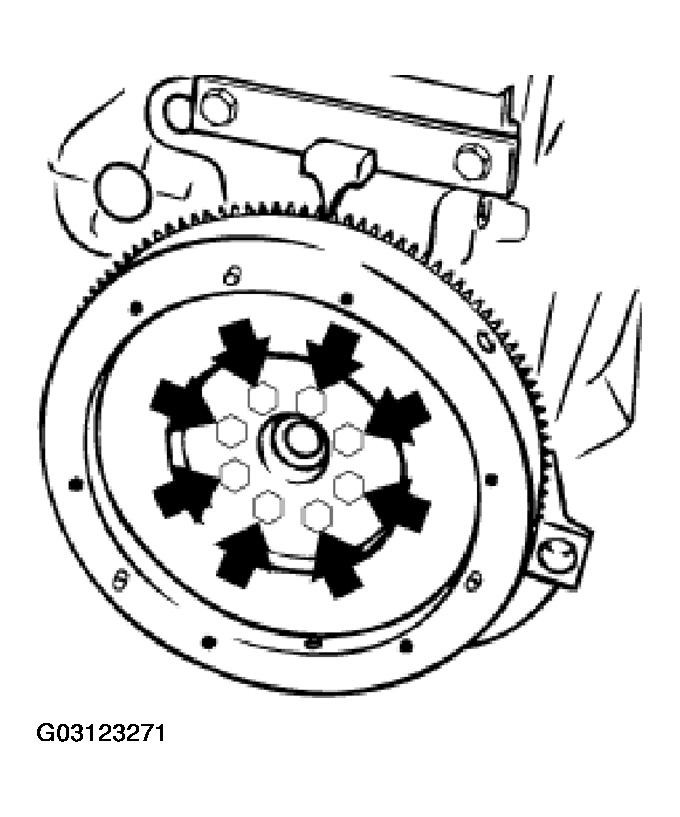

Unfasten screws and remove flywheel.

Fig 2: Unfastening Screws & Removing Flywheel

G03123271

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

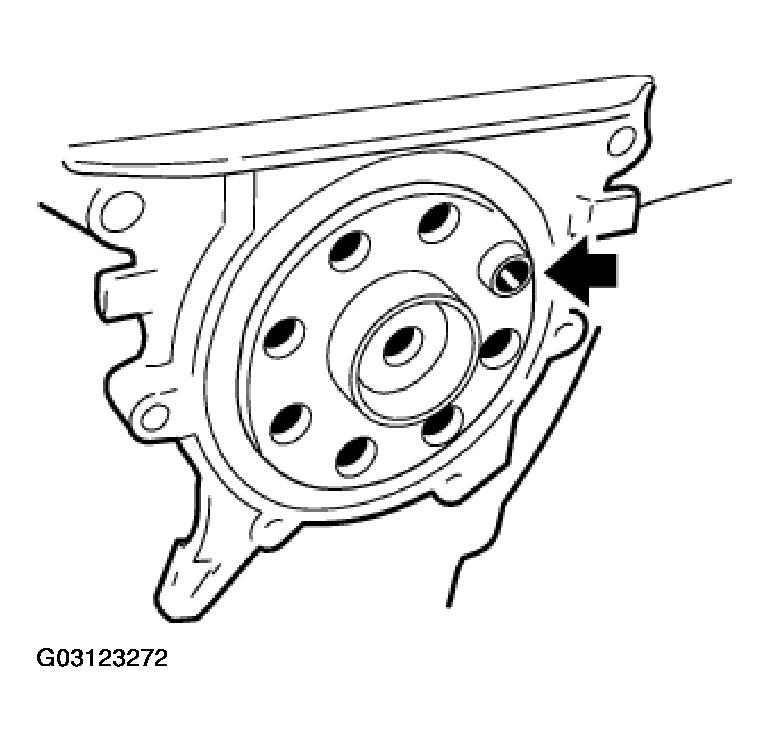

Check dowel sleeve for damage and correct installation position.

Fig 3: Checking Dowel Sleeve For Damage & Correcting Installation Position

G03123272

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

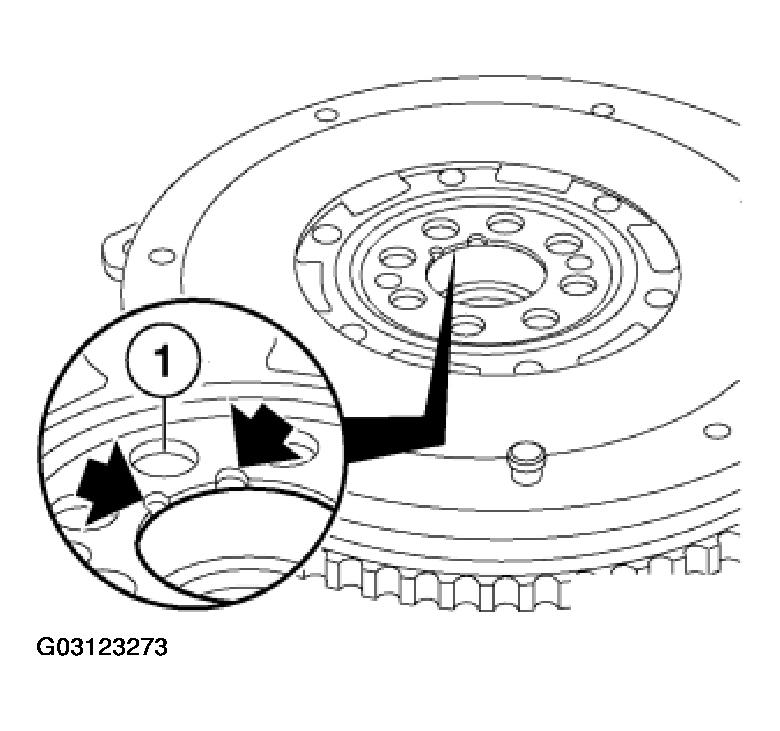

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

Fig 4: Position of dowel sleeve

G03123273

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

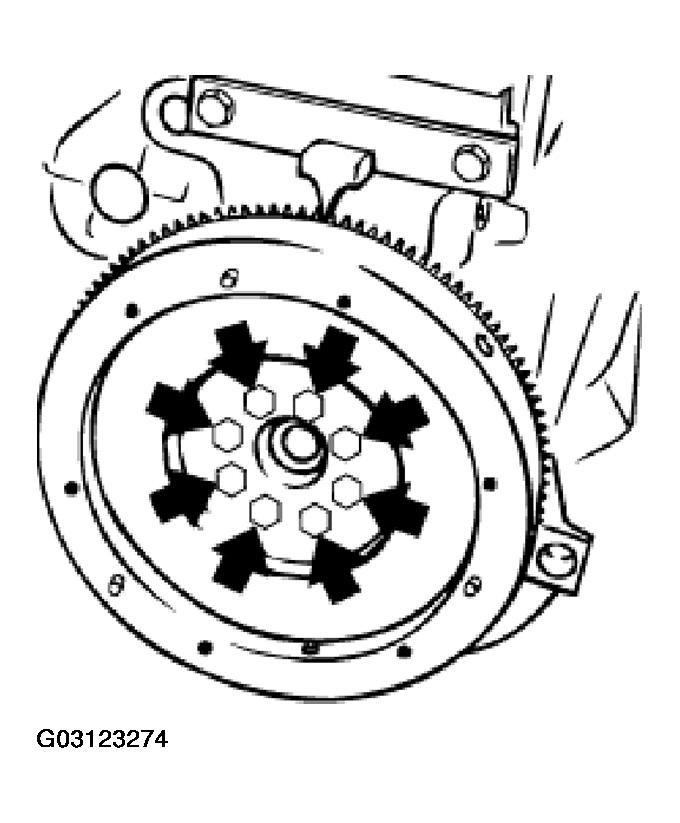

Clean thread and install new micro-encapsulated screws.
Tightening torque. Refer to ENGINE - TIGHTENING TORQUES - 3-SERIES (E46) .

Fig 5: Cleaning Thread & Installing New Micro-Encapsulated Screws

G03123274

Courtesy of BMW OF NORTH AMERICA, INC.
