00 00 250 BMW engine oil service incl. supplementary service (M54 / M56)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Work step 00 00 250 comprises the engine oil and supplementary services.
Only the engine oil service will be described in these repair instructions.

Engine oil service:

Release and tighten down main flow oil filter cap with a socket only.

When the main flow oil filter cap is opened, engine oil flows from the oil filter housing back into the oil sump.

Release main flow oil filter cap and remove towards top.

Installation:

Tightening torque. Refer to ENGINE - TIGHTENING TORQUES - 3-SERIES (E46) .

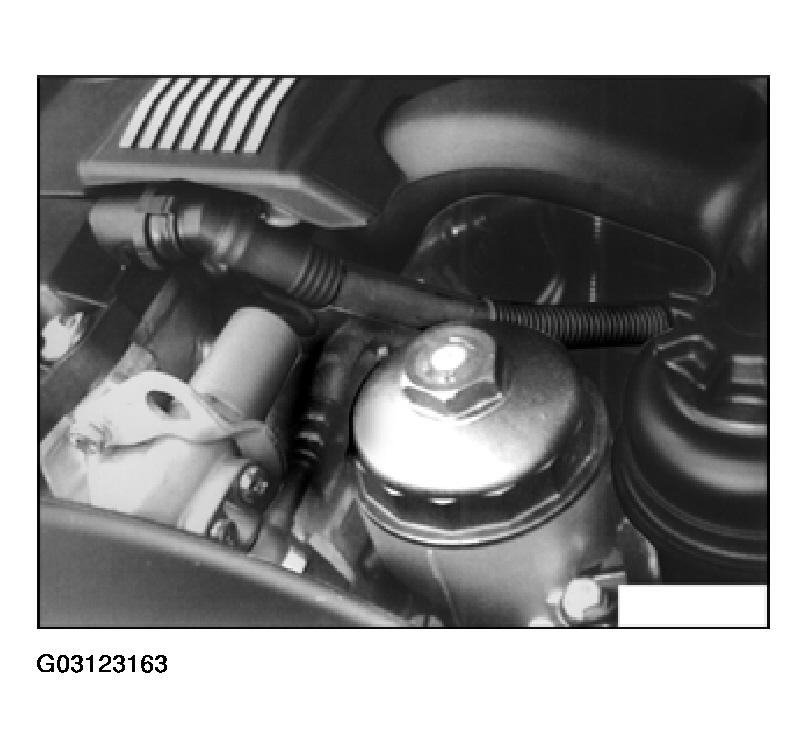

Fig 1: Identifying Main Flow Oil Filter Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace and oil O-ring.

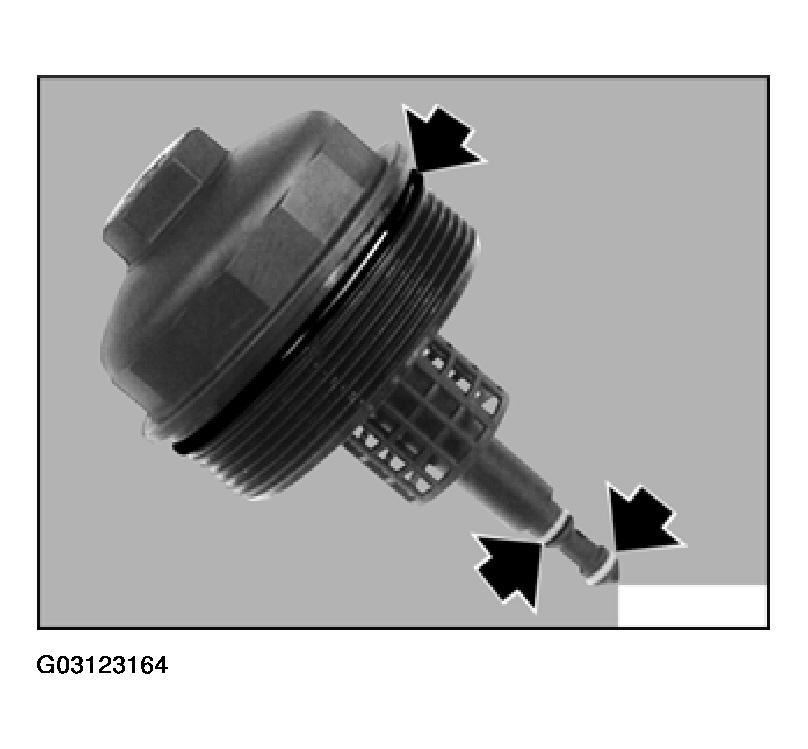

Fig 2: Replacing Oil O Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Drain or draw off engine oil.

When engine oil is drained, open cap in engine underguard.

Open oil drain plug and drain off engine oil.

Installation:

Replace sealing ring.

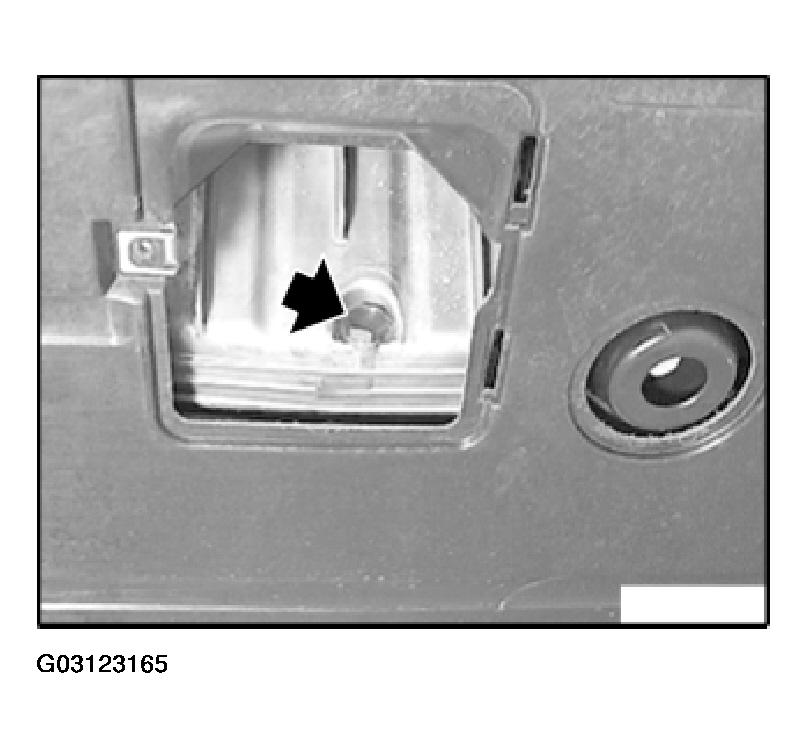

Fig 3: Identifying Engine Underguard Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Complete vehicle and set in horizontal position.

Top up engine oil.

Start engine and run at idle until oil indicator lamp goes out.

Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.
