17 2 010 Set of adapters

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Note: For oil dispensers for flushing oil coolers of automatic transmissions.

Transmission: A4S 310R, A5S 300J, A5S 310Z, A5S 325Z, A5S 360R, A5S 390G, A5S 440Z, A5S 560Z, GA6 HP19Z, GA6 HP26Z, GA6 HP32Z.

SI number: 1 12 96 (103).

Order number: 17 2 010 .

Set of adapters.

Consisting of:

= 17 2 011 Adapter

Note: For connecting oil cooler lines to oil dispensing unit - transmission: A5S 310Z, A5S 560Z, A5S 325Z.

In conjunction with: 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019.

= 17 2 021 Retaining plate.
Note: For Adapter 17 2 011 - transmission: A5S 325Z.
= 17 2 012 Adapter (2 x).
Note: For connecting oil cooler lines to oil dispensing unit - transmission: A4S 310R.

In conjunction with: 17 2 015, 17 2 016, 17 2 017, 17 2 01, 17 2 018, 17 2 019.
= 17 2 013 Banjo bolt (2 x).
Note: M18x1.5 thread with nut and seal for connecting oil cooler lines to oil dispensing unit - transmission: A5S 440Z.

In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019.
= 17 2 014 Banjo bolt (2 x).
Note: M16x1.5 thread with nut, seal and threaded piece for connecting oil cooler lines to oil dispensing unit - transmission: A5S 300J.

In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019.
= 17 2 015 Connecting piece.
Note: For Tecalemit oil dispensing unit.
= 17 2 016 Connecting piece.
Note: For Horn oil dispensing unit.
= 17 2 017 Coupling (2 x).
= 17 2 018 Hose, long.
= 17 2 019 Hose, short.

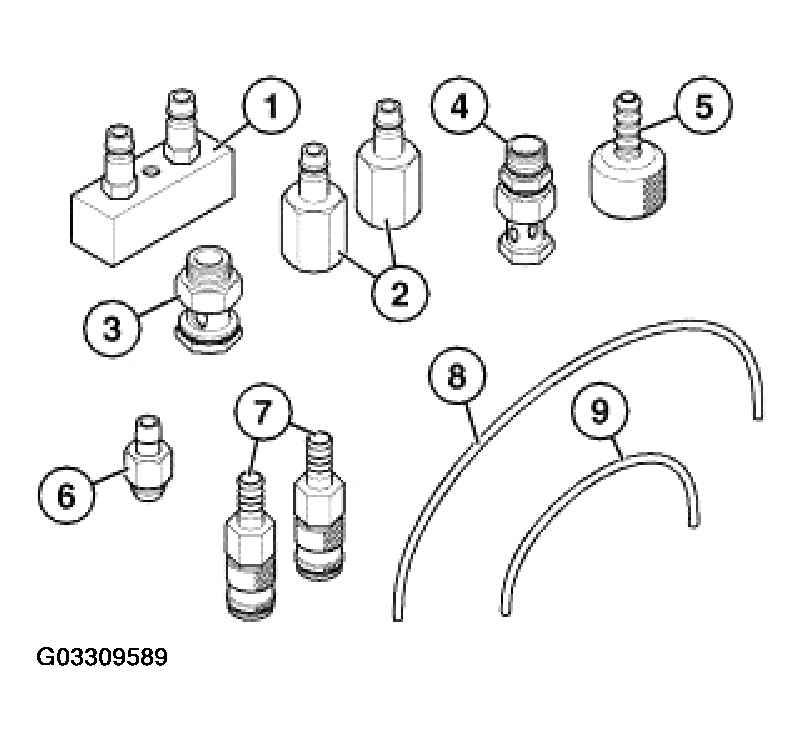

Fig 1: Identifying Special Tool 17 2 010 Set Of Adapters

Courtesy of BMW OF NORTH AMERICA, INC.
