17 0 100 Tester

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For checking engine cooling system for water leaks. For checking radiator cap.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, R50, R52, R53, RR1.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17.

SI number: 01 07 02 (884).

Order number: 17 0 100 .

Tester.

Consisting of:

= 17 0 101 Pump.
= 17 0 102 Hose with quick-connect coupling.
= 17 0 103 Adapter.
Note: For radiator cap (normal thread).
= 17 0 104 Adapter.
Note: For radiator cap (normal thread).
= 17 0 105 Adapter.
Note: For radiator cap (sawtooth thread).
= 17 0 106 Adapter.
Note: For radiator cap (sawtooth thread).
= 17 0 107 Adapter.
Note: For radiator cap R50 / W10.
= 17 0 108 Adapter.
Note: For radiator cap R50 / W10.
= 17 0 109 Adapter.
Note: For radiator connection R53/W11, R50/W17 Adapter corresponds to 17 0 051.
= 17 0 111 Adapter.
Note: For radiator cap R53/W11, R50/W17 Adapter corresponds to 17 0 052.
= 17 0 112 Case.
= 17 0 113 Adapter.
Note: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988).
= 17 0 114 Adapter.

Note: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988).

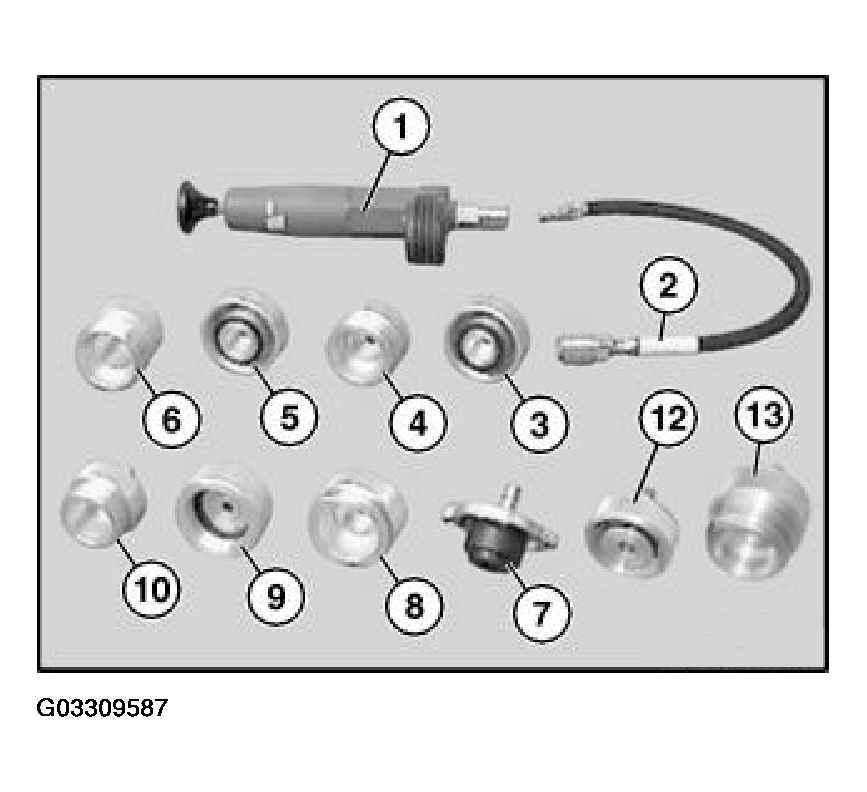

Fig 1: Identifying Special Tool 17 0 100 Tester

Courtesy of BMW OF NORTH AMERICA, INC.
