17 0 000 Tester

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Note: For checking cooling system for leaks and function of pressure relief valve in radiator cap. Replaced by 17 0 100.

Storage location: A43, C17.

Order number: 17 0 000 .

Tester.

Consisting of:

1 = 17 0 001 Adapter.
Note: For checking pressure relief valve in radiator cap / model series: all, except E28.
2 = 17 0 002 Tester without adapter.
Note: Pressure range 0-2.5 bar / model series: all, except E28.
3 = 17 0 003 Screw neck.
Note: For screw-on radiator caps (normal thread)/ model series: E28, E30, E31, E32 Engine: all, except M51.
4 = 17 0 004 Adapter.
Note: For screw -on radiator caps (normal thread) / model series: E28, E30, E32 / Engine: M51.
5 = 17 0 005 Screw neck.
Note: For screw -on radiator caps (buttress thread) / model series: E31, E32, E34, E36, E38, E39.
7 = 17 0 007 Adapter.
Note: For checking expansion tank cap / model series: E31, E32, E34, E36, E38, E39.
8 = 17 0 008 Pressure hose.
9 = 17 0 009 Adapter for radiator expansion tank.

Note: Model series: E36 / Model: M3 US Engine W10.

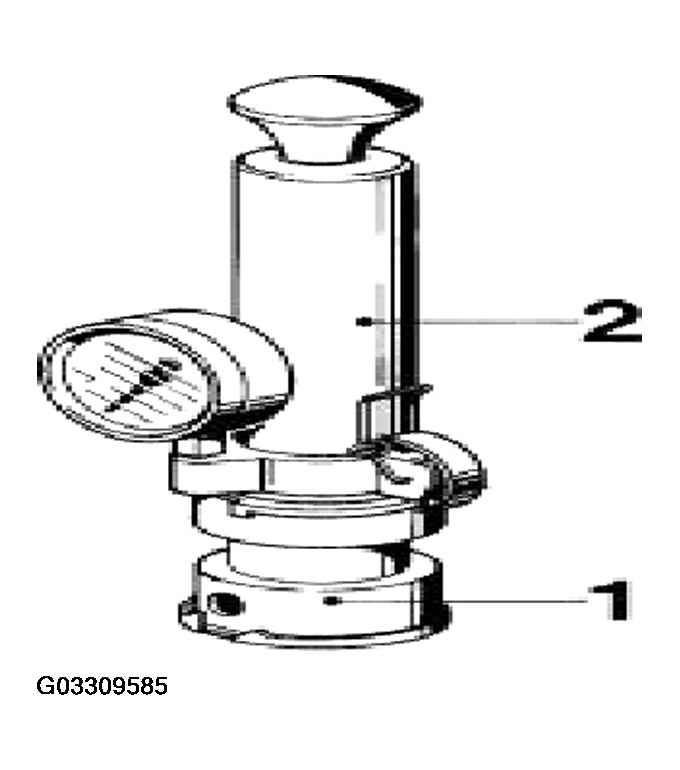

Fig 1: Identifying Special Tool 17 0 000 Tester

Courtesy of BMW OF NORTH AMERICA, INC.
