13 6 050 Set of adapters for BMW DIS

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For measuring oil and fuel pressures.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17.

Storage location: A16, B16.

SI number: 1 12 94 (859).

Order number: 13 6 050 .

Set of adapters for BMW DIS.

Consisting of:

= 13 6 051 Connecting hose.
Note: For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS.
= 13 6 052 Reducer.
Note: For pipe elbows 24 0 023, 24 0 024, 24 0 140.

In conjunction with: 13 6 051.
= 13 6 053 Reducer for adapter 16 1 300
In conjunction with: 13 6 051.
= 13 6 054 Pipe elbow.
In conjunction with: 13 6 051, 11 4 050.
= 13 6 055 Reducer for T -pieces 13 6 056 and 13 6 057.
In conjunction with: 13 6 051.
= 13 6 056 T-piece for 6 mm dia. line.
= 13 6 057 T-piece for 8 mm dia. line.

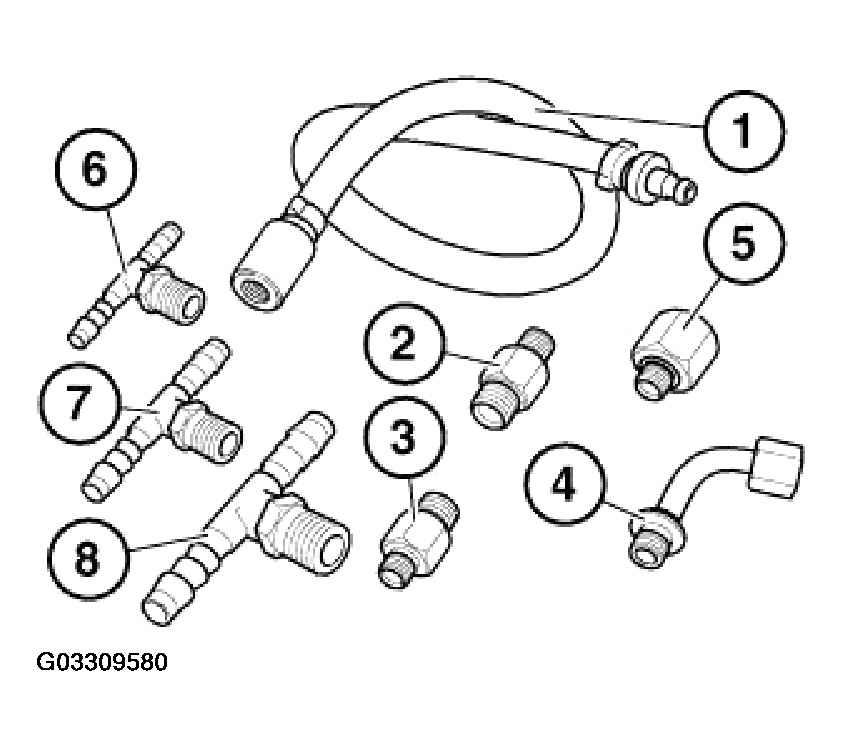

Fig 1: Identifying Special Tool 13 6 050 Set Of Adapters For BMW DIS

Courtesy of BMW OF NORTH AMERICA, INC.
