13 5 250 Extractor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For removing injection nozzles or injectors from cylinder head.

Engine: M47, M47TU, M57, M57TU, M67, N73, W10, W11.

Storage location: B38, C38.

SI number: 1 06 98 (306).

Order number: 13 5 250  .

Extractor.

Consisting of:

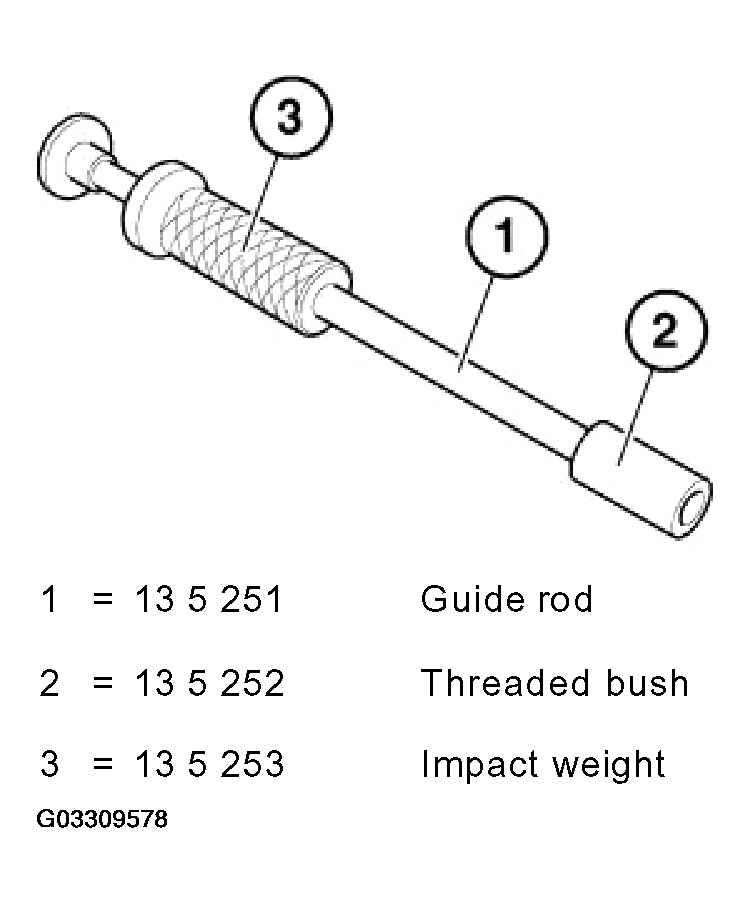

Fig 1: Identifying Special Tool 13 5 250 Extractor
G03309578Courtesy of BMW OF NORTH AMERICA, INC.
