13 3 060 Fixture

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Note: For checking fuel pressure on K-Jetronic and L-Jetronic as well as oil pressure.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17.

Order number: 13 3 060 .

Fixture.

Consisting of:

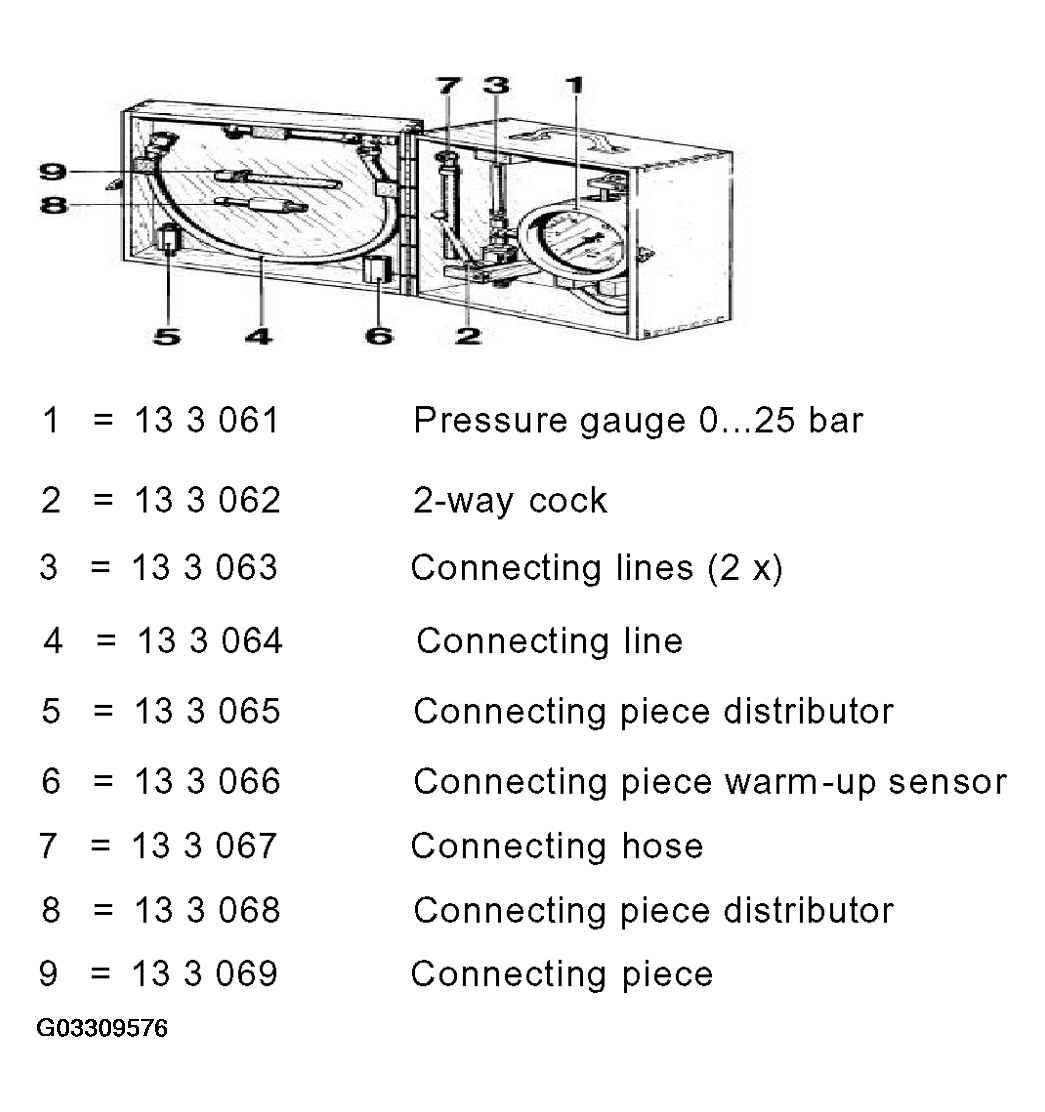

Fig 1: Identifying Special Tool 13 3 060 Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

In conjunction with: BMW SERVICE TESTER.
