11 9 000 Cylinder head expander tool

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: Assembly stand 00 1 450.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17.

Storage location: Single.

SI number: 1 03 02 (833).

Order number: 11 9 000 .

Cylinder head expander tool.

Consisting of:

= 11 9 001 Fixture.
= 11 9 002 Rod.
= 11 9 003 Sliding block with M10 thread.
= 11 9 004 Tab.
= 11 9 005 Quick tensioner.
= 11 9 006 Aluminium profile insert.
= 11 9 007 Slide.
= 11 9 008 Profile plastic part.
= 11 9 009 Lever.
= 11 9 11 Hook.
= 11 9 012 Valve spring cage.
Note: Engine M41, M51, S50.
= 11 9 013 Valve spring cage.
Note: Engine M43, M73.
= 11 9 014 Valve spring cage.
Note: Engine M44, M52, M54, M56, M62, S52, S54, S62.
= 11 9 015 Valve spring cage.
Note: Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73.
= 11 9 016 Valve spring cage.
Note: Engine M21, M40.
= 11 8 421 Valve spring cage.

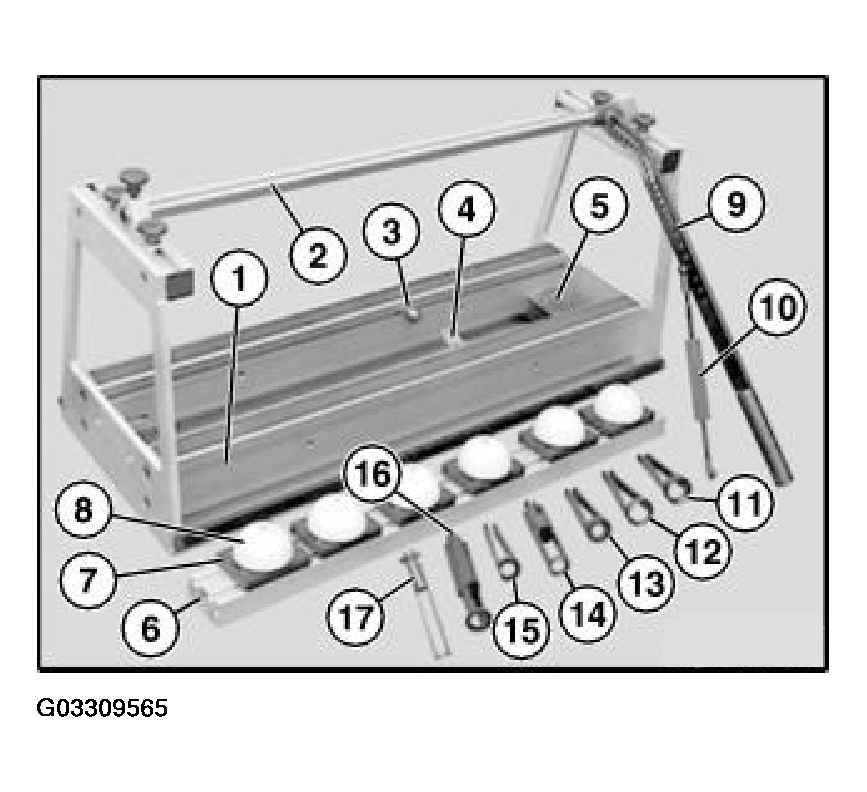

Fig 1: Identifying Special Tool 11 9 000 Cylinder Head Expander
Courtesy of BMW OF NORTH AMERICA, INC.

Note: Engine: W10, W11, W17.
= 11 9 017 Valve spring cage.
Note: Engine N52.
