11 8 500 Puller

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Note: To remove guide tube for spark plugs.

Engine: W10, W11.

SI number: 1 02 02 (823).

Order number: 11 8 500 .

Puller.

Consisting of:

= 11 8 501 Weight.
= 11 8 502 Clamping jaws.
Note: 4 x.
= 11 8 503 Hexagon socket head cap screw.
= 11 8 504 Adapter.
= 11 8 505 Holding sleeve.
= 11 8 506 Taper with washer and nut.

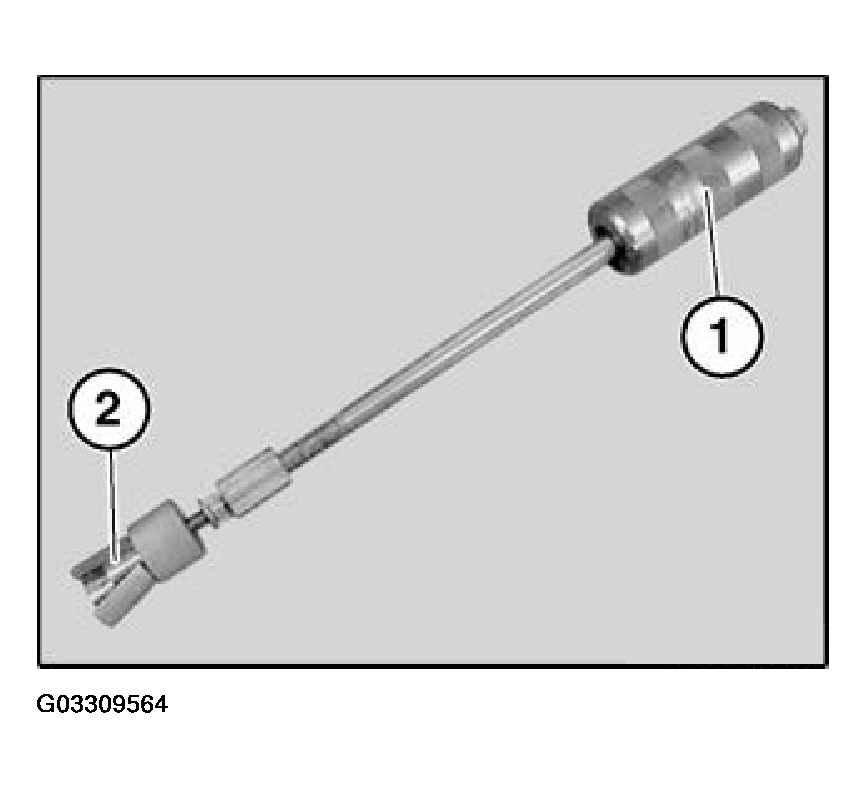

Fig 1: Identifying Special Tool 11 8 500 Puller

Courtesy of BMW OF NORTH AMERICA, INC.
