11 8 430 Pressure-testing fixture

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Note: For testing the cylinder head for leaks.

Engine: W10, W11.

SI number: 1 02 02 (823).

Order number: 11 8 430 .

Pressure-testing fixture.

Consisting of:

= 11 8 431 Cover strips.
Note: 2 x.
= 11 8 432 Cover plate with screws.
= 11 8 433 Screws.
Note: 10 x M10 x 80 mm.

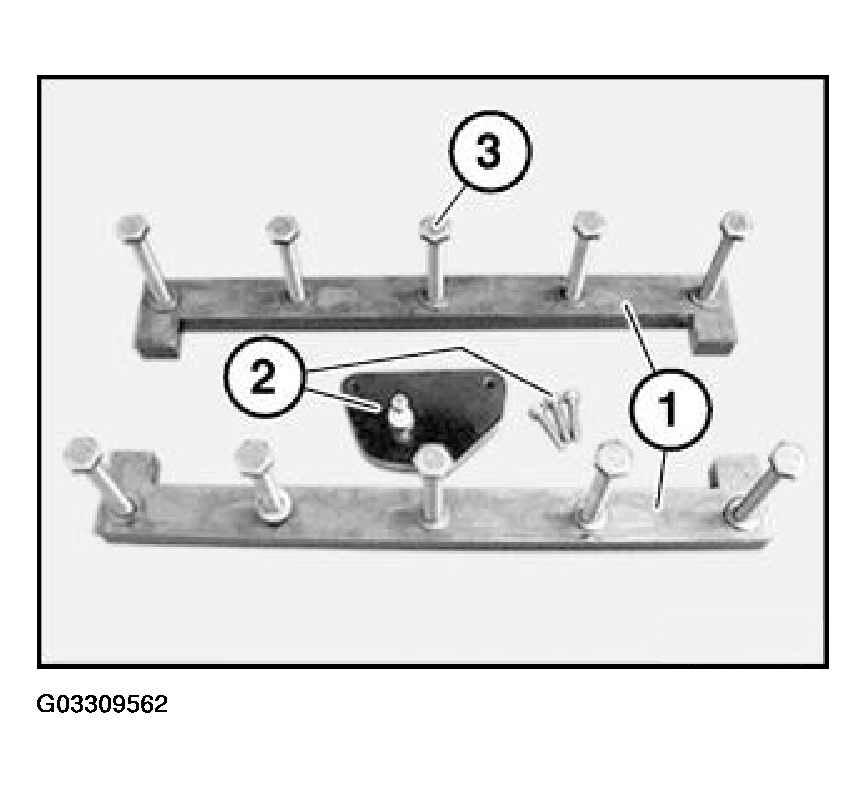

Fig 1: Identifying Special Tool 11 8 430 Pressure-Testing Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
