11 6 390 Guide mandrels (2)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For installing connecting rods with piston

Engine: W10, W11, W17.

SI number: 1 02 03 (949).

Order number: 11 6 390 .

Guide mandrels (2).

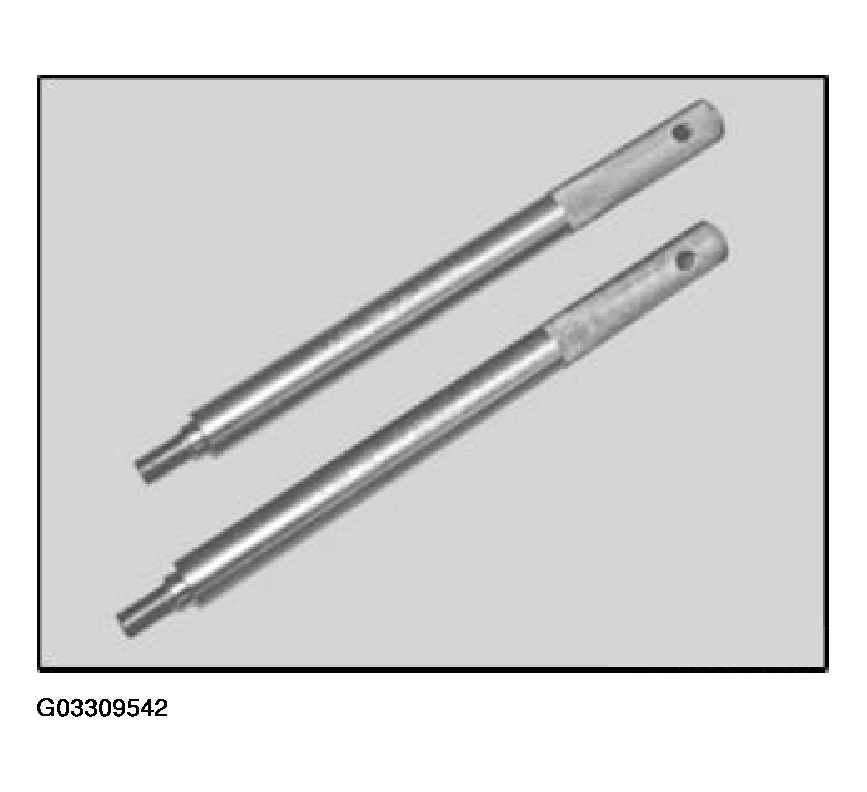

Fig 1: Identifying Special Tool 11 6 390 Guide Mandrels

Courtesy of BMW OF NORTH AMERICA, INC.
