11 2 000 Puller

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For crankshaft sprocket.

Engine: M10, M30, M50, M52, M60, M62, M70, M73, N73, S14, S38, W10, W11.

Storage location: B9, C42.

Order number: 11 2 000 .

Puller.

Consisting of:

= 11 2 001 Bell housing.
= 11 2 002 Plate.
Note: Engine: M10, M30, S14, S38, N73.
= 11 2 003 Spindle.
Note: Engine: M10, M30, M70, M73, S14, S38, N73.
= 11 2 004 Plate.
Note: Engine: M50, M52, M60, M62.
= 11 2 005 Spindle 165 mm.
Note: Engine: M50, M52, M60, M62.
= 11 2 006 Plate.
Note: Engine: M70, M73, N73.
= 11 2 007 Thrust piece.
Note: Engine: N73.

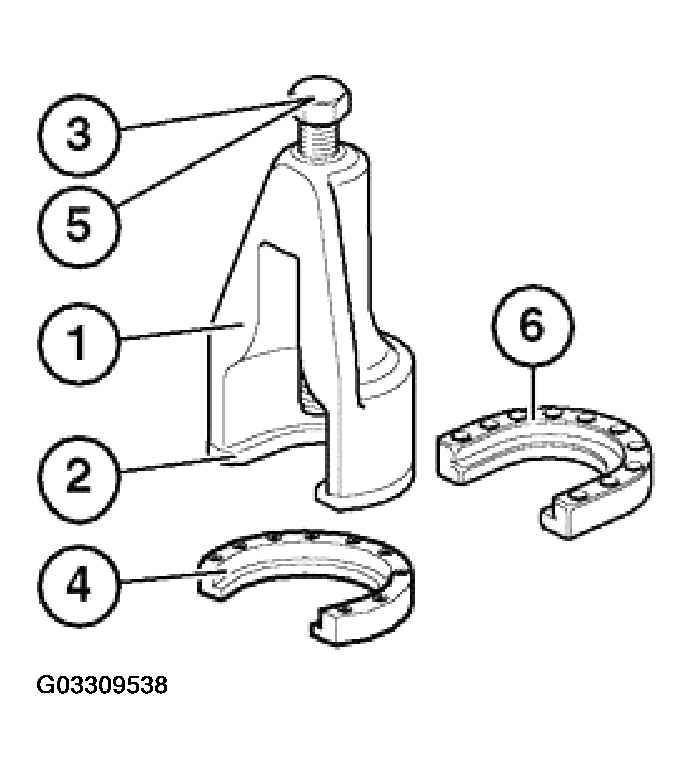

Fig 1: Identifying Special Tool 11 2 000 Puller

Courtesy of BMW OF NORTH AMERICA, INC.
