11 0 220 Compression test kit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For all petrol/gasoline and diesel engines.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17.

SI number: 1 09 92 (558).

Order number: 11 0 220 .

Compression test kit.

Consisting of:

16 = 11 0 239 Adapter.
Note: Engine M67, M67TU.

11 0 221 Compression recorder for diesel engines.

11 0 222 Test probe.

Note: For compression recorder 11 0 221 and 11 0 160 / Engine: M21, M41, M47, M51, M57.

In conjunction with: 11 0 240 .

11 0 223 Test sheets (100 x).

Note: For compression recorder for 11 0 221.

11 0 224 Compression recorder for petrol/gasoline engines.

11 0 226 Test probe.

Note: For compression recorder.

11 0 224 and 11 0 160 / engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S50US, S52US, S62.

In conjunction with: 11 0 240 .

11 0 228 Rubber taper with fitting.

Note: For compression recorder 11 0 224 and 11 0 160 / engine: M10, M20, M30.

In conjunction with: 11 0 240 .

11 0 229 Test charts (100 x).

Note: For compression recorder.

11 0 224.

11 0 231 Case.

Note: With foam inlay for compression recorder.

11 0 233 Non-return valve.

11 0 234 Filter 3 x 3 mm.

11 0 235 Test probe, screw-in.

Note: For measuring "absolute compression" at all cylinders, engine: S14, S38, S50B30, S50B32, S50US, S52US, S54.

In conjunction with: DIS and DIS pressure sensor.

11 0 236 Test probe.

Note: For compression recorder 11 0 221 or DIS pressure sensor / engine: M47, M57, M57TU.

11 0 237 Adapter.

Note: For measuring "absolute compression" at all cylinders. Engine: W17.

In conjunction with: 11 0 221, 11 0 235 or DIS pressure sensor, 11 0 235.

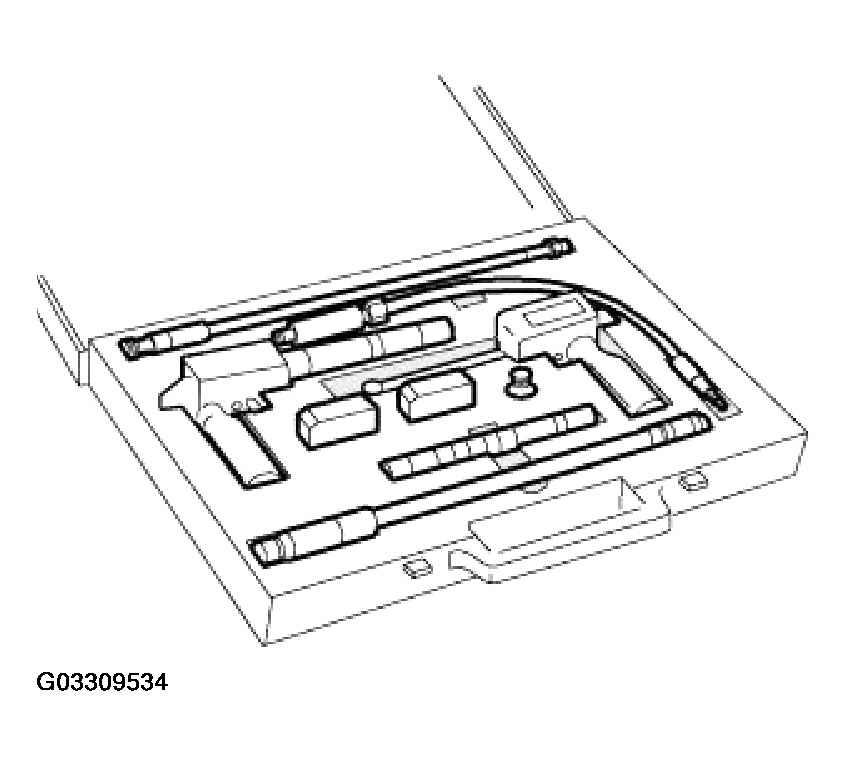

Fig 1: Identifying Special Tool 11 0 220 Compression Test Kit

Courtesy of BMW OF NORTH AMERICA, INC.
