65 13 080 Removing and installing/replacing rear speaker

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear left or right trim. Refer to 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

Remove screws (1).

Disconnect plug for speaker.

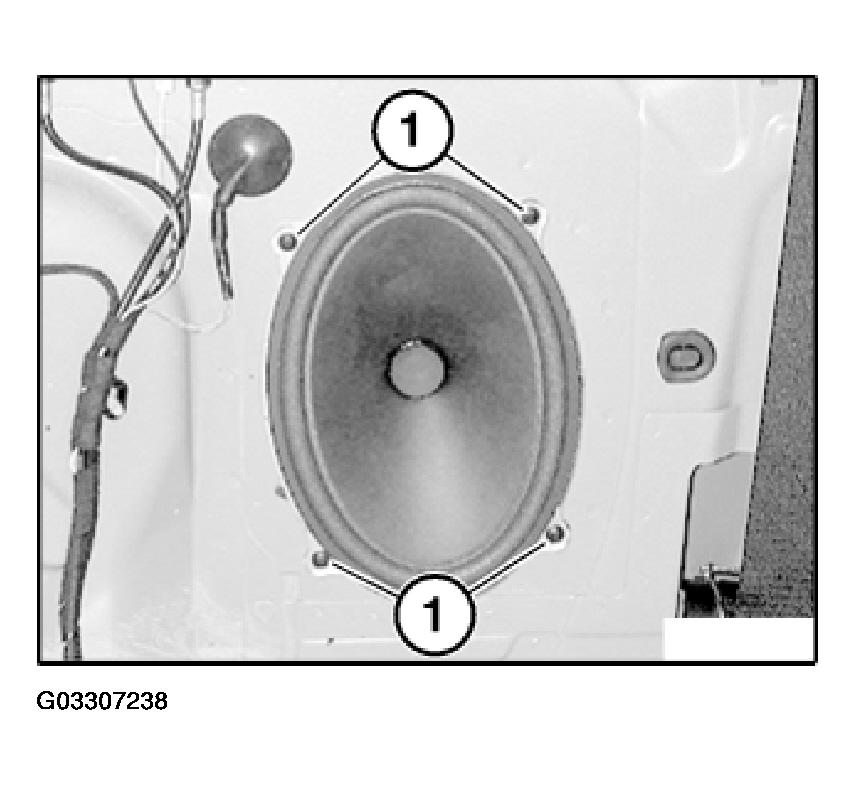

Fig 1: Identifying Rear Speaker Retaining Screws
G03307238Courtesy of BMW OF NORTH AMERICA, INC.
