65 24 030 Removing and installing/replacing TV amplifier (C-pillar, left and right)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Remove C-pillar trim panel. Refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (C-PILLAR) .

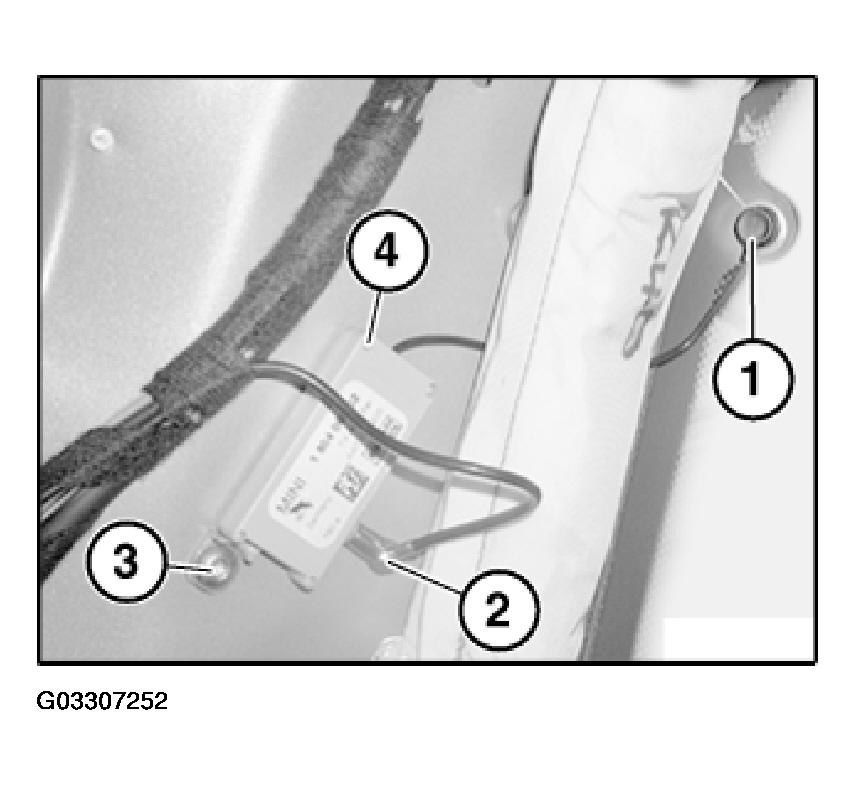

Disconnect window connector (1).
Disconnect antenna plug (2).
Remove Torx screw (3).
Tightening torque, refer to 65 24 2AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - Cooper (1.6L) R50/W10 .
Remove TV amplifier (4).
