65 24 020 Removing and installing/replacing blocking circuit (BMW Business/MINI Boost radio from 07/2004)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove side rear window frame trim. Refer to 51 49 003 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR WINDOW FRAME ON LEFT OR RIGHT .

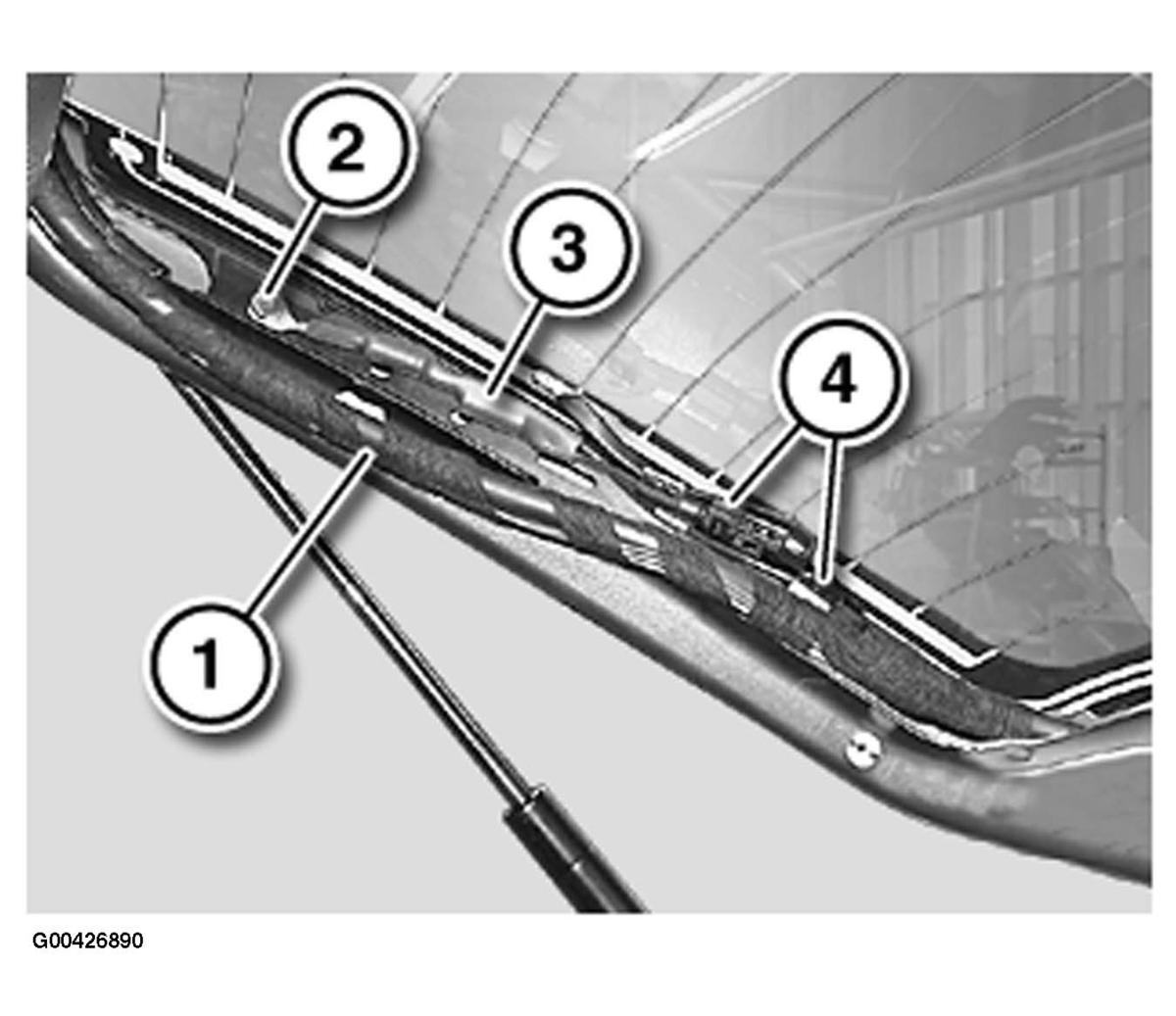

Unclip wiring harness (1) as illustrated.
Release screw (2).
Disconnect plug connections (4) and remove blocking circuit (3).
Installation:
If necessary, replace faulty clips.
Check installation position of wiring harness (1), correct if necessary.
