65 24 010 Removing and installing/replacing antenna amplifier
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear right trim. Refer to 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

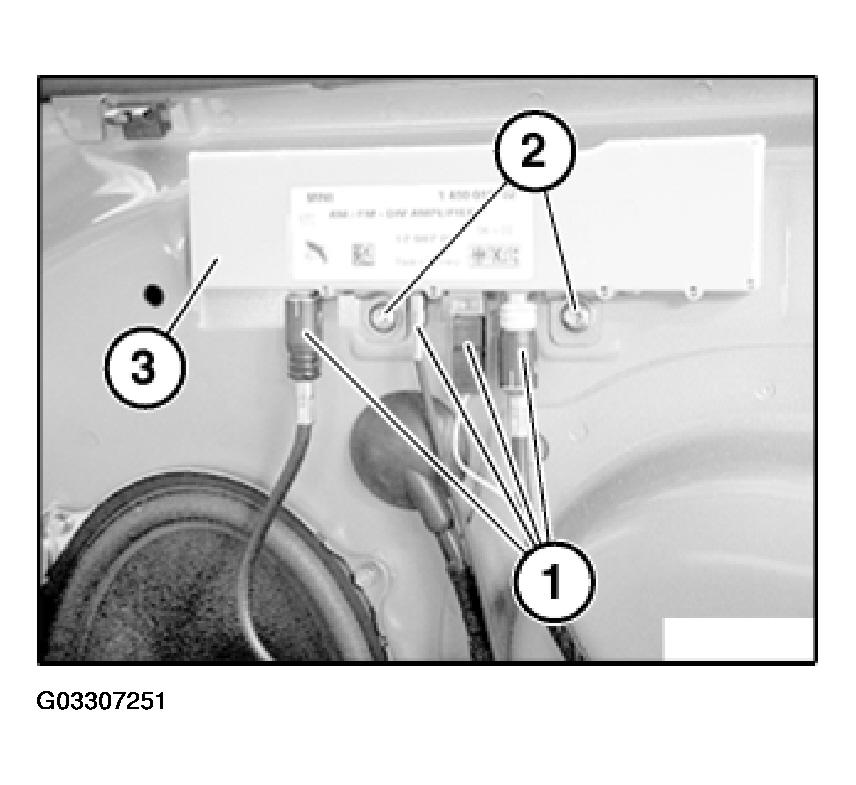

Disconnect plug connections (1).
Remove Torx screws (2).
Tightening torque, refer to 65 24 1AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - Cooper (1.6L) R50/W10 .
Remove antenna amplifier (3).
