65 11 030 Removing and installing/replacing radio receiver (built-in unit)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove cover strips for front center console. Refer to 51 16 198 REMOVING/INSTALLING OR REPLACING TRIM BETWEEN FRONT CENTER CONSOLE AND INSTRUMENT PANEL .

Release screws (1) and pull radio receiver back.

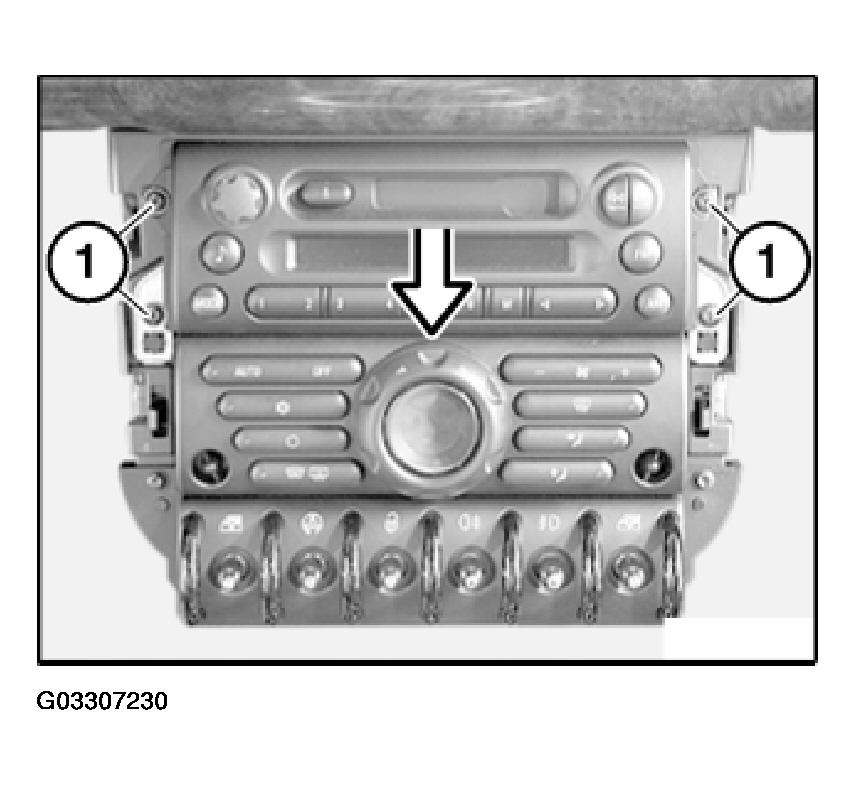

Fig 1: Locating Radio Receiver Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder (1) for radio wiring harness.

Unfasten plug connection (2) and disconnect.

Disconnect antenna plug (3) and remove radio receiver.

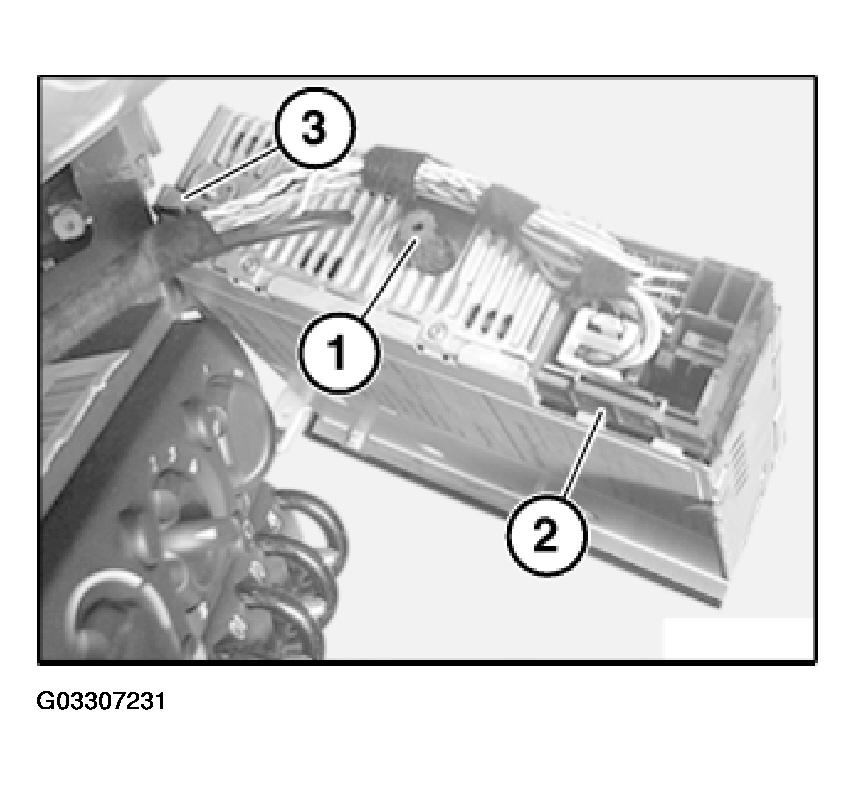

Fig 2: Removing Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.
