65 75 551 Removing and installing or replacing tilt sender (for burglar alarm)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Open tailgate.

Release clips (1) and remove left hand access panel (2).

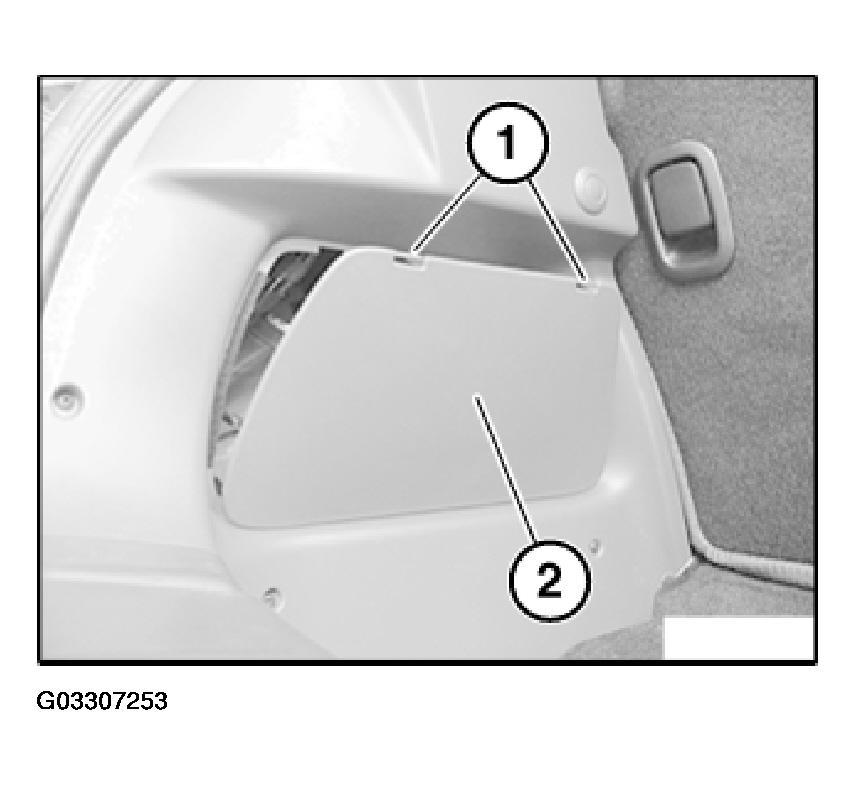

Fig 1: Identifying Clips On Left Hand Access Panel
G03307253Courtesy of BMW OF NORTH AMERICA, INC.

Remove bolts (1).

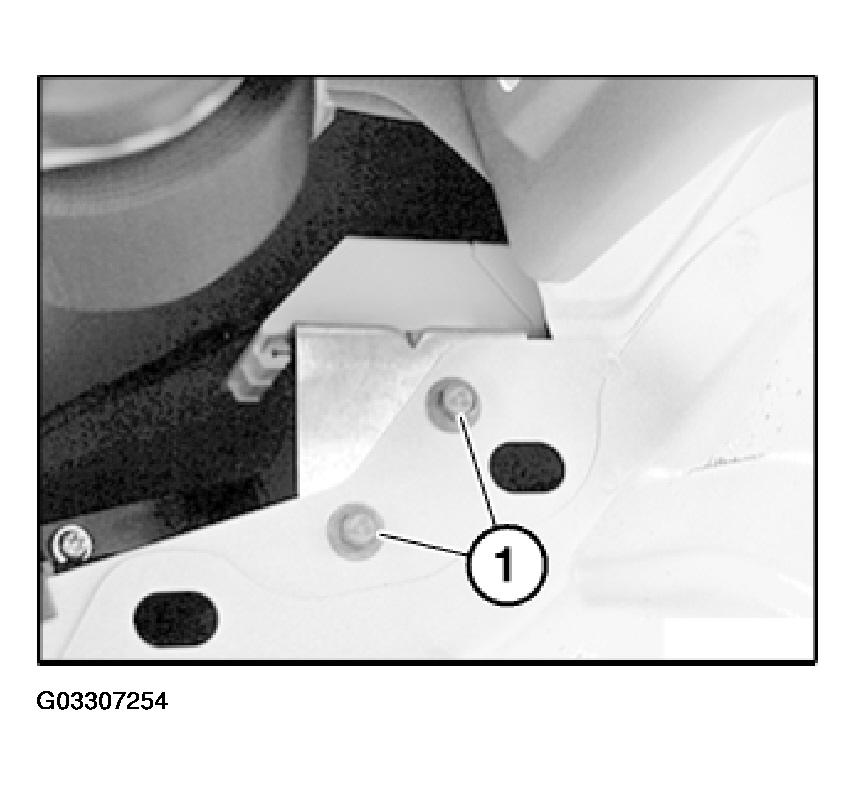

Fig 2: Locating Retaining Bolts
G03307254Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (1) and remove tilt sender.

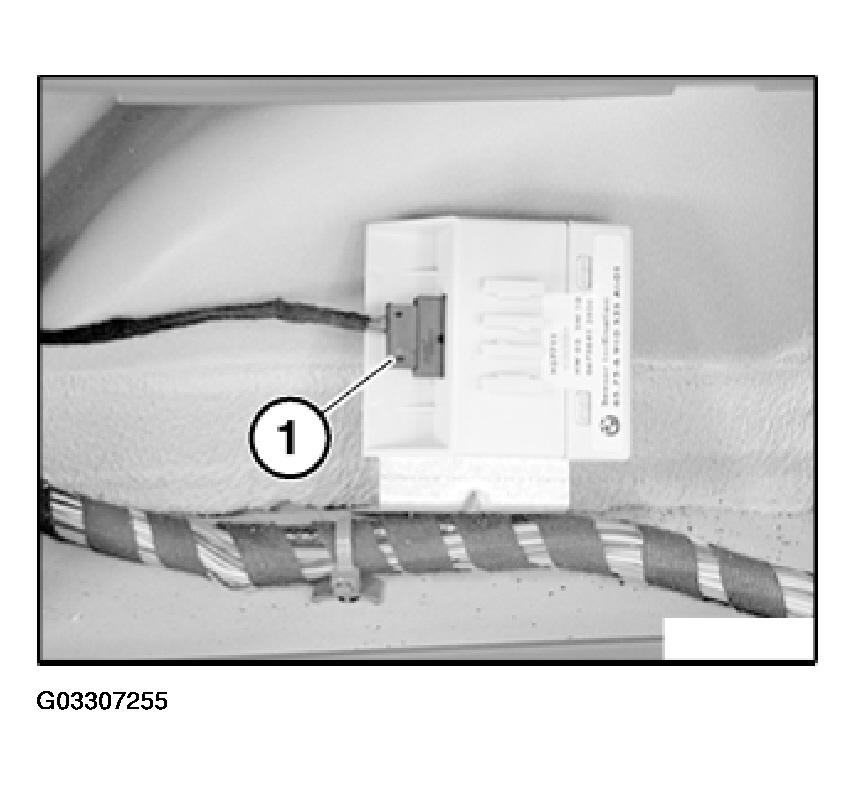

Fig 3: View Of Tilt Sender
G03307255Courtesy of BMW OF NORTH AMERICA, INC.
