65 20 020 Removing and installing/replacing roof aerial

Remove trims for rear roof pillars. Refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (C-PILLAR) .

Remove top trims on door pillars. Refer to 51 43 148 REMOVING AND INSTALLING OR REPLACING TRIM ON LEFT OR RIGHT DOOR PILLAR (TOP) .

Remove rear grab handles. Refer to 51 16 450 REMOVING AND INSTALLING OR REPLACING REAR GRAB HANDLE

Vehicles With Sunroof Only:

Remove rear sunroof finisher. Refer to 51 44 156 REMOVING AND INSTALLING/REPLACING SUNROOF FINISHER - REAR .

Unscrew aerial and remove.

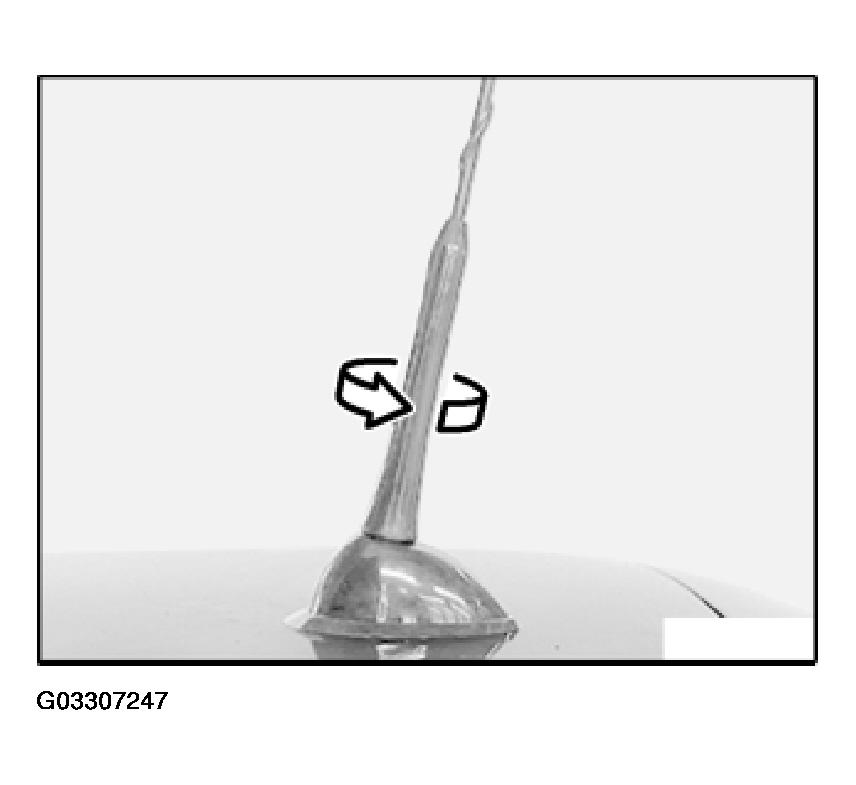

Fig 1: Removing Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate cover as shown to release and remove it.

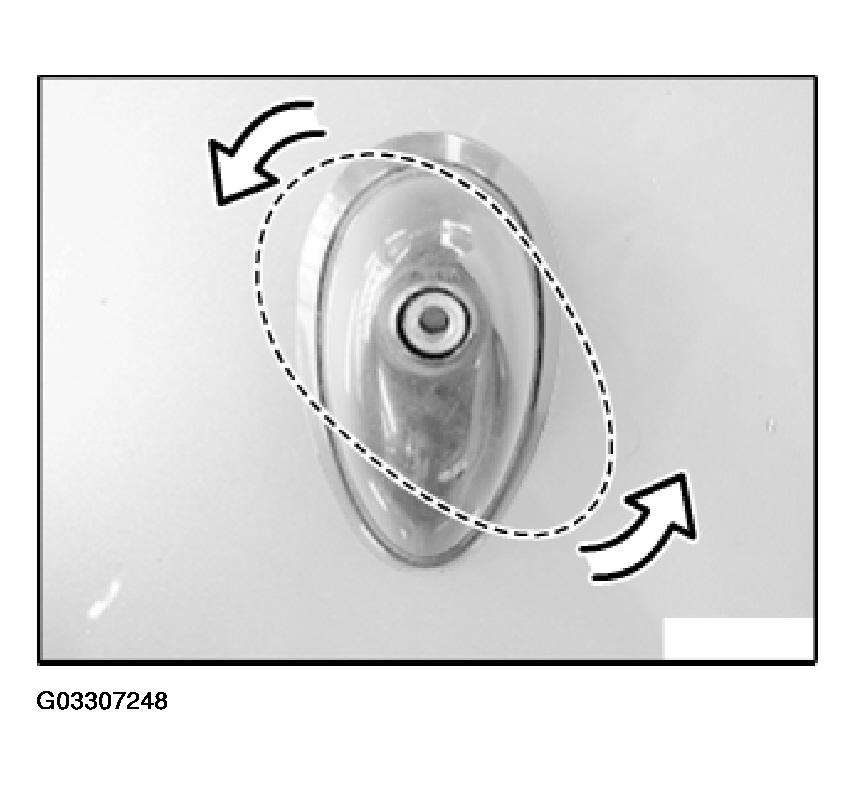

Fig 2: Aligning Cover For Removal

Courtesy of BMW OF NORTH AMERICA, INC.

Remove nut (1) and seal.

Tightening torque, refer to 65 24 3AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

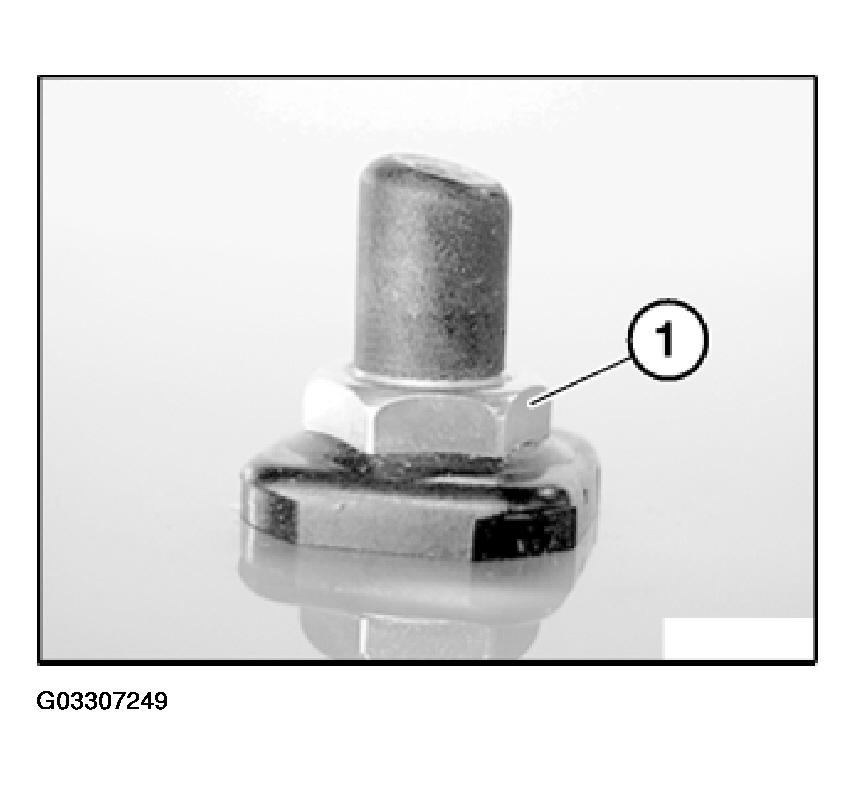

Fig 3: Identifying Aerial Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release antenna base from roof.

Disconnect connector (1).

Pull safety clip (2) in direction shown and disconnect connector (3).

Install Hint:

Ensure aerial base is positioned in its correct orientation (rearwards).

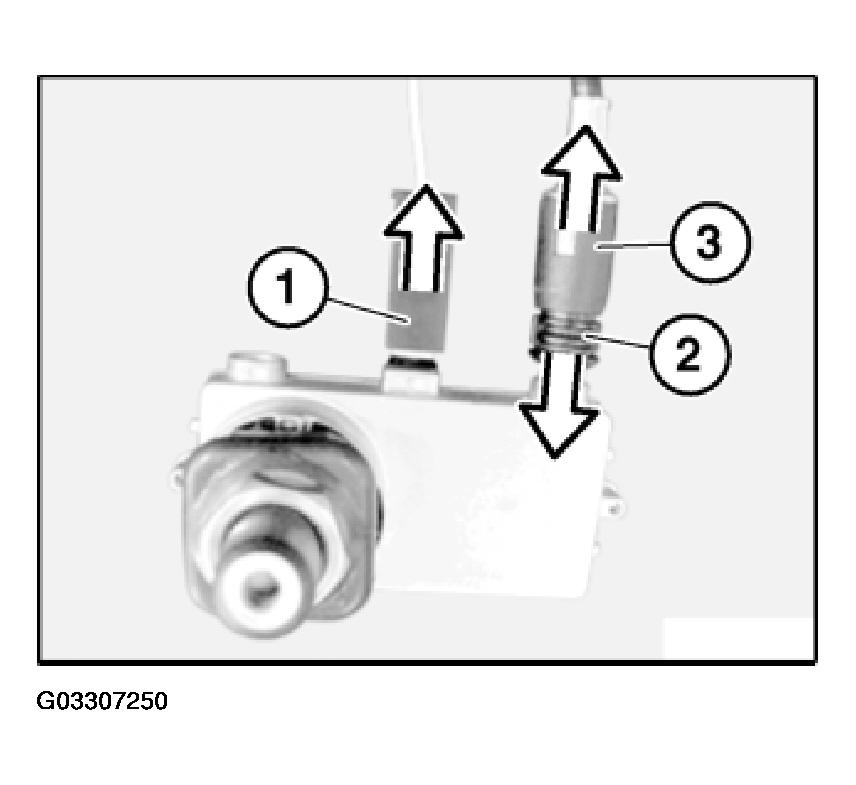

Fig 4: View Of Antenna Base
