63 99 451 Replacing light bulb for luggage compartment light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Release luggage compartment light.

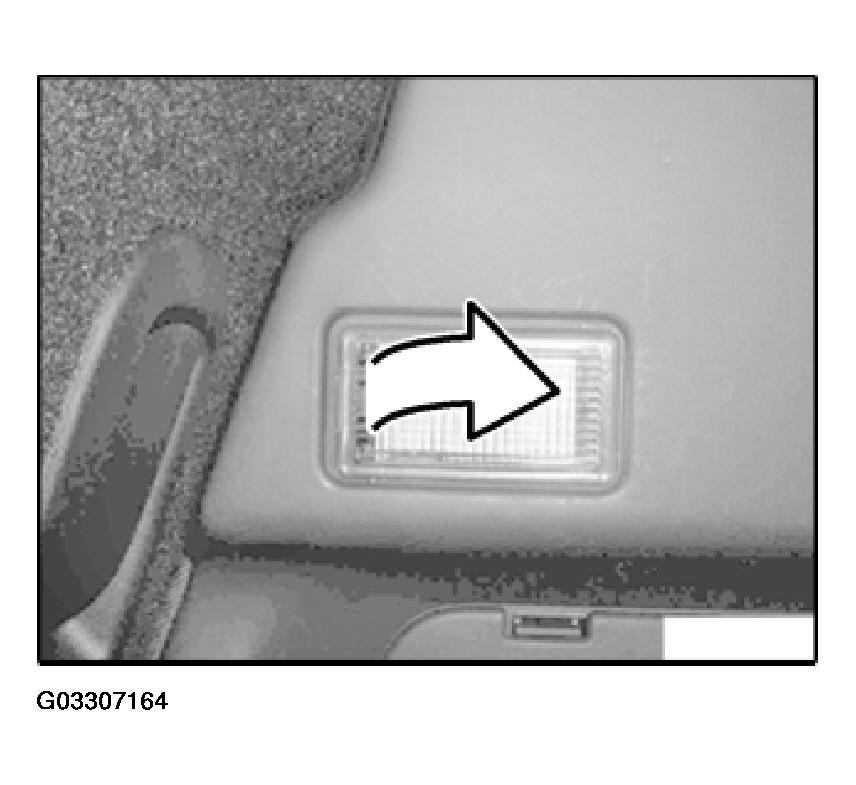

Fig 1: View Of Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb (1).

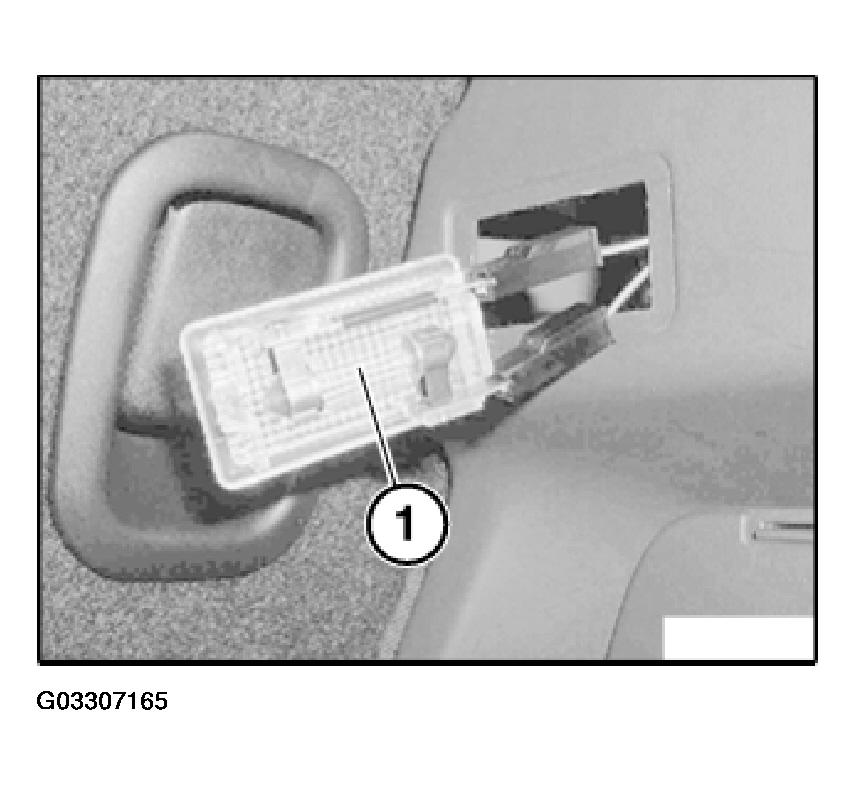

Fig 2: Locating Bulb For Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.

NOTE: For new bulb specification. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .
