63 99 437 Replacing light bulb for footwell light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Release footwell light.

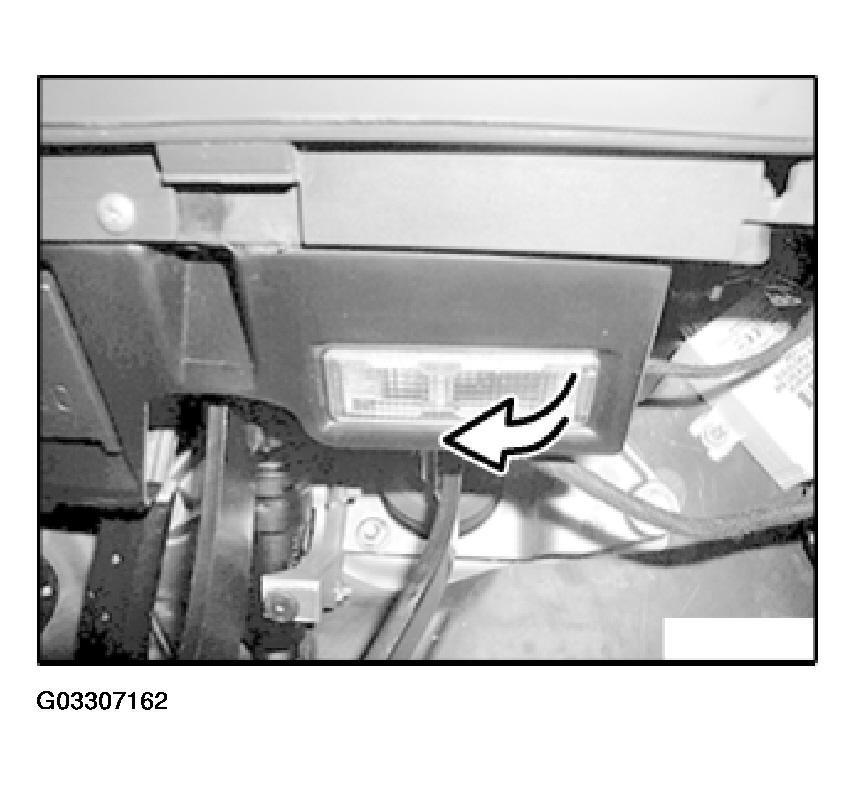

Fig 1: View Of Footwell Light
G03307162Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb for footwell light (1) from holder.

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

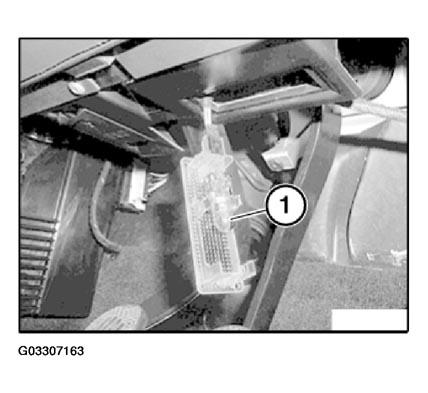

Fig 2: Identifying Bulb For Footwell Light
G03307163Courtesy of BMW OF NORTH AMERICA, INC.
