63 99 431 Replacing light bulb(s) for ceiling light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover from light module.

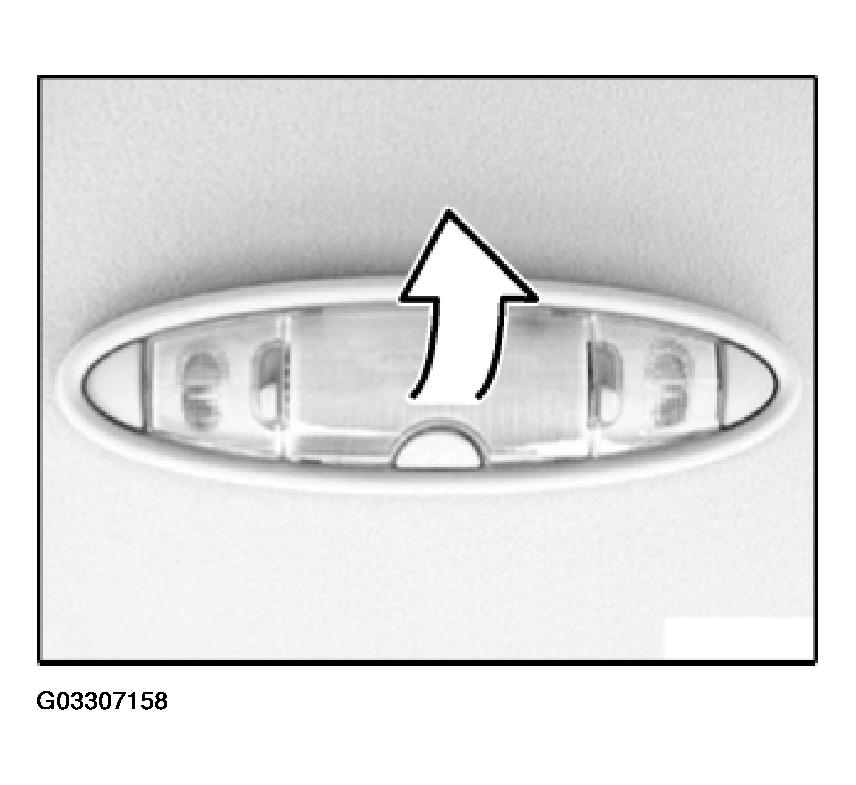

Fig 1: View Of Cover From Light Module

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb (1).

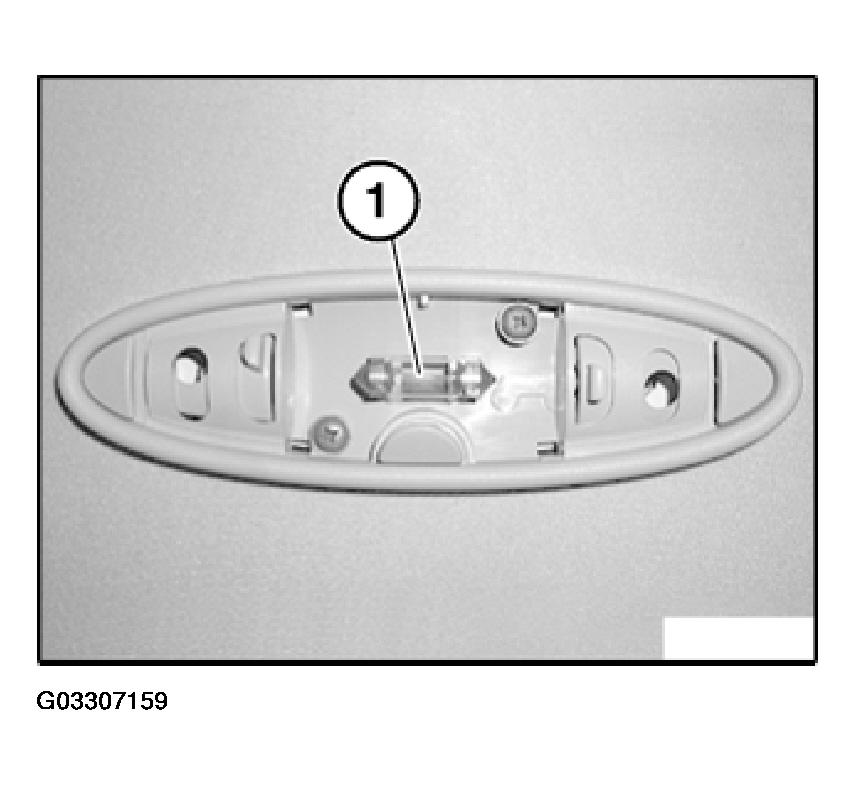

Fig 2: Identifying Bulb For Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

To replace map reading bulbs:

Remove screws (1) securing light module to headliner.

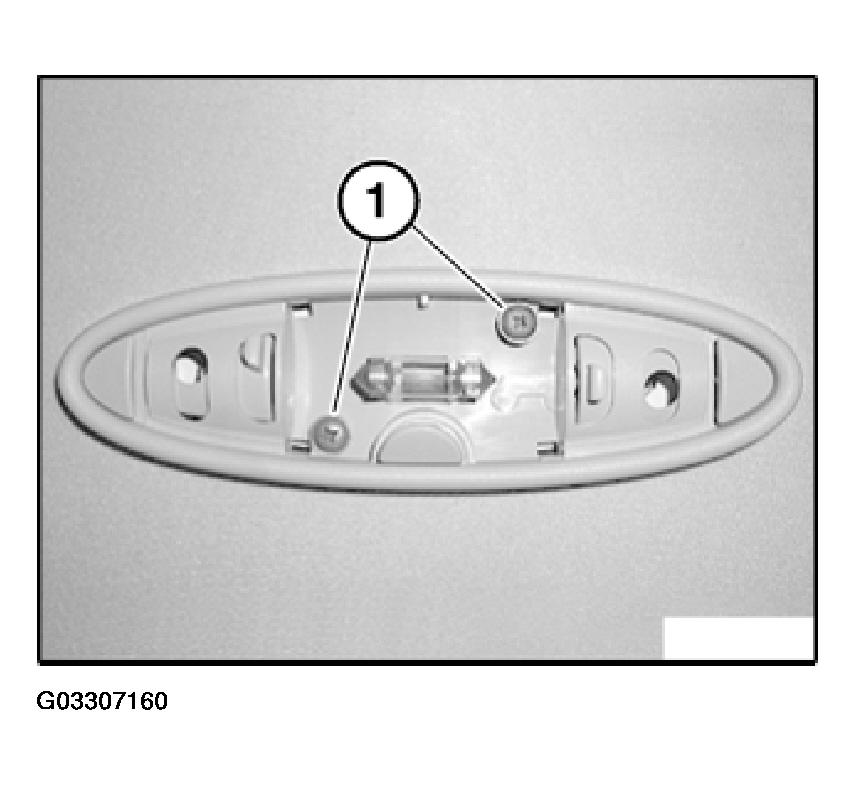

Fig 3: Locating Screws Securing Light Module To Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Twist out light bulb(s) (1).

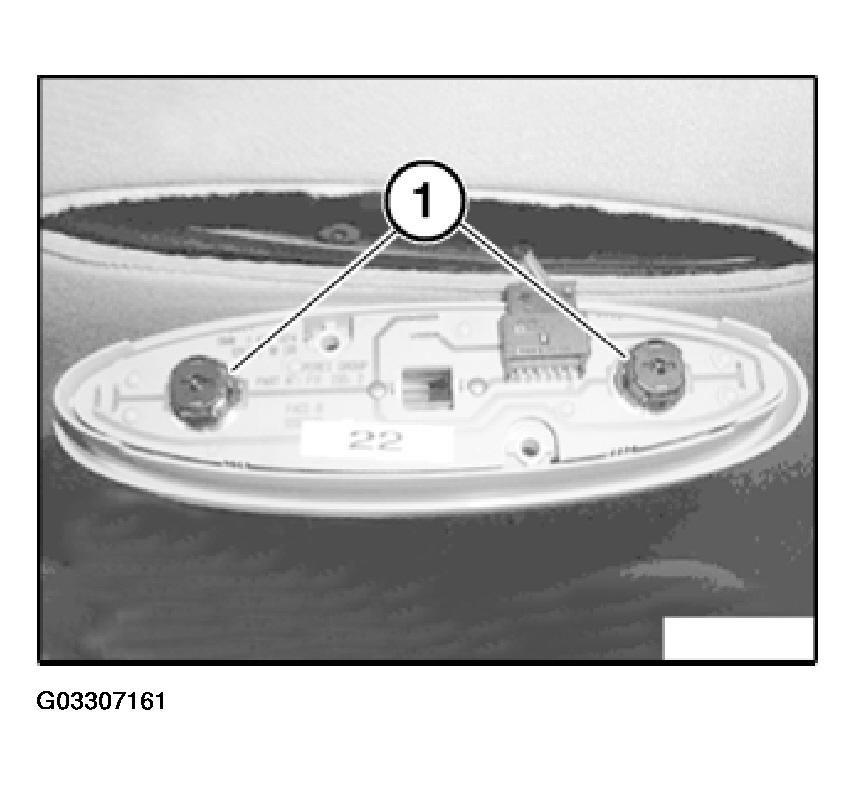

Fig 4: View Of Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.

NOTE: For new bulb specification. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .
