63 99 315 Replacing light bulb(s) for left or right rear light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

R50/R53:

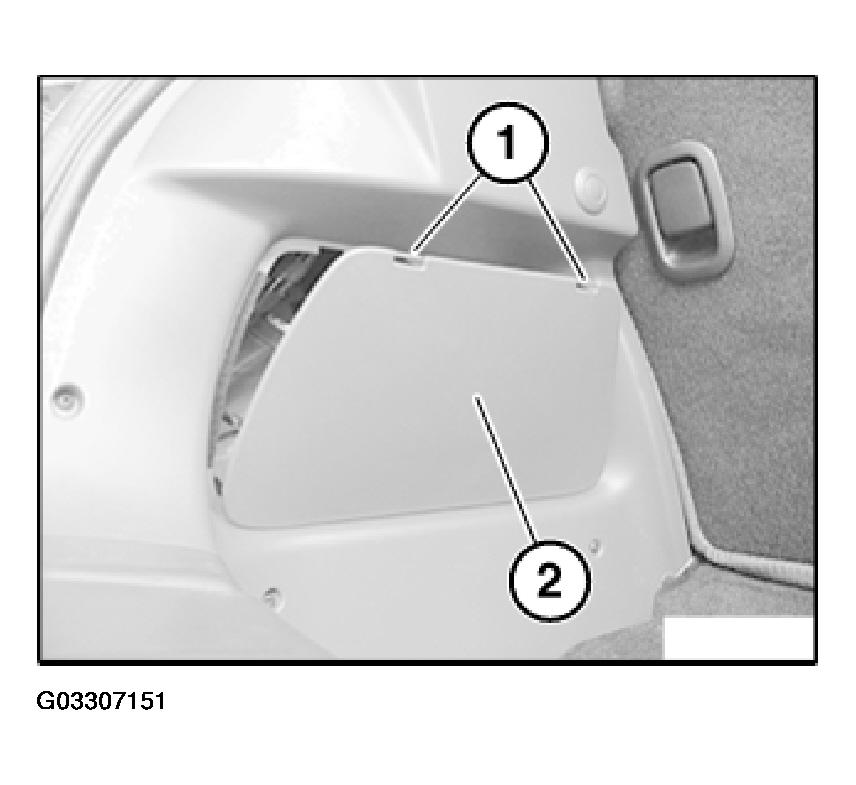

Unlock retainers (1) and remove cover (2) from luggage compartment wheel arch trim.

Fig 1: Removing Cover From Luggage Compartment Wheel Arch Trim

G03307151

Courtesy of BMW OF NORTH AMERICA, INC.

R52:

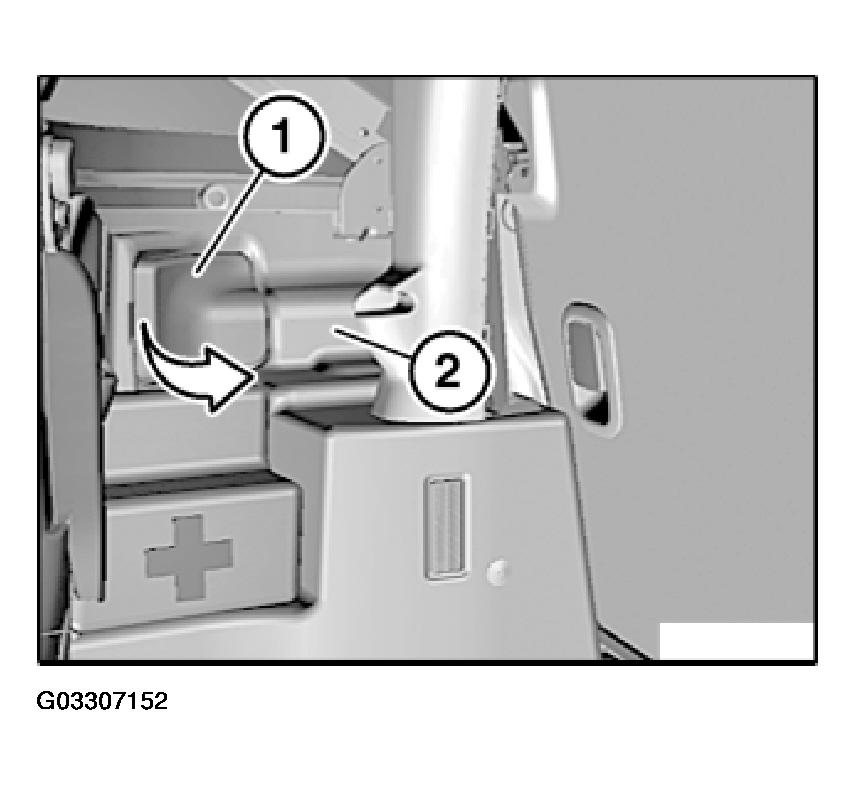

Tilt cover (1) in direction of arrow away from luggage compartment wheel arch trim (2) and remove.

Fig 2: Identifying Cover In Luggage Compartment

G03307152

Courtesy of BMW OF NORTH AMERICA, INC.

Up To 07/2004:

NOTE: Rear light (2) removed for purposes of clarity.

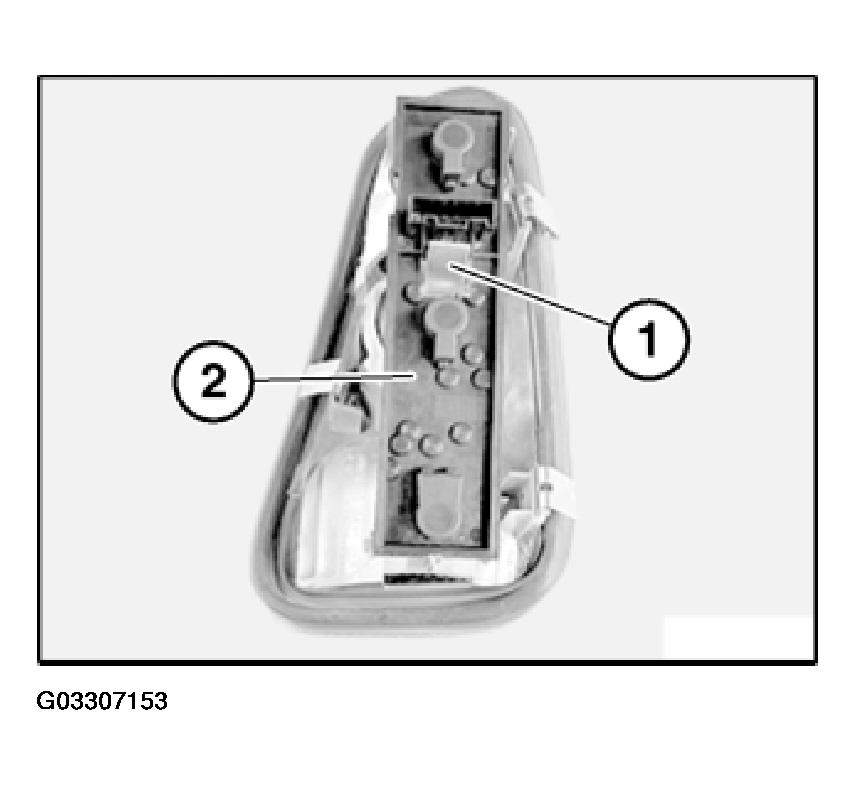

Unlock retaining tab (1) and remove socket housing for rear light (2) from rear light.

Fig 3: View Of Socket Housing

G03307153

Courtesy of BMW OF NORTH AMERICA, INC.

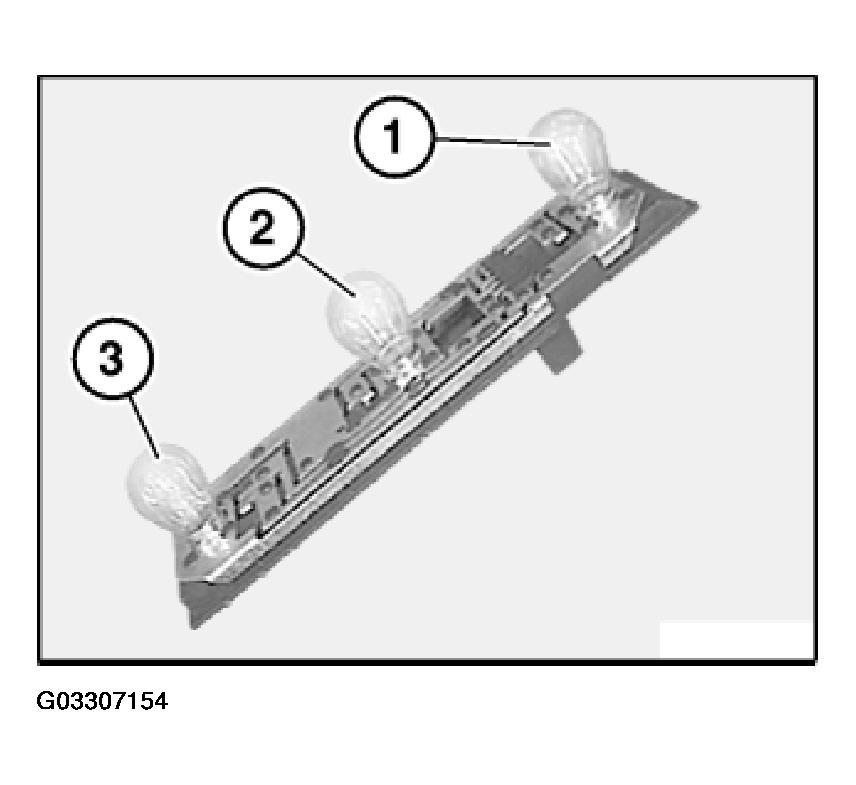

Turn faulty bulb(s) and pull out of socket housing for rear light.

NOTE:

Bulb, rear fog light.
Bulb, turn indicator light.
Bulb, rear light/brake light.

Fig 4: Identifying Different Rear Bulbs

G03307154

Courtesy of BMW OF NORTH AMERICA, INC.

From 07/2004:

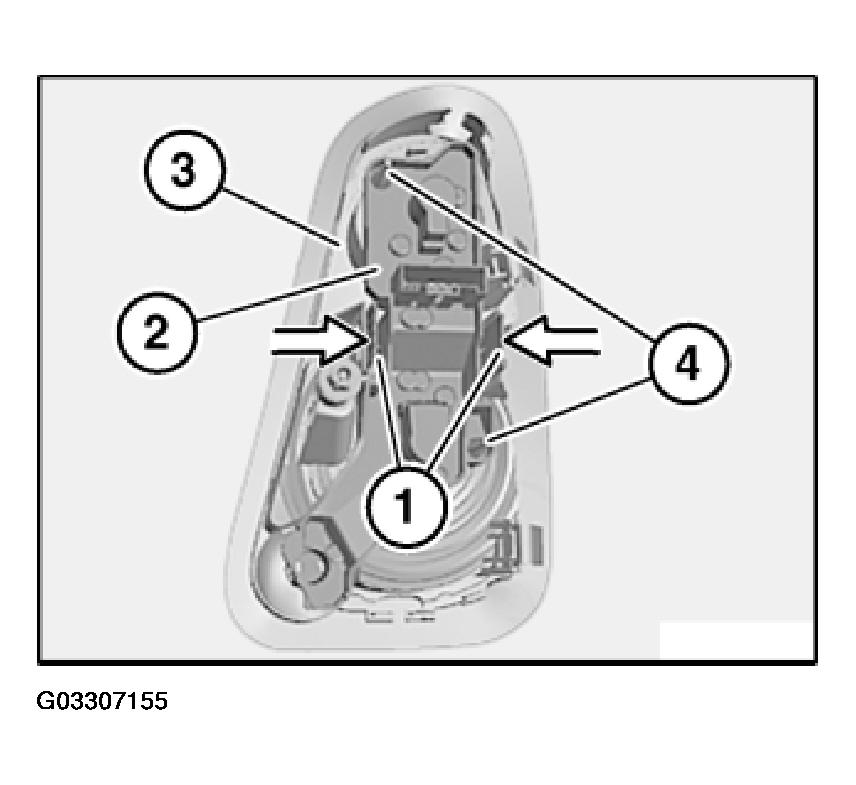

NOTE: Rear light (3) removed for purposes of clarity.

Unlock retaining tabs (1) in direction of arrow and remove socket housing for rear light (2) from rear light (3).

Installation:

Socket housing for rear light (2) is guided over pins (4).

Fig 5: Locating Retaining Tabs

G03307155

Courtesy of BMW OF NORTH AMERICA, INC.

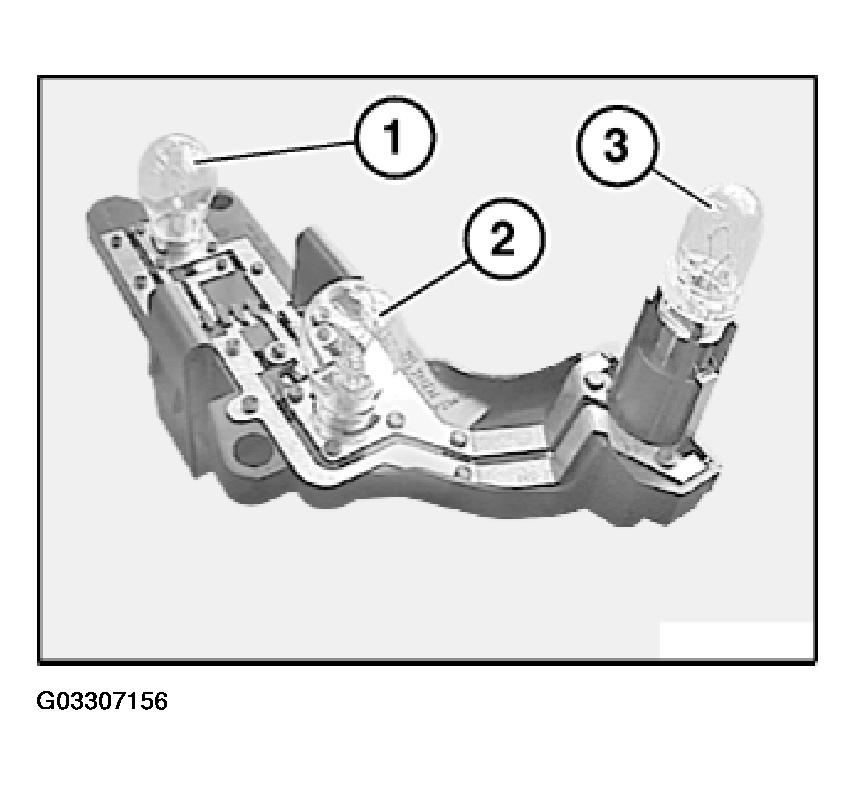

Turn faulty bulb(s) and pull out of socket housing for rear light.

Turn faulty reversing light bulb (3) and pull out of socket housing for rear light.

NOTE:

Bulb, turn indicator light.
Bulb, rear light/brake light.
Bulb, reversing light.

All Versions:

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

Fig 6: View Of Rear Light Bulb

G03307156

Courtesy of BMW OF NORTH AMERICA, INC.
