63 99 307 Replacing bulb for reversing light (up to 07/2004)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

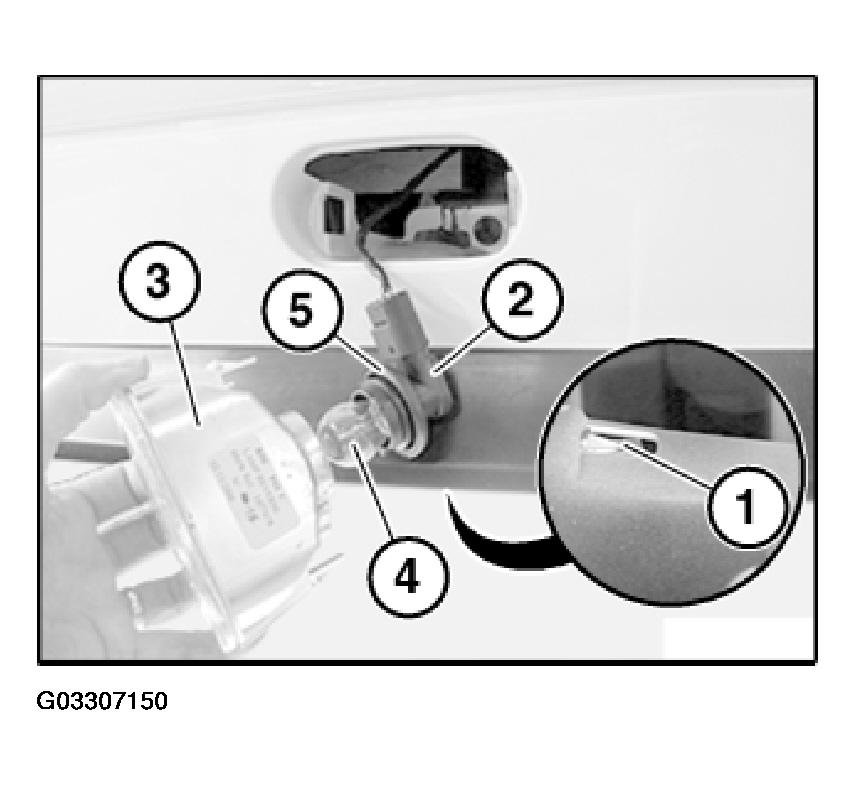

Release retaining clip (1) from reversing light (3) behind bumper.
Detach reversing light (3) from bumper trim.
Turn bulb holder (2) of reversing light (3) counterclockwise and remove.
Remove bulb for reversing light (4).
Installation:
Make sure sealing ring (5) is correctly seated in bulb holder (2).
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .
