63 99 295 Replacing bulb for left or right auxiliary turn signal light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Carefully lever out trim containing auxiliary turn signal light in front area (1) and slide towards front (2).

Remove trim containing auxiliary turn signal light from side wing.

Fig 1: Removing Auxiliary Turn Signal Light From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) counterclockwise and remove trim containing auxiliary turn signal light (2).

Remove bulb for auxiliary turn signal light (3) from bulb holder (1).

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .

Make sure sealing ring (4) is correctly seated.

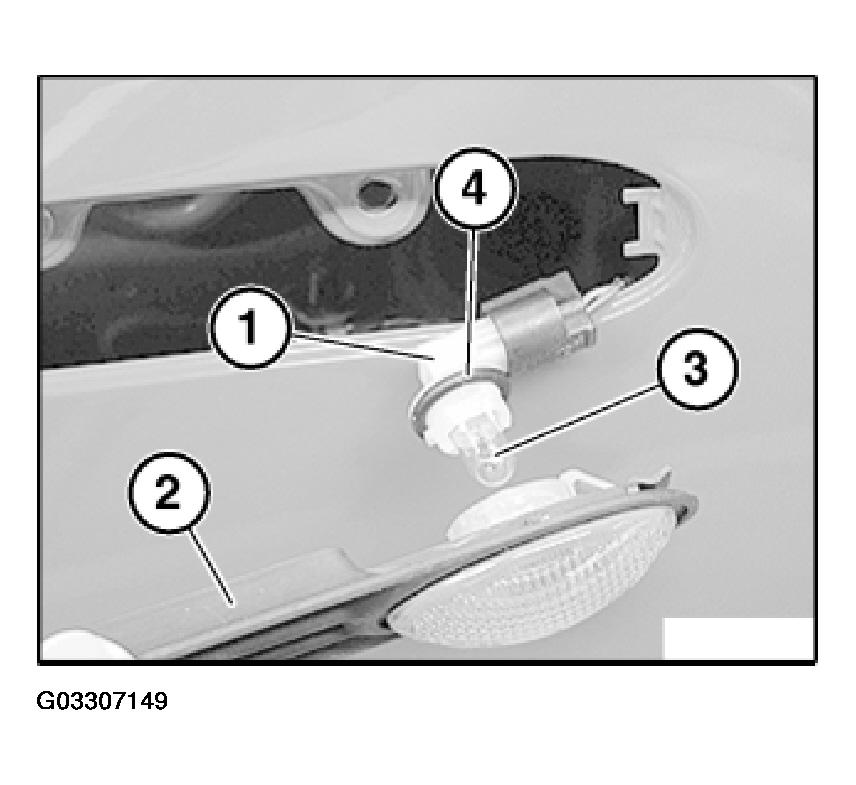

Fig 2: Identifying Bulb For Auxiliary Turn Signal Light

Courtesy of BMW OF NORTH AMERICA, INC.
